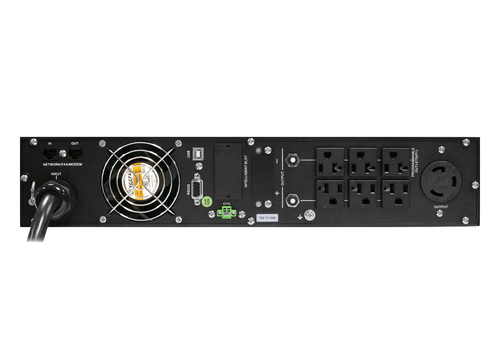

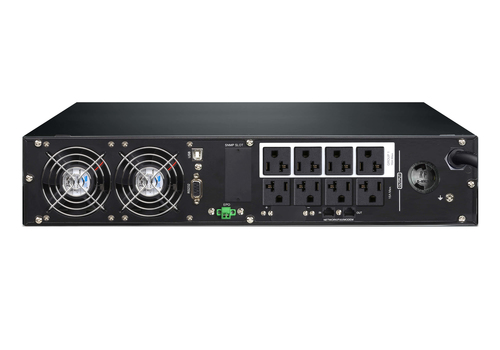

OL3000LV uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA
2880 W 9 AC outlet(s)
Model OL3000LVEAN 672792010026
40 specifications
- Battery9 Ah
- TypeRackmount/Tower
- Weight29.5 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- AC outlet typesNEMA L5-20R, NEMA L5-30R
Overview
- Battery
- 9 Ah
- Type
- Rackmount/Tower
- Weight
- 29.5 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- AC outlet types
- NEMA L5-20R, NEMA L5-30R
- Brand
- ATEN
- Model
- OL3000LV
- Part number
- OL3000LV
- EAN / UPC
- 672792010026, 4719264648038
- Also known as
- ATEN OL3000LV uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2880 W 9 AC outlet(s)
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2880 W |
| Waveform | Sine |
| Input operation voltage (min) | 80 V |
| Input operation voltage (max) | 150 V |
| Input frequency | 40 - 70 Hz |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Maximum current | 26.4 A |
| Input power factor | 0.99 |
| Output power factor | 0.96 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 4% |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | NEMA L5-20R, NEMA L5-30R |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 6 |
| Typical backup time at full load | 2.96 min |
| Typical backup time at half load | 10.1 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 630 mm |
| Depth | 438 mm |
| Height | 88 mm |
| Weight | 29.5 kg |
