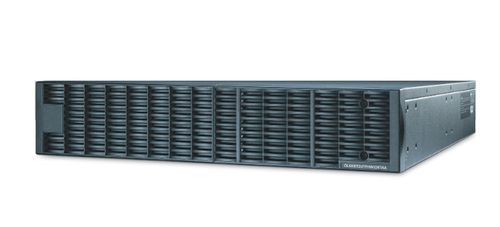

ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah

ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah

Model OL3000HV-AT-GEAN 4719264647994

64 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight27.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
27.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
ATEN
Model
OL3000HV-AT-G
Part number
OL3000HV-AT-G
EAN / UPC
4719264647994
Also known as
ATEN 230V 50/60Hz, 3000VA/3000W, 9Ah

Specifications

64 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power3000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Response time4 ms
Efficiency90%
Efficiency (ECO mode)96%
Crest factor3:1
ECO modeYes
Noise level50 dB

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity9 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Serial ports quantity1
Ethernet LAN (RJ-45) ports2

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage72 V
Number of batteries supported6
Number of battery cells6
Typical backup time at full load2.96 min
Typical backup time at half load10.1 min
Battery recharge time3 h
Charging current2 A
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cooling typeActive
Built-in fanYes
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)10 - 95%

Packaging content

Cables includedOutput power cable, Power load cable, RS-232, USB cable
ManualYes

Certificates

CertificationCE RoHS

Weight & dimensions

Width438 mm
Depth88 mm
Height630 mm
Weight27.6 kg

Packaging data

Package width88 mm
Package depth438 mm
Package height630 mm
Package weight34.8 kg

Logistics data

Harmonized System (HS) code85078000
Master (outer) case net weight27.6 kg
Master (outer) case width600 mm
Master (outer) case length760 mm
Master (outer) case height240 mm
Master (outer) case gross weight34.8 kg
Products per master (outer) case1 pc(s)
