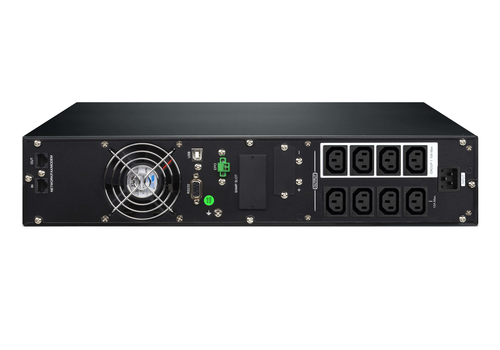

ATEN OL2000HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA
ATEN

OL2000HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA

1500 W 8 AC outlet(s)

Model OL2000HV

60 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight14.3 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
14.3 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
ATEN
Model
OL2000HV
Part number
OL2000HV
Also known as
ATEN OL2000HV uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

Specifications

60 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1.5 kVA
Output power1500 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output frequency50/60 Hz
Output voltage regulation1%
Maximum current7.2 A
Response time0 ms
Efficiency97%
Input power factor0.99
Output power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Noise level50 dB
Power protection featuresOver voltage
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial ports quantity1
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported3
Typical backup time at full load2.96 min
Typical backup time at half load10.3 min
Battery recharge time3 h
Hot-swap batteryYes
Cold startYes
Replacement battery cartridgeBC36V9AH

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length1.8 m
Cooling typeActive
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)10 - 95%

Packaging content

Rack mount kitYes
Cables includedInput power cable, RS-232, USB cable
ManualYes
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE

Weight & dimensions

Width438 mm
Depth410 mm
Height88 mm
Weight14.3 kg

Logistics data

Harmonized System (HS) code85078000
