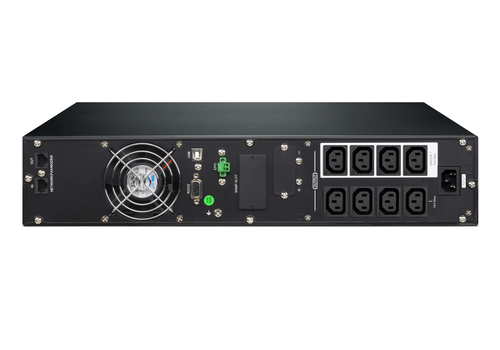

ATEN OL1000HV uninterruptible power supply (UPS) Double-conversion (Online)
ATEN

OL1000HV uninterruptible power supply (UPS) Double-conversion (Online)

1000 W 8 AC outlet(s)

Model OL1000HV

56 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight12.7 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
12.7 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
ATEN
Model
OL1000HV
Part number
OL1000HV
Also known as
ATEN OL1000HV uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s)

Specifications

56 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power1000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output frequency50/60 Hz
Output voltage regulation1%
Maximum current4.8 A
Response time0 ms
Efficiency97%
Input power factor0.99
Output power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Noise level50 dB

Ports & interfaces

AC outlet typesC14 coupler, IEC 320
Power plugC13 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported2
Typical backup time at full load2.95 min
Typical backup time at half load10.1 min
Charging current12 A
Hot-swap batteryYes
Cold startYes
Replacement battery cartridge1

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length1.8 m
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 90%
Storage relative humidity (H-H)10 - 95%

Packaging content

Rack mount kitYes
Cables includedPower load cable, RS-232, USB cable
ManualYes

Certificates

Compliance certificatesRoHS
CertificationCE

Weight & dimensions

Width880 mm
Depth438 mm
Height410 mm
Weight12.7 kg

Logistics data

Harmonized System (HS) code85078000
