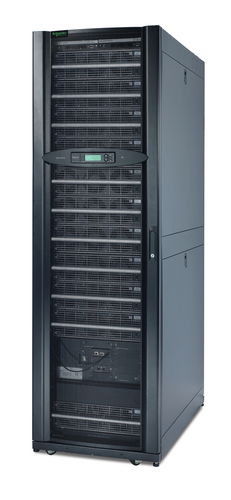

APC Symmetra PX 96kW, without Bypass, Distribution, or Batteries

APC Symmetra PX 96kW, without Bypass, Distribution, or Batteries

400V

Model SY96K96H-NBEAN 731304832461

47 specifications
  • Noise63 dB
  • TypeTower
  • Weight496 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 5-wire (3PH + N + G)
See all specifications

Overview

Noise
63 dB
Type
Tower
Weight
496 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 5-wire (3PH + N + G)
Brand
APC
Model
SY96K96H-NB
Part number
SY96K96H-NB
EAN / UPC
731304832461
Also known as
APC Symmetra PX 96kW, without Bypass, Distribution, or Batteries, 400V

Specifications

47 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity160 kVA
Output power160000 W
WaveformSine
Input operation voltage (min)340 V
Input operation voltage (max)477 V
Input frequency40/70 Hz
Output operation voltage (min)230 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Output frequency regulation+/- 3 Hz
Maximum current240 A
Number of output phases3
Efficiency95%
Input power factor0.99
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)5%
Noise level63 dB
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm

Ports & interfaces

AC outlet typesHard Wire 5-wire (3PH + N + G)
RS-232 ports1
SmartSlotYes

Design

Form factorTower
Product colourBlack
Rack capacity42U
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 15000 m

Packaging content

ManualYes

Certificates

CertificationEN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111

Weight & dimensions

Width600 mm
Depth1070 mm
Height1991 mm
Weight496 kg

Packaging data

Package width848 mm
Package depth1210 mm
Package height2140 mm
Package weight547 kg
