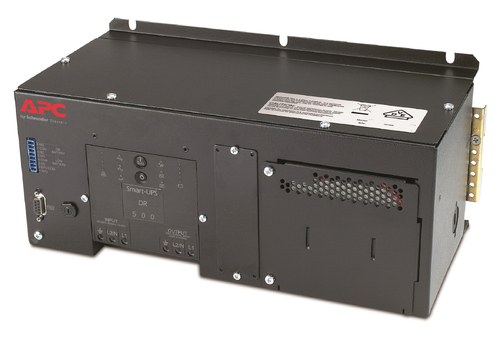

APC DIN Rail - Panel Mount UPS-without Battery-500VA
APC

DIN Rail - Panel Mount UPS-without Battery-500VA

230V

Model SUA500PDRI

36 specifications
  • Noise55 dB
  • TypeRackmount
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesHard Wire 5-wire (3PH + N + G)
  • Number of batteries supported1
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Colour
Black
UPS topology
Line-Interactive
AC outlet types
Hard Wire 5-wire (3PH + N + G)
Number of batteries supported
1
Brand
APC
Model
SUA500PDRI
Part number
SUA500PDRI
Also known as
APC DIN Rail - Panel Mount UPS-without Battery-500VA 230V

Specifications

36 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power325 W
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency47/53 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating540 J
Efficiency94%
Output voltage Total Harmonic Distortion (THD)5%
Noise level55 dB
Surge protectionYes

Ports & interfaces

AC outlet typesHard Wire 5-wire (3PH + N + G)
AC outlets quantity0 AC outlet(s)
RS-232 ports1

Battery

Number of batteries supported1

Design

Form factorRackmount
Product colourBlack

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

ManualYes

Certificates

Compliance certificatesRoHS
CertificationCE, VDE

Weight & dimensions

Width362 mm
Depth171 mm
Height148 mm

Packaging data

Package width297 mm
Package depth481 mm
Package height297 mm

Logistics data

Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)441.6
