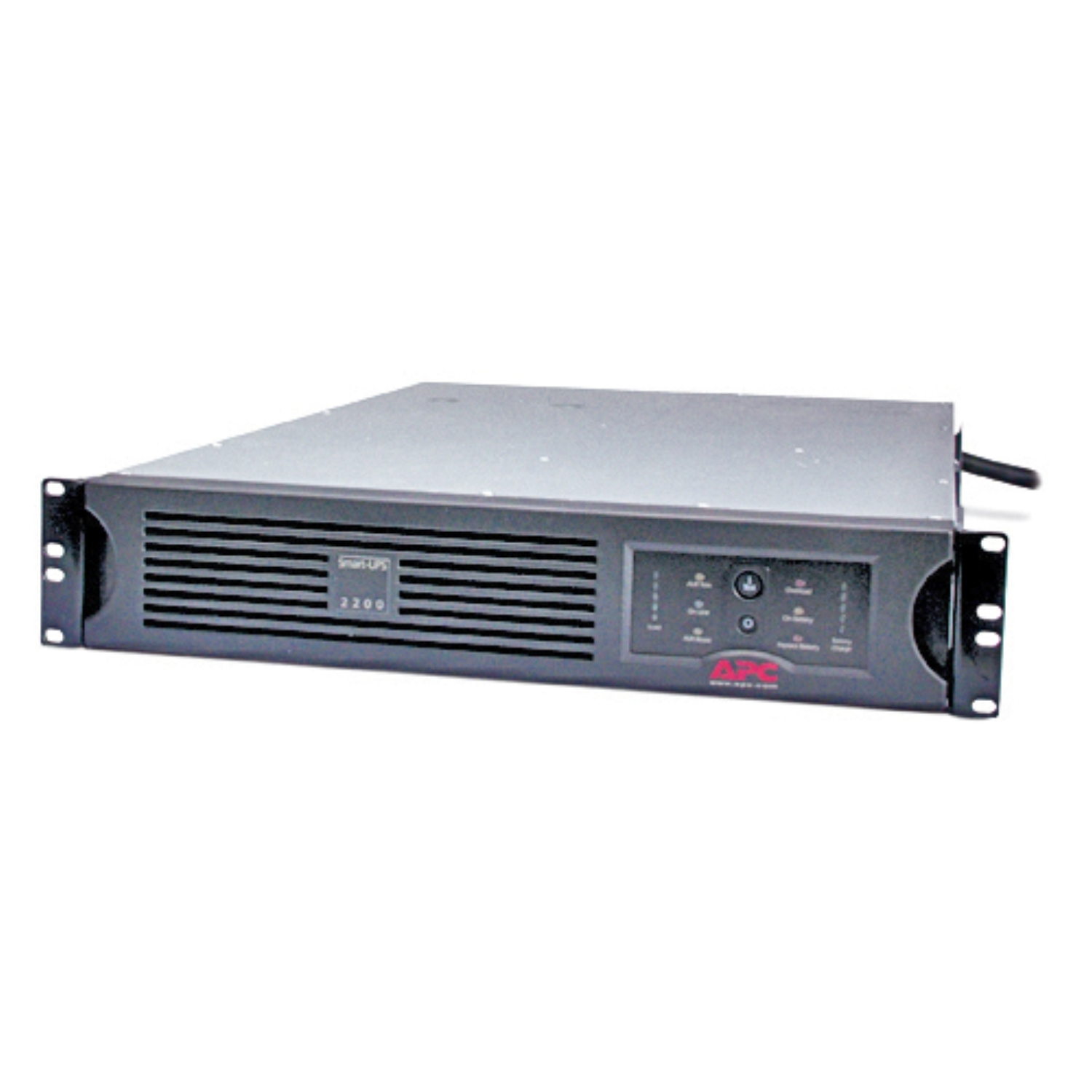

APC SUA2200R2X180 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA
APC

SUA2200R2X180 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA

1980 W 8 AC outlet(s)

Model SUA2200R2X180

43 specifications
  • Noise47 dB
  • TypeRackmount
  • Weight43.6 kg
  • ColourBlack, Grey
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5–15R, NEMA 5–20R
See all specifications

Overview

Noise
47 dB
Type
Rackmount
Weight
43.6 kg
Colour
Black, Grey
UPS topology
Line-Interactive
AC outlet types
NEMA 5–15R, NEMA 5–20R
Brand
APC
Model
SUA2200R2X180
Part number
SUA2200R2X180
Also known as
APC SUA2200R2X180 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 8 AC outlet(s)

Specifications

43 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)75 V
Input operation voltage (max)154 V
Input frequency50/60 Hz
Output frequency60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating480 J
Response time2 ms
Heat dissipation300 BTU/h
Output voltage Total Harmonic Distortion (THD)5%
Noise level47 dB

Ports & interfaces

AC outlet typesNEMA 5–15R, NEMA 5–20R
Power plugNEMA 5-20P
AC outlets quantity8 AC outlet(s)
USB portYes
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery life (max)5 year(s)
Battery recharge time3 h

Design

Form factorRackmount
Product colourBlack, Grey
Rack capacity2U
Cable length2.44 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-5 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 15240 m

Packaging content

ManualYes

Certificates

Compliance certificatesREACH, RoHS

Sustainability

Doesn't containMercury
Sustainability complianceYes

Weight & dimensions

Width483 mm
Depth660 mm
Height89 mm
Weight43.6 kg

Other features

Nominal input voltage120 V
Nominal output voltage120 V
