SRV6KIL uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA
6000 W
Model SRV6KILEAN 731304338024
50 specifications
- TypeTower
- Weight73 kg
- UPS topologyDouble-conversion (Online)
- AC outlet typesHard Wire 3-wire (1PH + N + G)
- Battery technologySealed Lead Acid (VRLA)
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Tower
- Weight
- 73 kg
- UPS topology
- Double-conversion (Online)
- AC outlet types
- Hard Wire 3-wire (1PH + N + G)
- Battery technology
- Sealed Lead Acid (VRLA)
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- SRV6KIL
- Part number
- SRV6KIL
- EAN / UPC
- 731304338024, 8592978279851
- Also known as
- APC SRV6KIL uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W
Specifications
50 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |

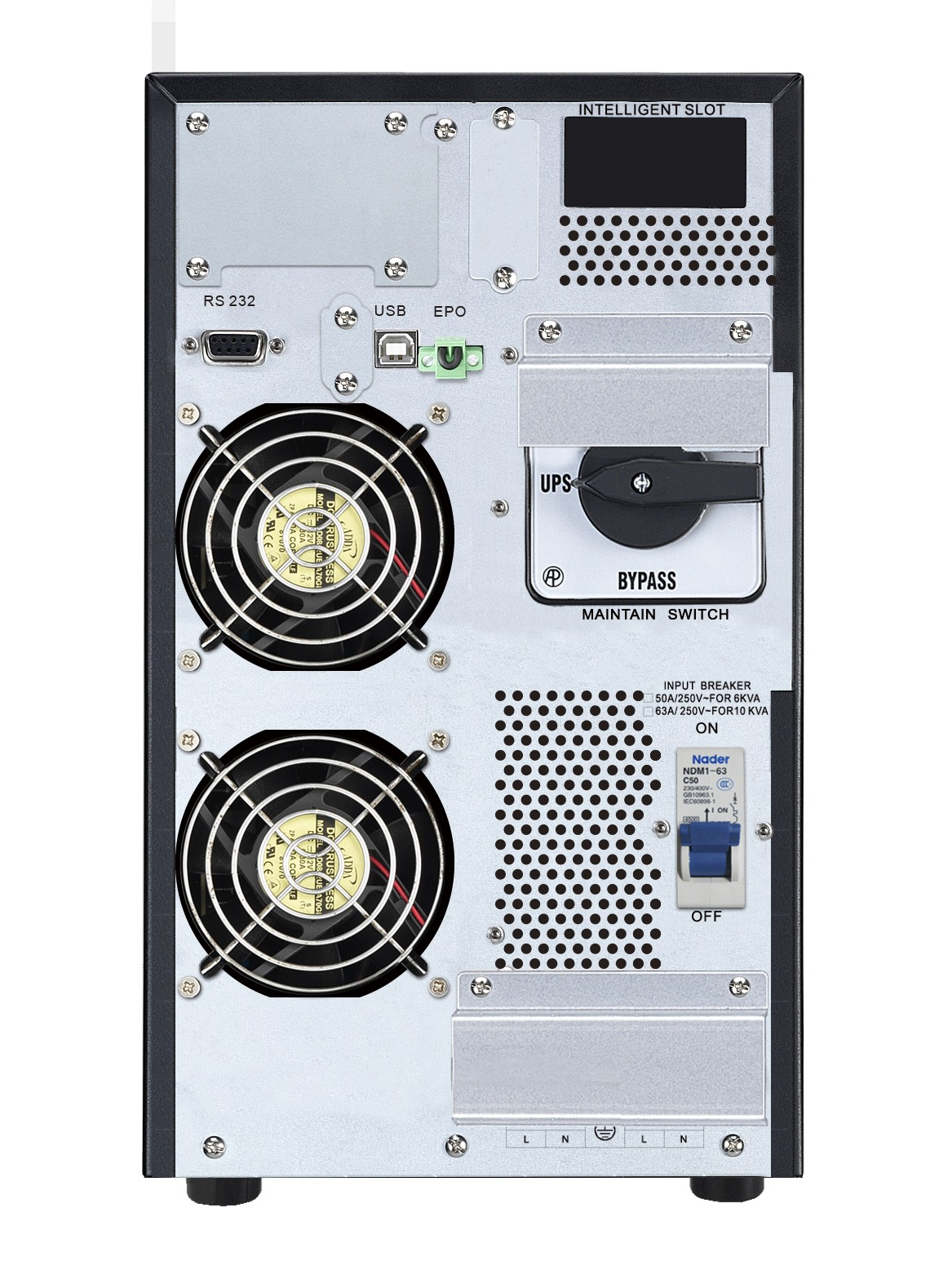

Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | Hard Wire 3-wire (1PH + N + G) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Automatic battery test | Yes |
| Battery weight | 79 kg |
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Cooling type | Active |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB cable |
| Management card included | No |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 485 mm |
| Height | 368 mm |
| Weight | 73 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85078000 |
Other features
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
