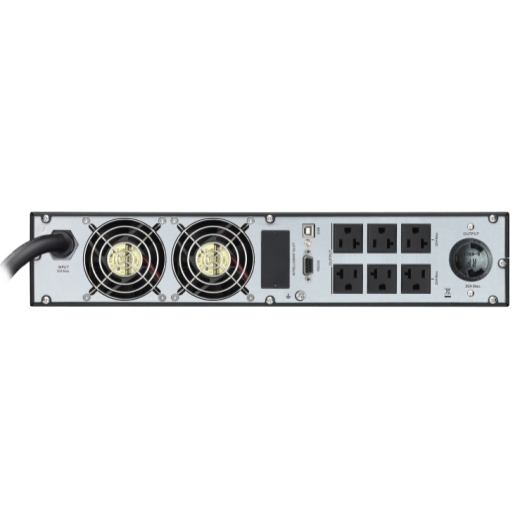

APC SRV3KRARK uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA
APC

SRV3KRARK uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA

2400 W 7 AC outlet(s)

Model SRV3KRARK

48 specifications
  • Noise50 dB
  • TypeRackmount
  • Weight27.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesNEMA 5–20R, NEMA L5-30R
See all specifications

Overview

Noise
50 dB
Type
Rackmount
Weight
27.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
NEMA 5–20R, NEMA L5-30R
Brand
APC
Model
SRV3KRARK
Part number
SRV3KRARK
Also known as
APC SRV3KRARK uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 7 AC outlet(s)

Specifications

48 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2400 W
WaveformSine
Input operation voltage (min)82 V
Input operation voltage (max)143 V
Input frequency40/70 Hz
Output operation voltage (min)110 V
Output operation voltage (max)115 V
Output frequency50/60 Hz
Surge energy rating600 J
Efficiency88%
Crest factor3:1
Noise level50 dB
Audible alarm(s)Yes
Audible alarm modesLow battery alarm, Overload alarm

Ports & interfaces

AC outlet typesNEMA 5–20R, NEMA L5-30R
Power plugNEMA L5-30P
AC outlets quantity7 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length1.5 m
Cooling typeActive
Built-in fanYes
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m

Packaging content

Rack mount kitYes

Certificates

CertificationCE, IEC 62040-1-1, IEC 62040-1-2

Weight & dimensions

Width437 mm
Depth632 mm
Height86 mm
Weight27.6 kg

Packaging data

Package width569 mm
Package depth795 mm
Package height229 mm
Package weight29 kg
