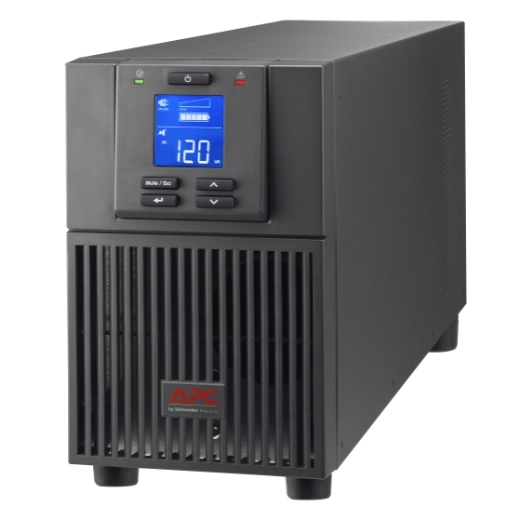

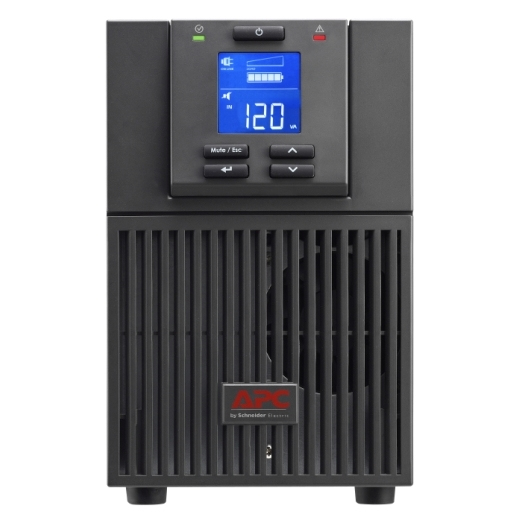

SRV2KA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA
1600 W 4 AC outlet(s)
Model SRV2KA
46 specifications
- Battery304 Ah
- Noise50 dB
- TypeMini Tower
- Weight17 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
Overview
- Battery
- 304 Ah
- Noise
- 50 dB
- Type
- Mini Tower
- Weight
- 17 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Brand
- APC
- Model
- SRV2KA
- Part number
- SRV2KA
- Also known as
- APC SRV2KA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1600 W 4 AC outlet(s)
Specifications
46 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 kVA |
| Output power | 1600 W |
| Waveform | Sine |
| Input operation voltage (min) | 85 V |
| Input operation voltage (max) | 150 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 115 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 3 Hz |
| Surge energy rating | 600 J |
| Efficiency | 88% |
| ECO mode | Yes |
| Noise level | 50 dB |
| Surge protection | Yes |

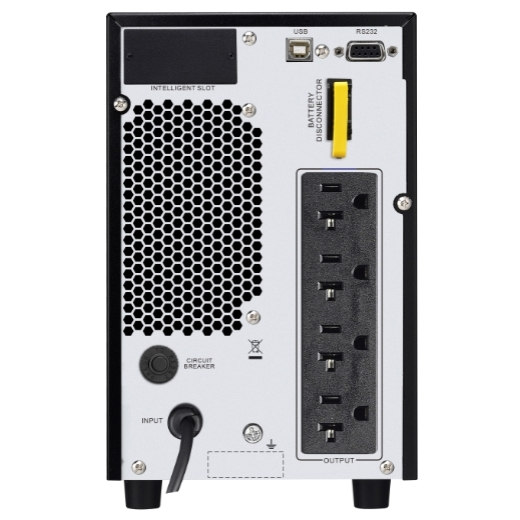

Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | NEMA 5–20R |
| Power plug | NEMA 5-50P |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| SmartSlot | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 304 Ah |
| Battery recharge time | 4 h |
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Product colour | Black |
| Cable length | 1.5 m |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Input power cable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 400 mm |
| Height | 238 mm |
| Weight | 17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 355 mm |
| Package depth | 235 mm |
| Package height | 525 mm |
| Package weight | 18.9 kg |
