APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA
APC

SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

800 W 3 AC outlet(s)

Model SRV1KIEAN 731304339205

51 specifications
  • Battery9 Ah
  • TypeMini Tower
  • Weight9.3 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesC13 coupler
See all specifications

Overview

Battery
9 Ah
Type
Mini Tower
Weight
9.3 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
C13 coupler
Brand
APC
Model
SRV1KI
Part number
SRV1KI
EAN / UPC
731304339205
Also known as
APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)

Specifications

51 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power800 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Efficiency88%
Crest factor3:1
Emergency Power Off (EPO)No
Socket circuit breakerYes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity3 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Battery

Battery capacity9 Ah
Battery capacity24 VAh
Battery voltage12 V
Number of batteries supported1

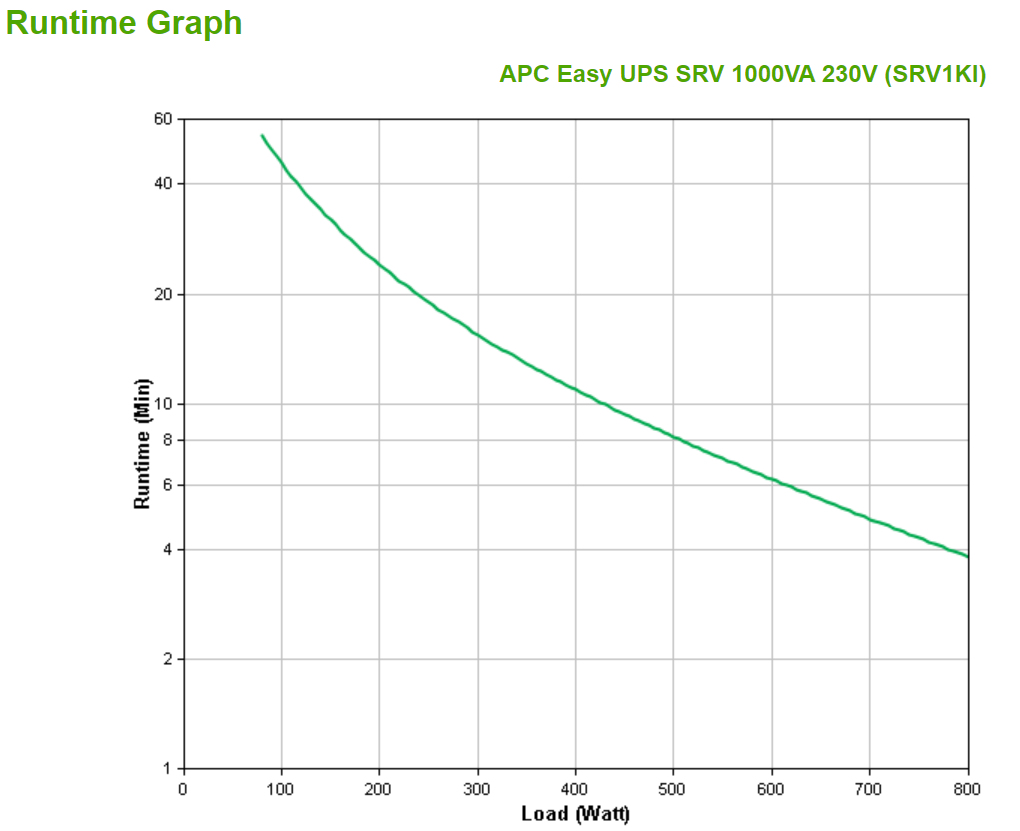

Typical backup time at full load4 min
Typical backup time at half load10 min

Design

Form factorMini Tower
Product colourBlack
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Cables includedInput power cable, Output power cable, RS-232, USB cable
ManualYes

Weight & dimensions

Width145 mm
Depth288 mm
Height223 mm
Weight9.3 kg

Packaging data

Software CDYes
Warranty cardYes
Package width235 mm
Package depth365 mm
Package height330 mm
Package weight10.6 kg
Package volume10600 cm³
Package typeBox

Logistics data

Harmonized System (HS) code85078000
