APC SRV10KIL uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA
APC

SRV10KIL uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

10000 W

Model SRV10KILEAN 731304337942

45 specifications
  • TypeTower
  • Weight76.5 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHard Wire 3-wire (1PH + N + G)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Tower
Weight
76.5 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
Hard Wire 3-wire (1PH + N + G)
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
SRV10KIL
Part number
SRV10KIL
EAN / UPC
731304337942, 8592978368470
Also known as
APC SRV10KIL uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Specifications

45 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating600 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Surge protectionYes
Power protection featuresOverload
Audible alarm(s)Yes

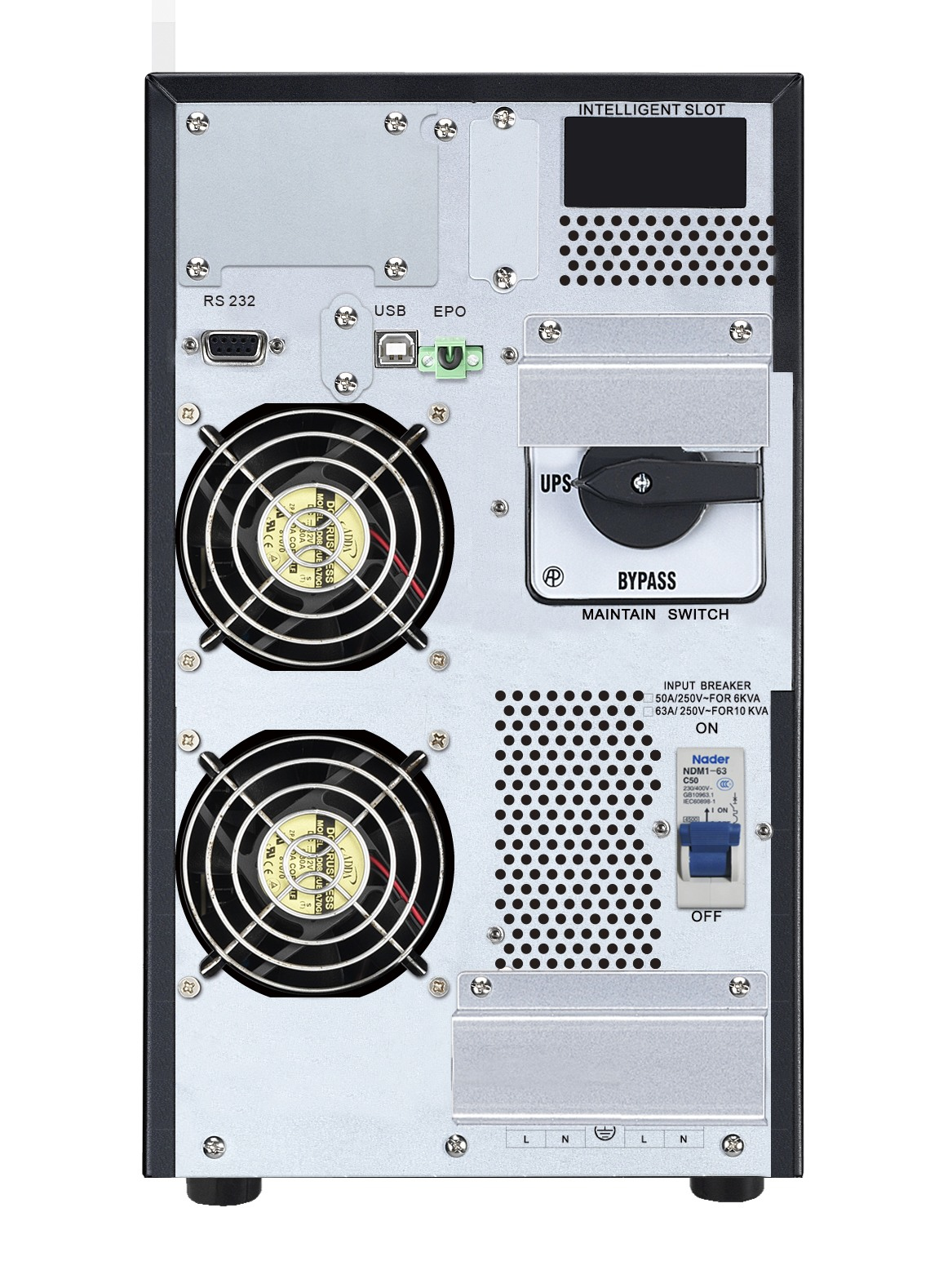

Ports & interfaces

AC outlet typesHard Wire 3-wire (1PH + N + G)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Emergency Power Off (EPO) connectorYes
SmartSlotYes
SmartConnect portNo

Design

Form factorTower
Product colourBlack
Cooling typeActive
Built-in fanYes

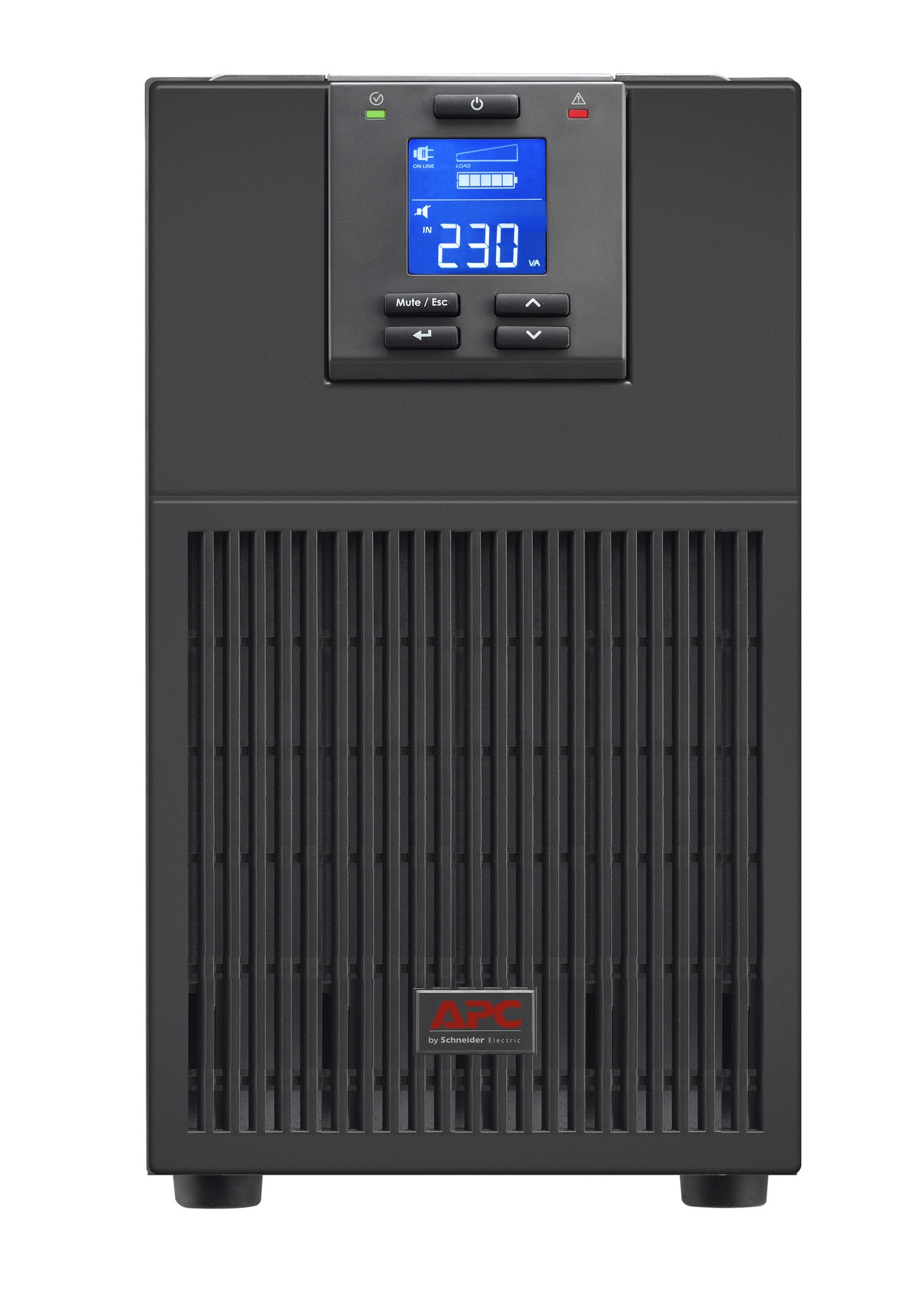

Display typeLCD
LED indicatorsPower, Status

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 14763 m

Packaging content

Cables includedUSB cable
Management card includedNo
ManualYes

Certificates

Compliance certificatesRoHS
CertificationCE, IEC 62040-1-1, IEC 62040-1-2

Weight & dimensions

Width380 mm
Depth485 mm
Height368 mm
Weight76.5 kg

Packaging data

Package weight82.5 kg

Logistics data

Harmonized System (HS) code85078000
