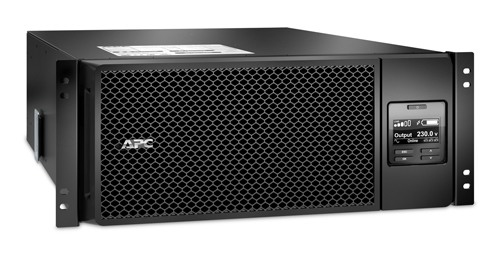

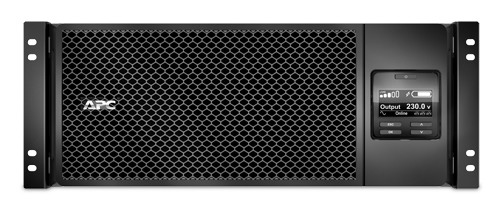

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U

230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

Model SRT6KRMXLIMEAN 731304320838

59 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight60 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Power plugTerminal
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
60 kg
Colour
Black
UPS topology
Double-conversion (Online)
Power plug
Terminal
Brand
APC
Model
SRT6KRMXLIM
Part number
SRT6KRMXLIM
EAN / UPC
731304320838
Also known as
APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

Specifications

59 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity6 kVA
Output power6000 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)275 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating480 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes
Temperature voltage compensationYes

Ports & interfaces

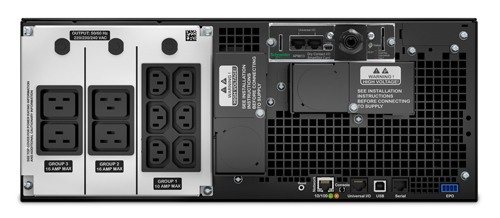

AC outlet typesC13 coupler, C19 coupler, IEC Jumpers
Power plugTerminal
AC outlets quantity13 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Ethernet LAN (RJ-45) ports1
Cabling technology10/100Base-T
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Number of batteries supported1
Battery life (max)5 year(s)
Battery recharge time1 h
Hot-swap batteryYes
Automatic battery testYes

Design

Form factorRackmount
Product colourBlack
Rack capacity4U

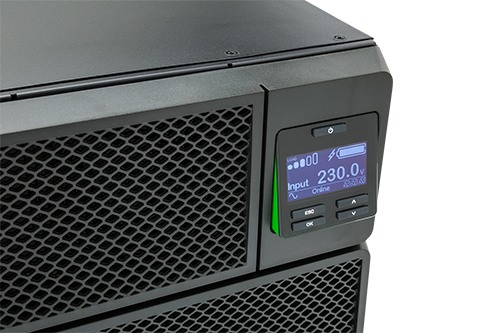

Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, RCM, VDE, REACH

Weight & dimensions

Width432 mm
Depth719 mm
Height174 mm
Weight60 kg

Packaging data

Package width610 mm
Package depth960 mm
Package height370 mm
Package volume67000 cm³

Logistics data

Products per pallet6 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)55428.62
