APC Smart-UPS 750VA
APC

Smart-UPS 750VA

120V SHIPBOARD

Model SMT750X93EAN 731304433637

66 specifications
  • Battery172 Ah
  • Noise41 dB
  • TypeTower
  • Weight12.5 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
172 Ah
Noise
41 dB
Type
Tower
Weight
12.5 kg
Colour
Black
UPS topology
Line-Interactive
Brand
APC
Model
SMT750X93
Part number
SMT750X93
EAN / UPC
731304433637
Also known as
APC Smart-UPS 750VA 120V SHIPBOARD

Specifications

66 specifications in 13 groups

Features

UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power500 W
WaveformSine
Input operation voltage (min)82 V
Input operation voltage (max)144 V
Input frequency50/60 Hz
Output operation voltage (max)120 V
Output frequency50/60 Hz
Surge energy rating593 J
Response time6 ms
Number of input phases1
Number of output phases1
Single-phase input voltage supported120 V
Noise level41 dB
Audible alarm(s)Yes

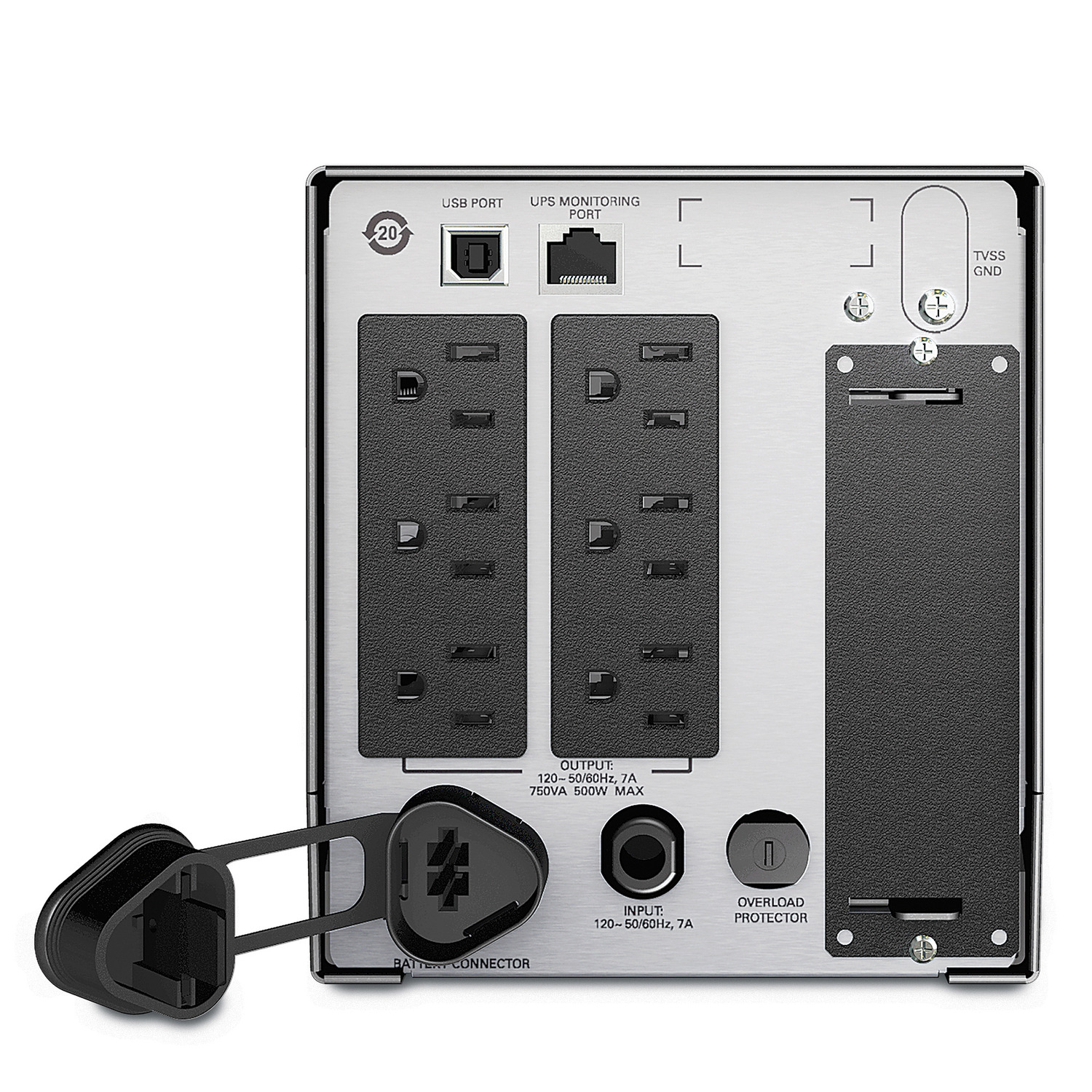

Ports & interfaces

AC outlet typesNEMA 5-15R
Power plugNEMA 5-15P
AC outlets quantity6 AC outlet(s)
USB portYes
USB port typeUSB Type-B

Battery

Battery replacement accessibilityEnd-user
Battery technologySealed Lead Acid (VRLA)
Battery capacity172 Ah
Typical backup time at full load5 min
Typical backup time at half load15 min
Battery life (max)5 year(s)
Battery recharge time3 h

Design

Form factorTower
Product colourBlack
Control typeButtons
Display typeLED
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

ManualYes

Certificates

Compliance certificatesRoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) complianceYes
CertificationCSA C22.2 No 107.1

Sustainability

Doesn't containMercury

Technical details

Packaging recycled materialsRecycled cardboard
Preferred mounting positionno preference
Packaging without single use plasticNo
SCIP numberb2b22a56-41f2-497e-9ea6-cf093b3b8bd3
Sustainable packagingNo
Take-back systemNo

Weight & dimensions

Width138 mm
Depth369 mm
Height161 mm
Weight12.5 kg

Packaging data

Package width499 mm
Package depth278 mm
Package height301 mm
Package weight14 kg

Logistics data

Customs product code (TARIC)8504409590
Total carbon footprint (kg of CO2e)548.4165222831
Country of originUnited States
Warranty period3 year(s)

Other features

Input connection typeNEMA 5-15P
Mountingfront
Output connection type6 NEMA5-15R
Output voltage120 V
