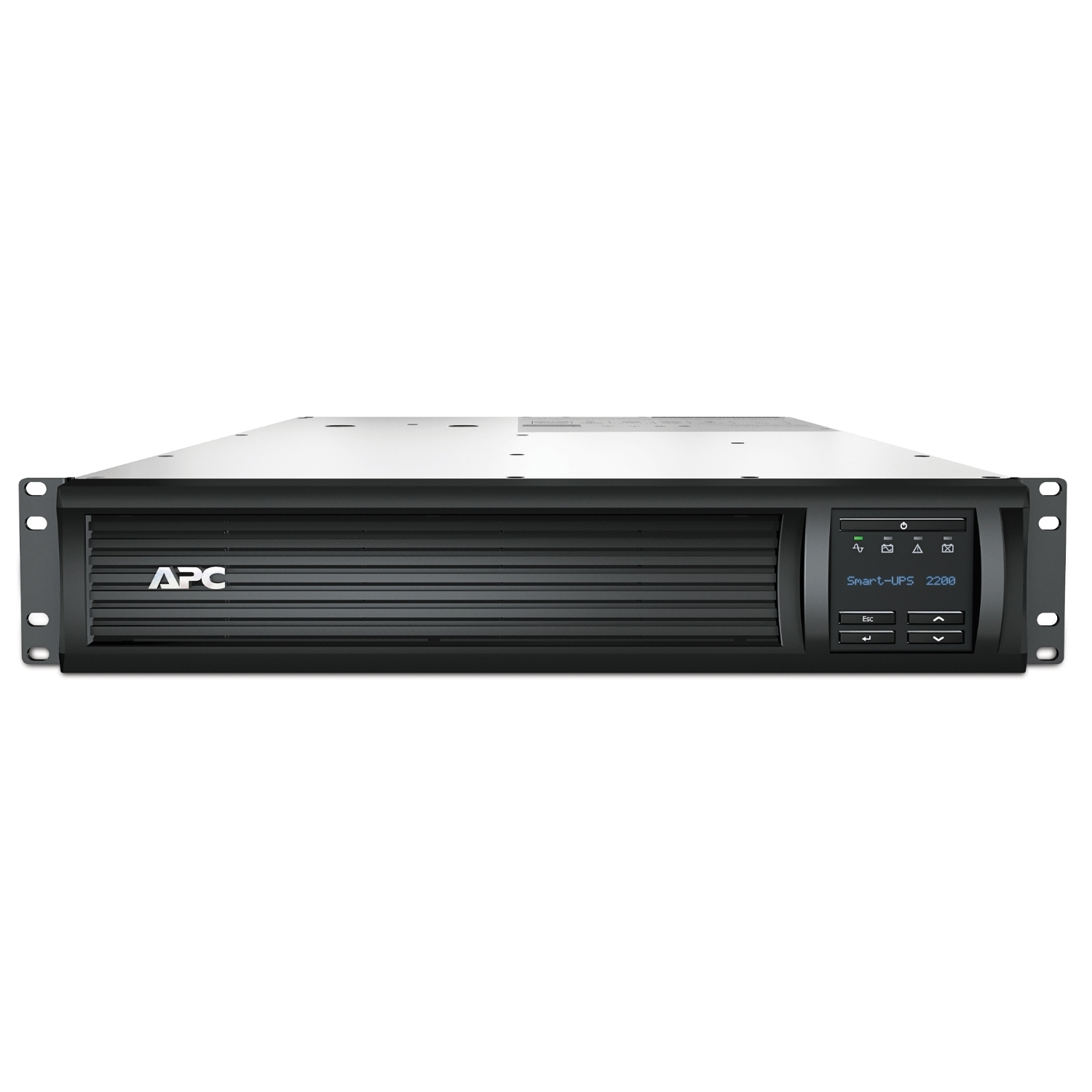

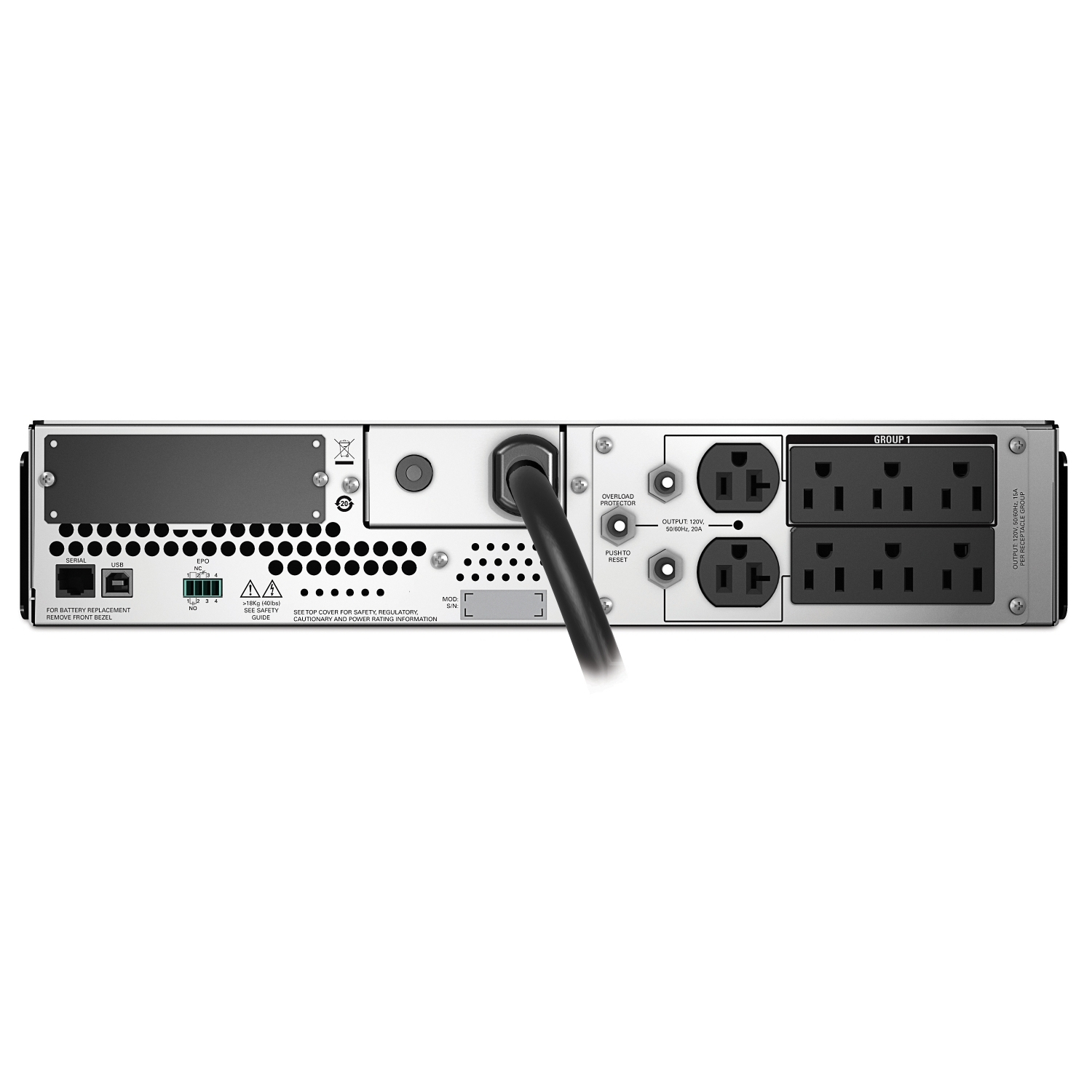

APC Smart-UPS, Line Interactive, 2200VA, Rackmount
APC

Smart-UPS, Line Interactive, 2200VA, Rackmount

120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD

Model SMT2200R2X167EAN 731304423393

60 specifications
  • Battery480 Ah
  • Noise55 dB
  • TypeRackmount
  • Weight42.4 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
480 Ah
Noise
55 dB
Type
Rackmount
Weight
42.4 kg
Colour
Black
UPS topology
Line-Interactive
Brand
APC
Model
SMT2200R2X167
Part number
SMT2200R2X167
EAN / UPC
731304423393
Also known as
APC Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD

Specifications

60 specifications in 13 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)290 V
Input frequency50/60 Hz
Output operation voltage (max)120 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating1366 J
Response time6 ms
Noise level55 dB
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesNEMA 5-15R
Power plugNEMA 5-15P
AC outlets quantity10 AC outlet(s)

Battery

Battery replacement accessibilityEnd-user
Battery technologySealed Lead Acid (VRLA)
Battery capacity480 Ah
Battery life (max)5 year(s)
Battery recharge time4 h

Design

Form factorRackmount
Product colourBlack
Rack capacity0U
Control typeButtons
Display typeLED
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

ManualYes

Certificates

Compliance certificatesRoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) complianceYes
CertificationCSA

Sustainability

Doesn't containMercury

Technical details

Packaging recycled materialsRecycled cardboard
Preferred mounting positionno preference
Packaging without single use plasticNo
Sustainable packagingNo
Take-back systemNo

Weight & dimensions

Width432 mm
Depth683 mm
Height86 mm
Weight42.4 kg

Packaging data

Package width980 mm
Package depth600 mm
Package height254 mm
Package weight49.7 kg

Logistics data

Customs product code (TARIC)8504409590
Total carbon footprint (kg of CO2e)3393.1684629737933
Warranty period3 year(s)

Other features

Input connection typeNEMA 5-15P; Schuko CEE 7 / EU1-16P; BS1363A British; CEI 23-16 Italian
Mountingfront
Nominal input voltage120 V
Output connection type10 NEMA5-15R
Output voltage120 V
