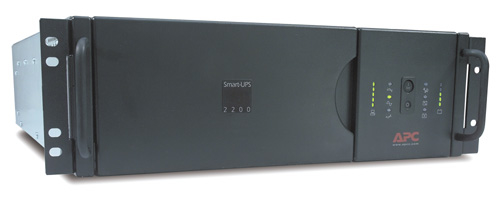

APC Smart-UPS 2200VA RM 3U 230V

APC Smart-UPS 2200VA RM 3U 230V

Model Smart-UPS 2200VA RM 3U 230VPart no. SU2200RMI3U

24 specifications
  • ConnectivityDB-9 RS-232, SmartSlot
  • Weight47 kg
  • ColourBeige
  • Output power capacity2.2 kVA
  • Typical backup time at full load6.8 min
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
DB-9 RS-232, SmartSlot
Weight
47 kg
Colour
Beige
Output power capacity
2.2 kVA
Typical backup time at full load
6.8 min
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
Smart-UPS 2200VA RM 3U 230V
Part number
SU2200RMI3U
Also known as
APC Smart-UPS 2200VA RM 3U 230V uninterruptible power supply (UPS) 2.2 kVA 1600 W

Specifications

24 specifications in 6 groups

Features

Output power capacity2.2 kVA
Output power1600 W
Surge energy rating480 J
Emergency Power Off (EPO)Yes

Battery

Typical backup time at full load6.8 min
Typical backup time at half load24.5 min
Replacement battery cartridgeRBC12

Design

Product colourBeige

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Weight47 kg

Other features

Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
InterfaceDB-9 RS-232, SmartSlot

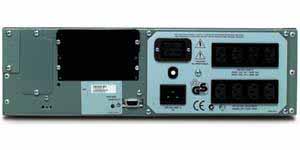

Output connections(8) IEC 320 C13 (1) IEC 320 C19 (3) IEC Jumpers
Input connection typeIEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Dimensions (WxDxH)480 x 640 x 130 mm
Filtering description0.3% IEEE/UL 1449
Nominal input voltage230 V
Nominal output voltage230 V
Output voltage noteConfigurable for 220: 230 or 240 nominal output voltage
I/O portsAvailable Smart Slot Interface Quantity - 1
