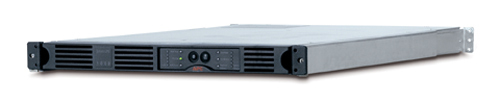

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1 kVA
APC

Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1 kVA

640 W 4 AC outlet(s)

Model Smart-UPSPart no. SMT3000R2I-6WEAN 9865745932334

57 specifications
  • Battery216 VAh
  • ConnectivityDB-9 RS-232, SmartSlot, USB
  • Noise55 dB
  • TypeRackmount
  • Weight21.8 kg
  • ColourBlack
See all specifications

Overview

Battery
216 VAh
Connectivity
DB-9 RS-232, SmartSlot, USB
Noise
55 dB
Type
Rackmount
Weight
21.8 kg
Colour
Black
Brand
APC
Model
Smart-UPS
Part numbers
SMT3000R2I-6W, SUA1000RMI1U, SC420I, SC620I, SC450RMI1U, SRT8KRMXLT-5KTF +34 more
EAN / UPC
9865745932334, 731304123897, 5051749242263, 731304222613 +56 more
Also known as
APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1 kVA 640 W 4 AC outlet(s)

Specifications

57 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity1 kVA
Output power640 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Surge energy rating480 J
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
Number of output IEC jumpers2
USB portYes
Serial interfaceYes
Serial interface typeRS-232
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity216 VAh
Typical backup time at full load5.4 min
Typical backup time at half load14.5 min
Battery life (max)6 year(s)
Battery recharge time2 h
Hot-swap batteryYes
Automatic battery testYes

Design

Form factorRackmount
Product colourBlack
Rack capacity1U
LED indicatorsBattery replacement

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedRS-232, USB cable
ManualYes

Certificates

Compliance certificatesRoHS
CertificationC-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI

Weight & dimensions

Width432 mm
Depth660 mm
Height44 mm
Weight21.8 kg

Packaging data

Software CDYes
Package width559 mm
Package depth775 mm
Package height191 mm
Package weight25.4 kg

Logistics data

Products per pallet8 pc(s)
Harmonized System (HS) code85078000

Other features

InterfaceDB-9 RS-232, SmartSlot, USB
Input connection typeIEC-320 C14
Nominal input voltage230 V
Nominal output voltage230 V
