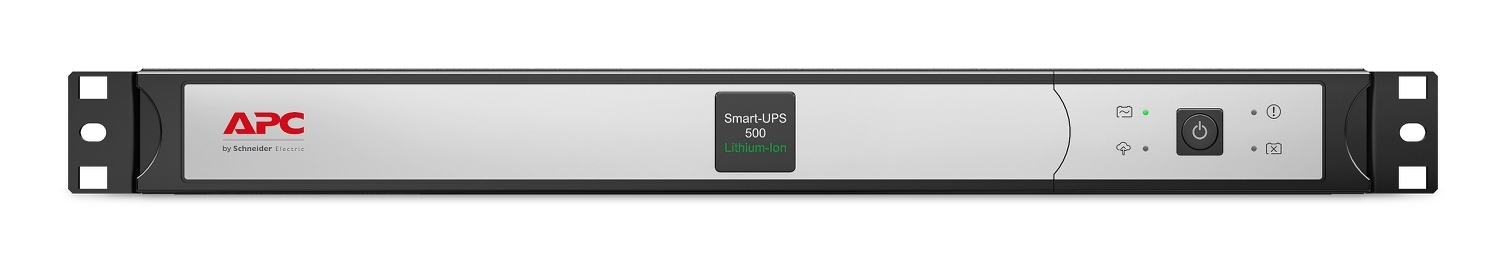

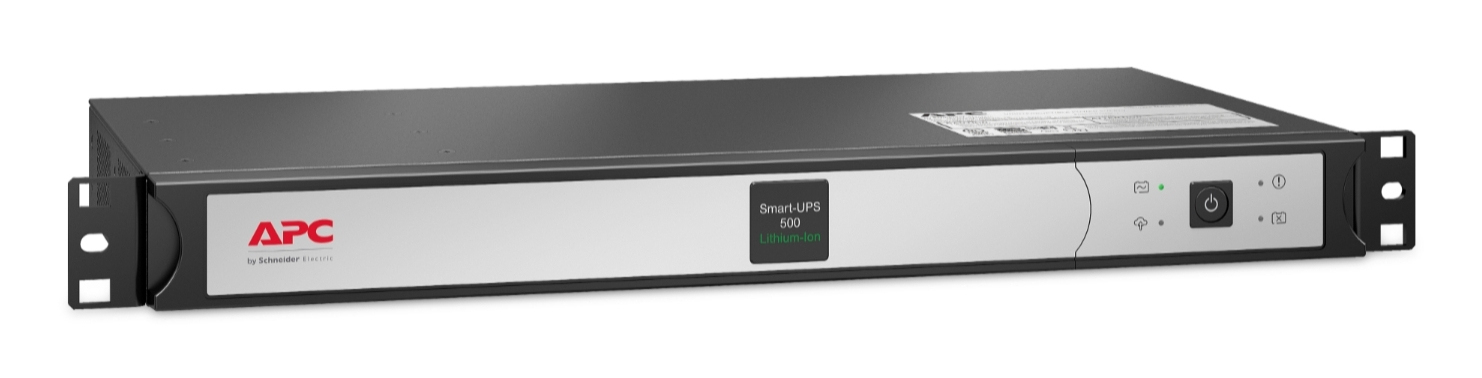

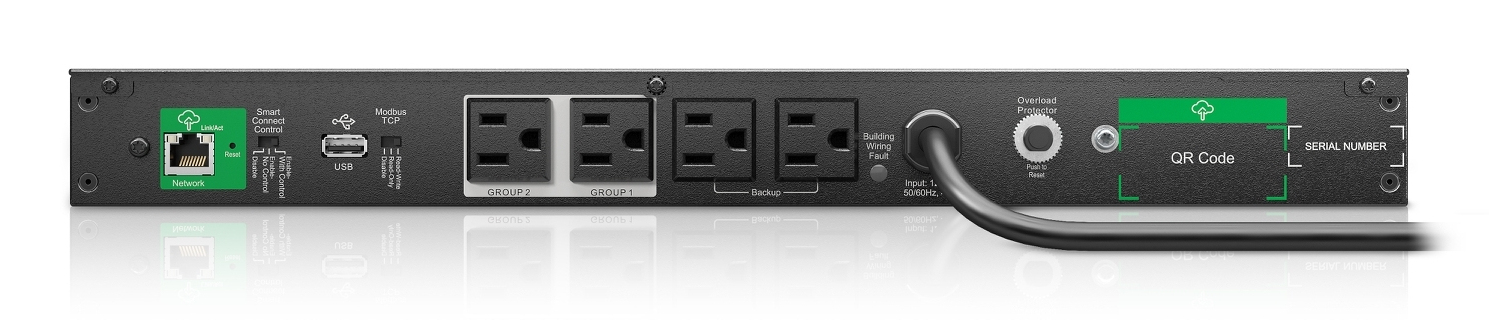

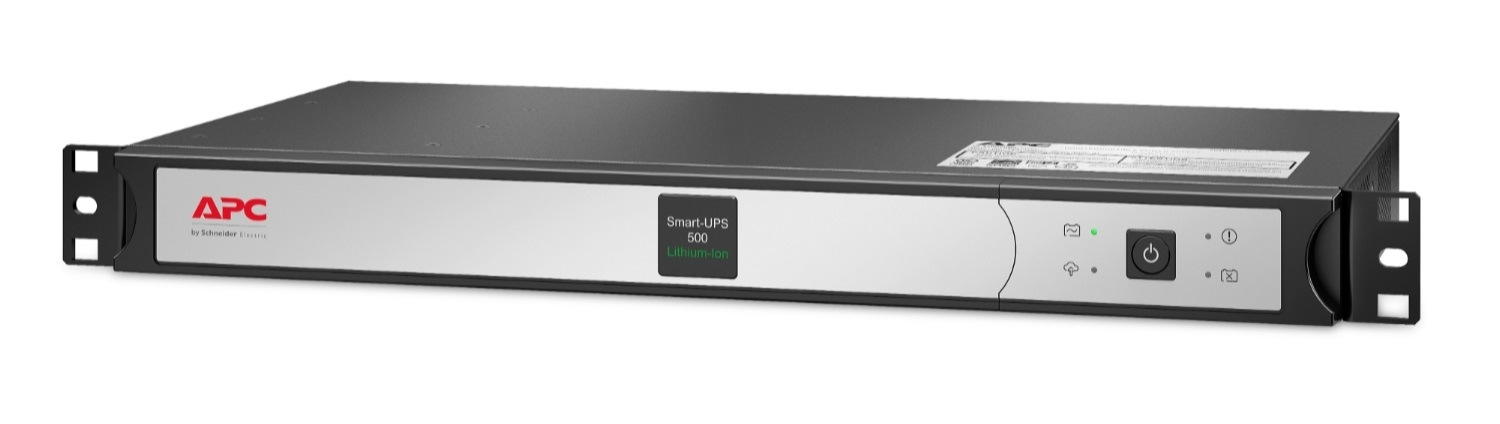

APC SCL500RM1UC uninterruptible power supply (UPS) Line-Interactive 0.5 kVA
APC

SCL500RM1UC uninterruptible power supply (UPS) Line-Interactive 0.5 kVA

400 W 4 AC outlet(s)

Model SCL500RM1UCEAN 731304344551

50 specifications
  • Noise45 dB
  • TypeRackmount
  • Weight4.18 kg
  • ColourBlack, Silver
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5–15R
See all specifications

Overview

Noise
45 dB
Type
Rackmount
Weight
4.18 kg
Colour
Black, Silver
UPS topology
Line-Interactive
AC outlet types
NEMA 5–15R
Brand
APC
Model
SCL500RM1UC
Part number
SCL500RM1UC
EAN / UPC
731304344551
Also known as
APC SCL500RM1UC uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 400 W 4 AC outlet(s)

Specifications

50 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power400 W
WaveformSine
Input operation voltage (min)92 V
Input operation voltage (max)139 V
Input frequency47/63 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Output voltage regulation5%
Automatic Voltage Regulation (AVR)Yes
Surge energy rating680 J
Response time6 ms
Noise level45 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery

Ports & interfaces

AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-A
Ethernet LAN (RJ-45) ports1

Battery

Battery technologyLithium-Ion (Li-Ion)
Battery life (max)10 year(s)
Battery recharge time3 h

Design

Form factorRackmount
Product colourBlack, Silver
Rack capacity1U
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 1968 m
Non-operating altitude0 - 14763 m

Packaging content

Rack mount kitYes
Cables includedUSB cable
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCSA C22.2 NO. 107.3, cULus, FCC 15 Class A, NOM, UL 1778, UL 1973

Weight & dimensions

Width432 mm
Depth232 mm
Height44 mm
Weight4.18 kg

Packaging data

Package width590 mm
Package depth337 mm
Package height168 mm
Package weight6 kg
