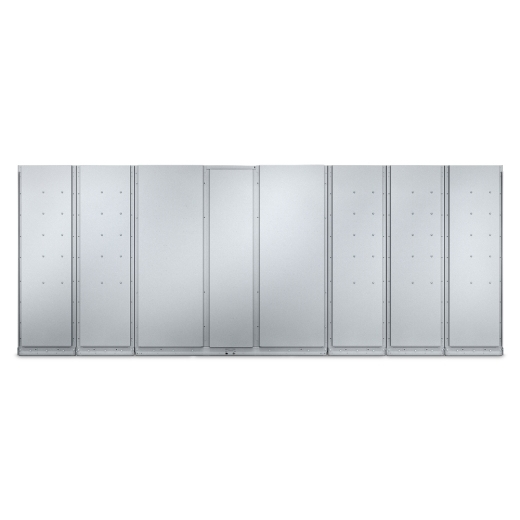

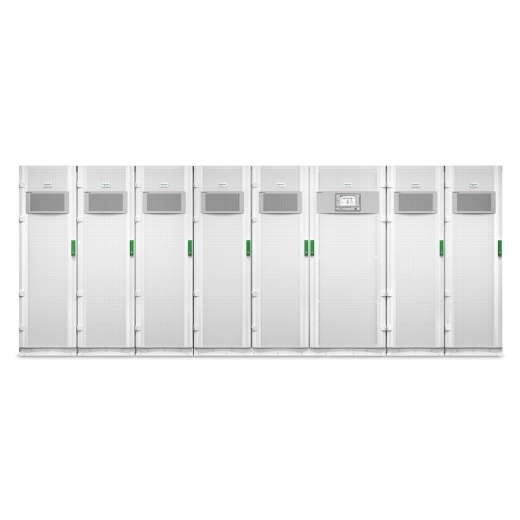

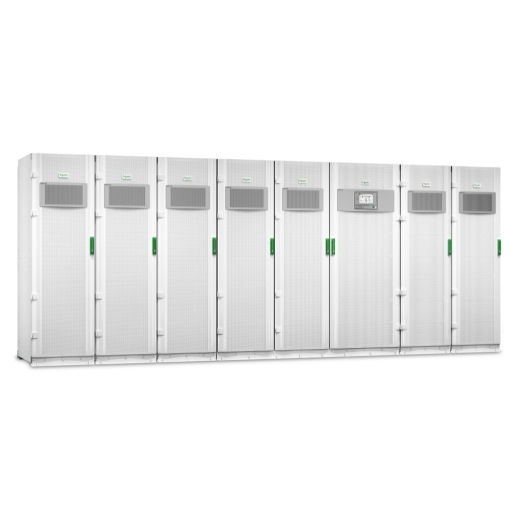

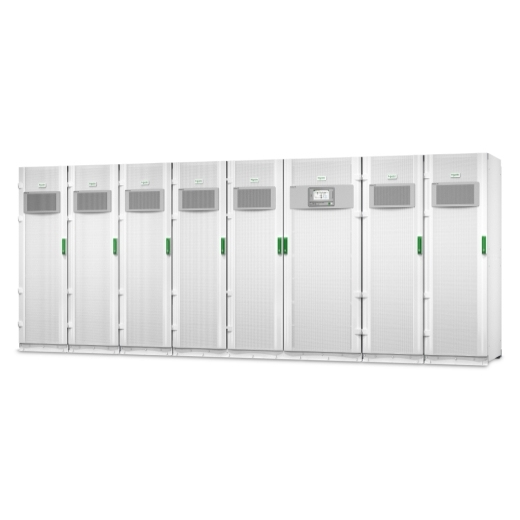

GVX1250K1250GS uninterruptible power supply (UPS) Double-conversion (Online) 1250 kVA
1250000 W
Model GVX1250K1250GS
39 specifications
- Noise68 dB
- TypeLarge tower
- Weight3450 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- AC outlet typesHard Wire 4-wire (3PH + G)
Overview
- Noise
- 68 dB
- Type
- Large tower
- Weight
- 3450 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- AC outlet types
- Hard Wire 4-wire (3PH + G)
- Brand
- APC
- Model
- GVX1250K1250GS
- Part number
- GVX1250K1250GS
- Also known as
- APC GVX1250K1250GS uninterruptible power supply (UPS) Double-conversion (Online) 1250 kVA 1250000 W
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1250 kVA |
| Output power | 1250000 W |
| Waveform | Sine |
| Input operation voltage (min) | 384 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 384 V |
| Output operation voltage (max) | 480 V |
| Output frequency | 60 Hz |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 68 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | Hard Wire 4-wire (3PH + G) |
| SmartSlot | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Large tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1015.9 m |
| Non-operating altitude | 0 - 15240 m |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1778 5th edition, cUL, FCC47 Part 15, OSHPD, ANSI 62.4/B3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 5000 mm |
| Depth | 900 mm |
| Height | 1970 mm |
| Weight | 3450 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 5900 mm |
| Package depth | 1060 mm |
| Package height | 2150 mm |
| Package weight | 4433 kg |
