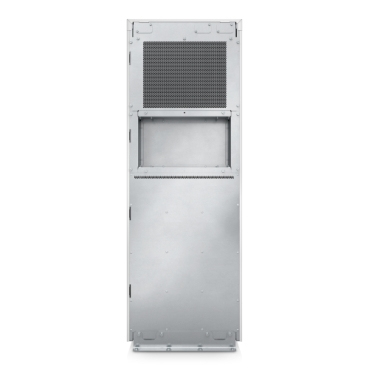

APC GVSUPS50KB4GS uninterruptible power supply (UPS) Double-conversion (Online) 50 kVA
APC

GVSUPS50KB4GS uninterruptible power supply (UPS) Double-conversion (Online) 50 kVA

50000 W

Model GVSUPS50KB4GSEAN 731304641841

44 specifications
  • Noise61 dB
  • TypeTower
  • Weight460 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • SmartSlotYes
See all specifications

Overview

Noise
61 dB
Type
Tower
Weight
460 kg
Colour
White
UPS topology
Double-conversion (Online)
SmartSlot
Yes
Brand
APC
Model
GVSUPS50KB4GS
Part number
GVSUPS50KB4GS
EAN / UPC
731304641841
Also known as
APC GVSUPS50KB4GS uninterruptible power supply (UPS) Double-conversion (Online) 50 kVA 50000 W

Specifications

44 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity50 kVA
Output power50000 W
WaveformSine
Input operation voltage (max)480 V
Input frequency40/70 Hz
Output operation voltage (max)480 V
Output frequency50/60 Hz
Maximum current74 A
Heat dissipation5210 BTU/h
Number of input phases3
Number of output phases3
Input power factor0.99
Crest factor2.5:1
ECO modeYes
Input current Total Harmonic Distortion (THD)3%
Noise level61 dB
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesHard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage480 V

Design

Form factorTower
Product colourWhite
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 1000 m
Non-operating altitude0 - 3048 m

Packaging content

ManualYes
Quick installation guideYes

Certificates

CertificationCSA C22.2 No 107.3, FCC Part 15 class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Weight & dimensions

Width521 mm
Depth847 mm
Height1485 mm
Weight460 kg

Packaging data

Package width640 mm
Package depth990 mm
Package height1680 mm
Package weight490 kg
