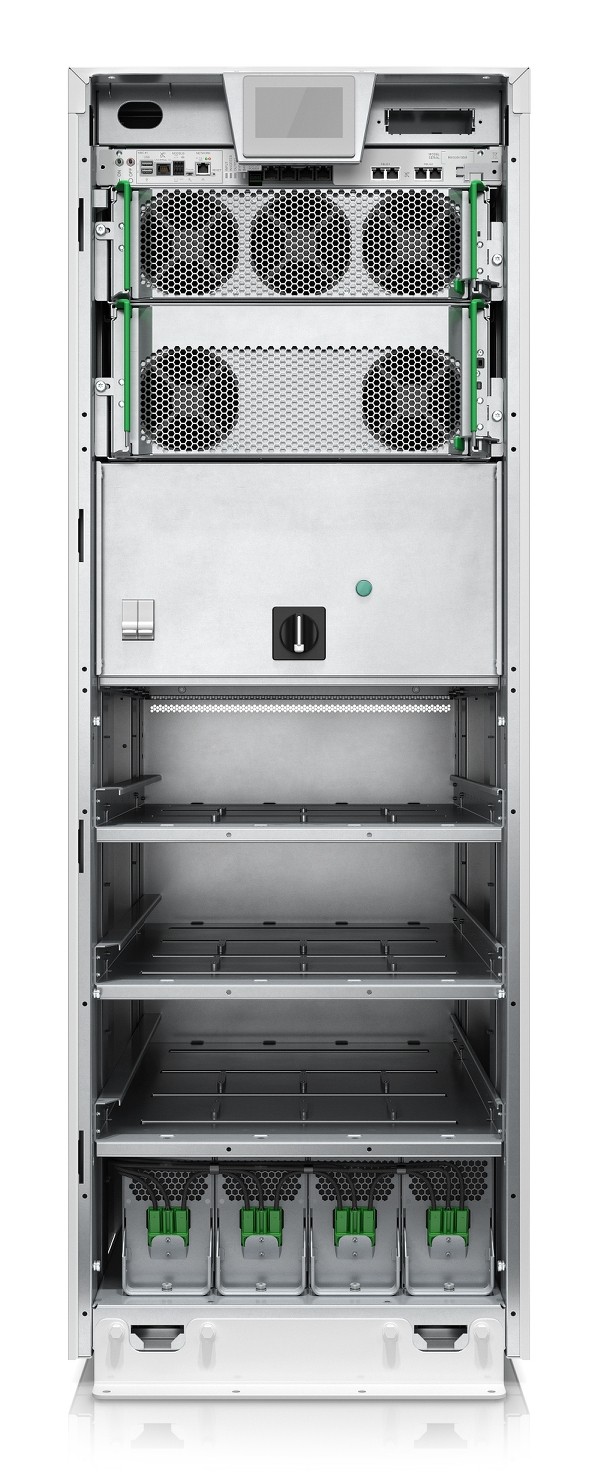

APC GVSUPS10KR0B5FS uninterruptible power supply (UPS) 10 kVA
APC

GVSUPS10KR0B5FS uninterruptible power supply (UPS) 10 kVA

10000 W

Model GVSUPS10KR0B5FSPart no. GVSUPS10KB4FSEAN 731304347743

42 specifications
  • Noise55 dB
  • Weight320 kg
  • ColourWhite
  • Output power capacity10 kVA
  • Battery technologySealed Lead Acid (VRLA)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Noise
55 dB
Weight
320 kg
Colour
White
Output power capacity
10 kVA
Battery technology
Sealed Lead Acid (VRLA)
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
GVSUPS10KR0B5FS
Part numbers
GVSUPS10KB4FS, GVSUPS10KR0B5FS
EAN / UPC
731304347743, 731304641636, 731304409830
Also known as
APC GVSUPS10KR0B5FS uninterruptible power supply (UPS) 10 kVA 10000 W

Specifications

42 specifications in 10 groups

Features

Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)200 V
Input operation voltage (max)220 V
Input frequency40 - 70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)220 V
Output frequency50/60 Hz
Output voltage regulation1%
Maximum current27 A
Heat dissipation2286 BTU/h
Number of input phases3
Number of output phases3
Power factor0.7
Crest factor2.5:1
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)3%
Noise level55 dB

Battery

Battery technologySealed Lead Acid (VRLA)

Design

Product colourWhite
Control typeTouch
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 1000 m

Packaging content

ManualYes

Power

Input current (max)36 A

Technical details

Battery includedNo
Minimum order quantity1 pc(s)

Weight & dimensions

Width521 mm
Depth847 mm
Height1485 mm
Weight320 kg

Packaging data

Package width990 mm
Package depth640 mm
Package height1680 mm
Package weight490 kg

Logistics data

Warranty period1 year(s)
