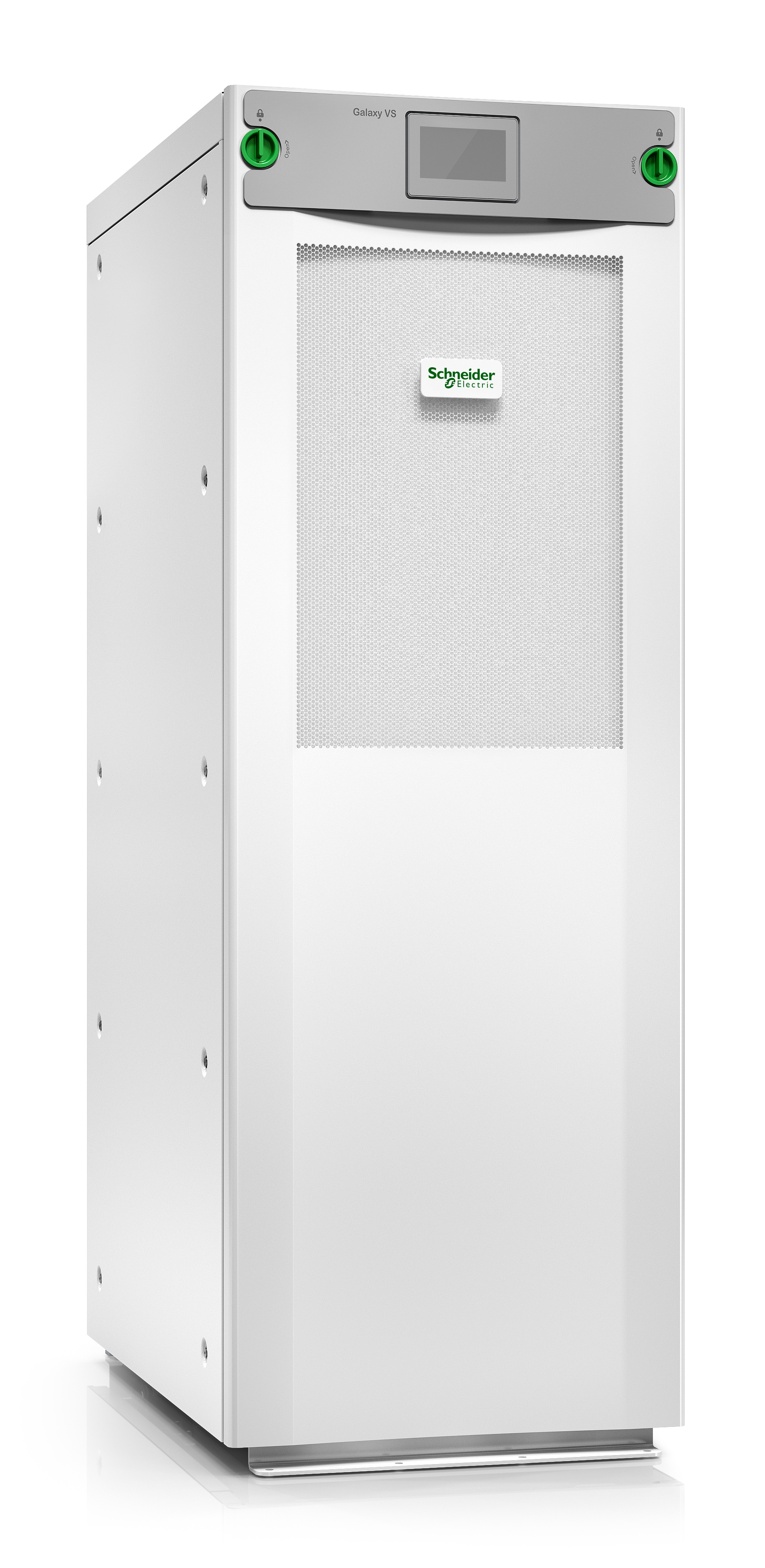

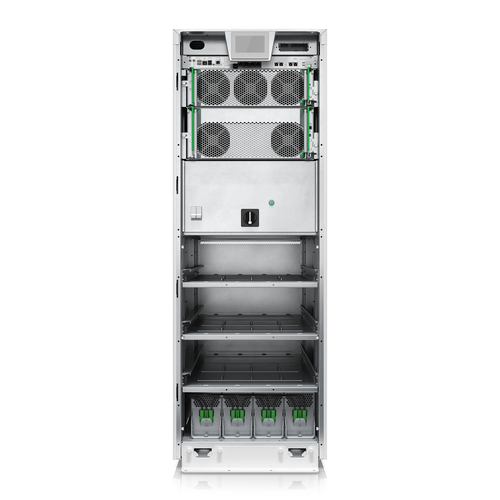

APC GVSUPS10KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA
APC

GVSUPS10KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA

10000 W

Model GVSUPS10KB4HSEAN 731304406730

47 specifications
  • Noise55 dB
  • TypeTower
  • Weight330 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • SmartSlotYes
See all specifications

Overview

Noise
55 dB
Type
Tower
Weight
330 kg
Colour
White
UPS topology
Double-conversion (Online)
SmartSlot
Yes
Brand
APC
Model
GVSUPS10KB4HS
Part number
GVSUPS10KB4HS
EAN / UPC
731304406730, 5054444406626, 5705154232790
Also known as
APC GVSUPS10KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Specifications

47 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformSine
Input operation voltage (min)340 V
Input operation voltage (max)460 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current18 A
Number of input phases3
Number of output phases3
Input power factor0.99
Crest factor2.5:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)3%
Noise level55 dB
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlotYes
SmartConnect portNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage480 V

Design

Form factorTower
Product colourWhite
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 3000 m

Packaging content

Management card includedYes
Quick installation guideYes

Certificates

CertificationCSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Weight & dimensions

Width521 mm
Depth847 mm
Height1485 mm
Weight330 kg

Packaging data

Package width640 mm
Package depth990 mm
Package height1680 mm
Package weight360 kg

Logistics data

Harmonized System (HS) code85078000
