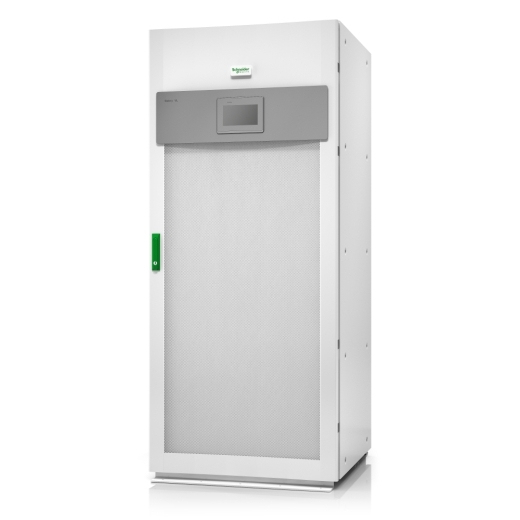

APC Galaxy VL UPS 200 scalable to 500kW, 400/480V, Start-up
APC

Galaxy VL UPS 200 scalable to 500kW, 400/480V, Start-up

5x8

Model GVL200K500DSEAN 731304423041

39 specifications
  • TypeTower
  • Weight550 kg
  • ColourWhite
  • Output power capacity500 kVA
  • Battery voltage384 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Tower
Weight
550 kg
Colour
White
Output power capacity
500 kVA
Battery voltage
384 V
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
GVL200K500DS
Part number
GVL200K500DS
EAN / UPC
731304423041
Also known as
APC Galaxy VL UPS 200 scalable to 500kW, 400/480V, Start-up 5x8

Specifications

39 specifications in 8 groups

Features

Output power capacity500 kVA
Output power500000 W
Input operation voltage (min)380 V
Input operation voltage (max)480 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)480 V
Number of input phases3
Number of output phases3
Efficiency97.2%
Crest factor2.5:1
Output voltage Total Harmonic Distortion (THD)1%
Input current Total Harmonic Distortion (THD)5%
Power protection featuresOverload, Short circuit
Power source typeAC

Battery

Battery voltage384 V

Design

Form factorTower
Product colourWhite
Cooling typeActive
Built-in fanYes
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesFederal Communications Commission (FCC), RoHS
CertificationIEC 60721-4-2 level 2M2, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, UL 1778 5th edition, VFI-SS-111

Sustainability

Sustainability certificatesENERGY STAR
Sustainability complianceYes

Weight & dimensions

Width850 mm
Depth925 mm
Height1970 mm
Weight550 kg

Packaging data

Package width1100 mm
Package depth950 mm
Package height2145 mm
Package weight620 kg

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model GVL200K500DS · certified Jul 6, 2021 · United States, Canada

Average efficiency96.9 %
