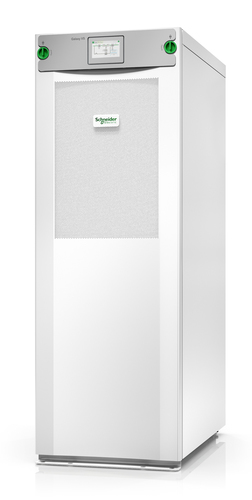

APC Galaxy VS
APC

Galaxy VS

Model Galaxy VSPart no. GVSUPS80KMHSEAN 731304413950

48 specifications
  • Noise65 dB
  • TypeTower
  • Weight250 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • SmartSlotYes
See all specifications

Overview

Noise
65 dB
Type
Tower
Weight
250 kg
Colour
White
UPS topology
Double-conversion (Online)
SmartSlot
Yes
Brand
APC
Model
Galaxy VS
Part numbers
GVSUPS80KMHS, GVSUPS50K150HS, GVSUPS60KMHS, GVSUPS30KMHS, GVSUPS150KMHS, GVSUPS80KHS +19 more
EAN / UPC
731304413950, 731304342823, 5705154118872, 731304342786 +43 more
Also known as
APC Galaxy VS UPS 80kW 400V for External Batteries, Start-up 5x8

Specifications

48 specifications in 11 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity80 kVA
Output power80000 W
WaveformSine
Input operation voltage (min)340 V
Input operation voltage (max)460 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current148 A
Heat dissipation7449 BTU/h
Number of input phases3
Number of output phases3
Efficiency97%
Input power factor0.99
Crest factor2.5:1
Output voltage Total Harmonic Distortion (THD)3%
Noise level65 dB

Ports & interfaces

SmartSlotYes
SmartConnect portNo

Battery

Battery technologyLithium-Ion (Li-Ion)

Design

Form factorTower
Product colourWhite
LED indicatorsYes
International Protection (IP) codeIP21

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)10 - 80%
Operating altitude0 - 984.3 m
Non-operating altitude0 - 15000 m

Packaging content

Management card includedYes

Certificates

Compliance certificatesRoHS
CertificationCSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Weight & dimensions

Width521 mm
Depth847 mm
Height1485 mm
Weight250 kg

Packaging data

Package width640 mm
Package depth990 mm
Package height1680 mm
Package weight275 kg

Logistics data

Harmonized System (HS) code85078000
Warranty period1 year(s)

Other features

Input connection type3-wire (3PH + G), 5-wire (3PH + N + G)
Nominal input voltage400 V
Nominal output voltage400 V
