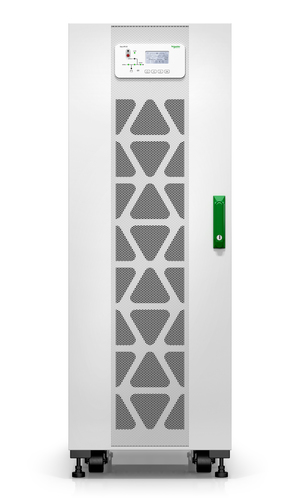

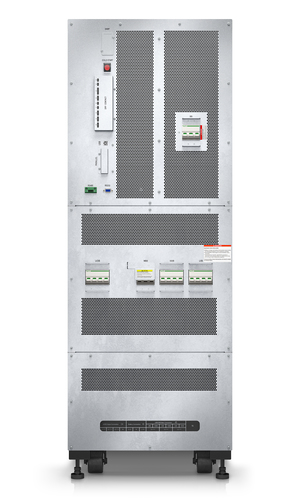

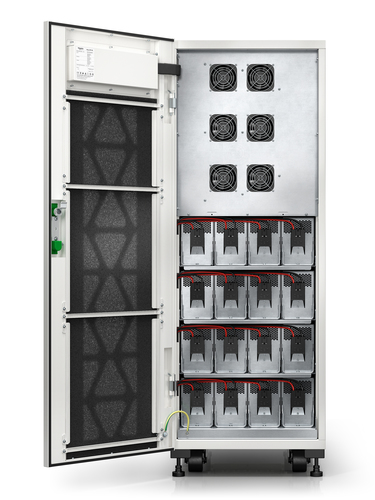

APC Easy UPS 3S

APC Easy UPS 3S

Model Easy UPS 3SPart no. E3SUPS40KHBEAN 8592978409234

49 specifications
  • Noise63 dB
  • TypeTower
  • Weight590 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire, Terminal
See all specifications

Overview

Noise
63 dB
Type
Tower
Weight
590 kg
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire, Terminal
Brand
APC
Model
Easy UPS 3S
Part numbers
E3SUPS40KHB, E3SUPS40KHB1
EAN / UPC
8592978409234, 731304428299, 3606489697952, 731304340829
Also known as
APC Easy UPS 3S uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W

Specifications

49 specifications in 11 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Output power40000 W
WaveformPure sine
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency50/60 Hz
Output operation voltage (min)380 V
Output operation voltage (max)400 V
Output frequency regulation45 - 65 Hz
Maximum current73 A
Number of input phases3
Number of output phases3
Efficiency96%
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level63 dB

Ports & interfaces

AC outlet typesHardwire, Terminal
USB portYes
Serial interfaceYes
Serial interface typeRS-232
SmartSlotYes
SmartConnect portNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V

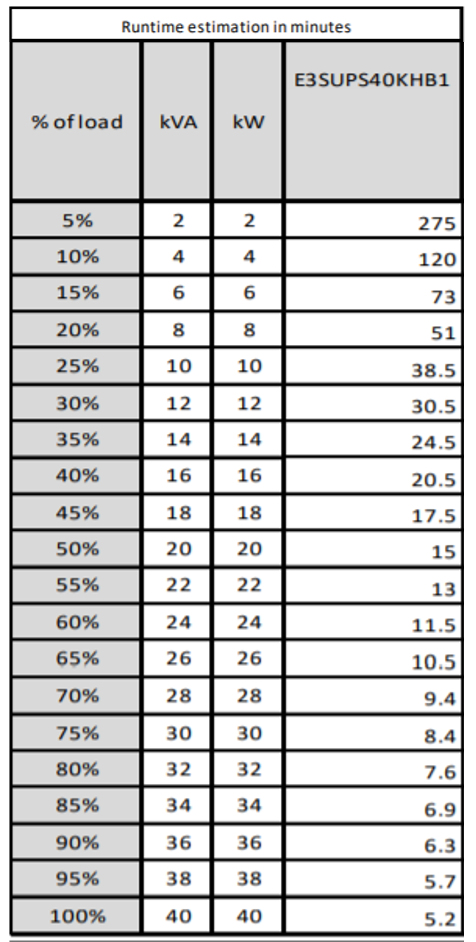

Typical backup time at full load10 min

Design

Form factorTower
Product colourWhite
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 9999 m
Non-operating altitude0 - 15000 m

Packaging content

Management card includedNo

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH

Safety regulation & standards

SafetyIEC 62040-1-1

Weight & dimensions

Width500 mm
Depth969 mm
Height1400 mm
Weight590 kg

Packaging data

Package width683 mm
Package depth1114 mm
Package height1640 mm
Package weight643 kg

Logistics data

Harmonized System (HS) code85078000
