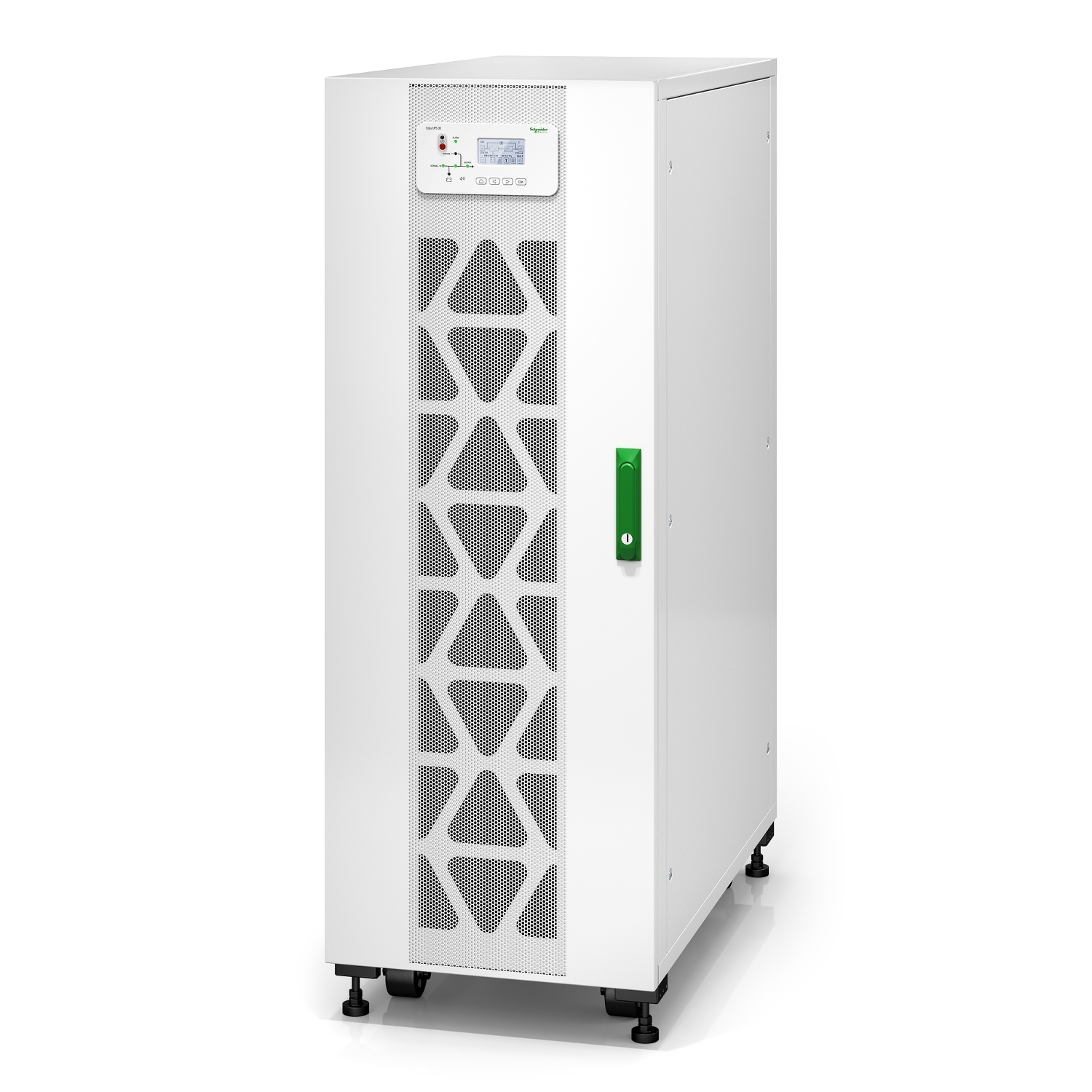

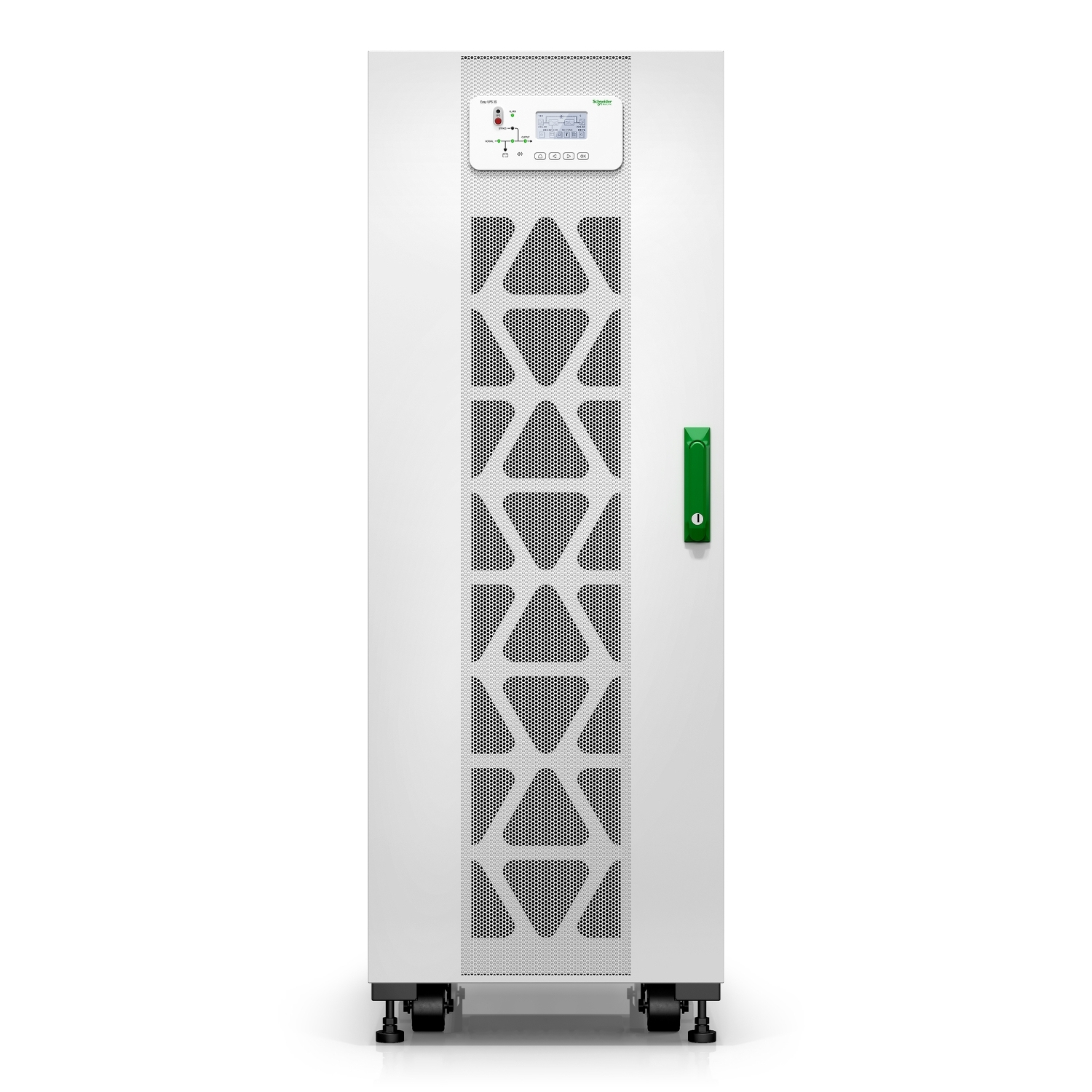

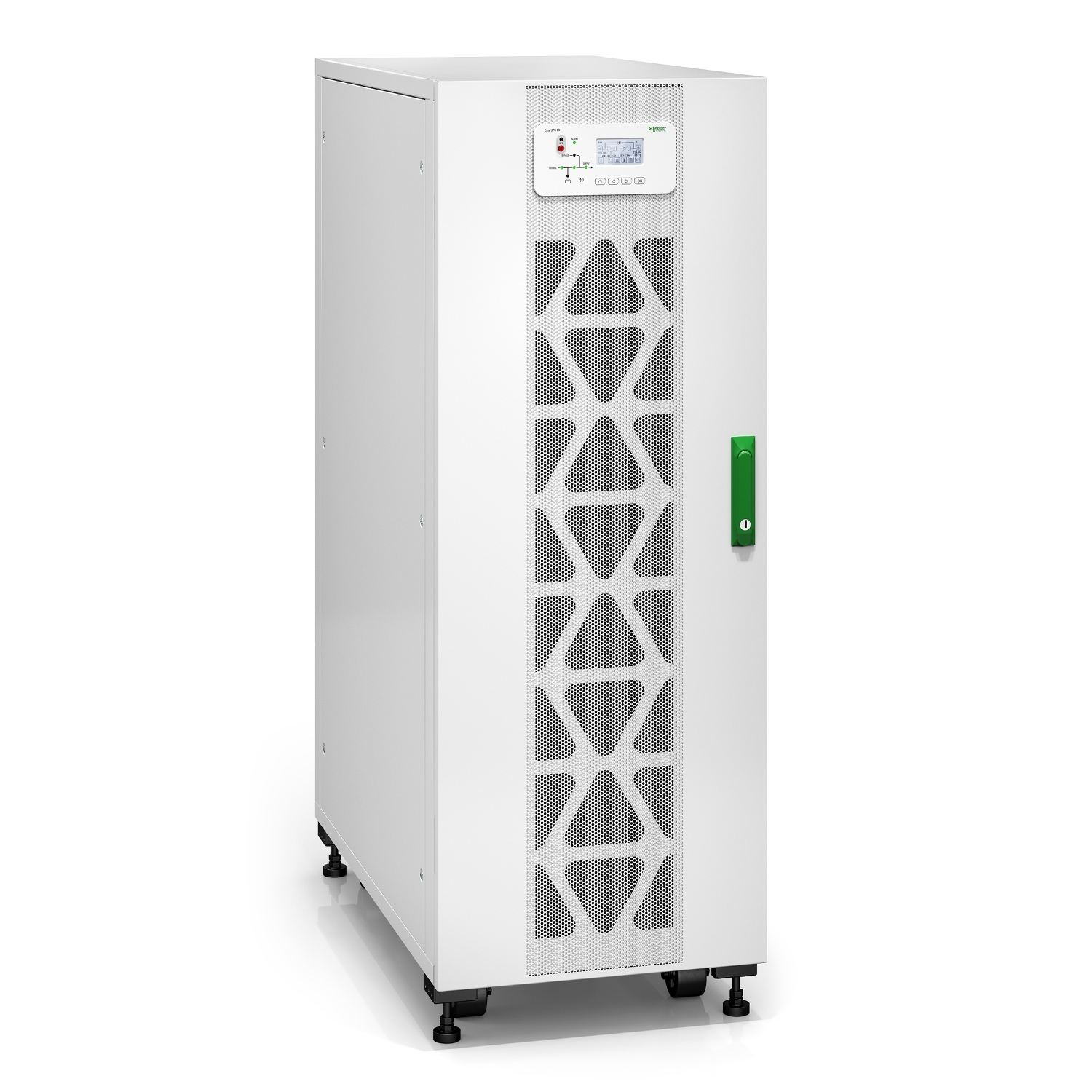

E3SUPS30K3IB2 uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA
30000 W
Model E3SUPS30K3IB2EAN 731304428268
33 specifications
- TypeRackmount
- Weight293 kg
- ColourWhite
- UPS topologyDouble-conversion (Online)
- Battery technologySealed Lead Acid (VRLA)
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Rackmount
- Weight
- 293 kg
- Colour
- White
- UPS topology
- Double-conversion (Online)
- Battery technology
- Sealed Lead Acid (VRLA)
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- APC
- Model
- E3SUPS30K3IB2
- Part number
- E3SUPS30K3IB2
- EAN / UPC
- 731304428268, 3606489698041
- Also known as
- APC E3SUPS30K3IB2 uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
Specifications
33 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 400 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount |
| Product colour | White |
| International Protection (IP) code | IP20 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Weight | 293 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
| Package weight | 297 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85078000 |
