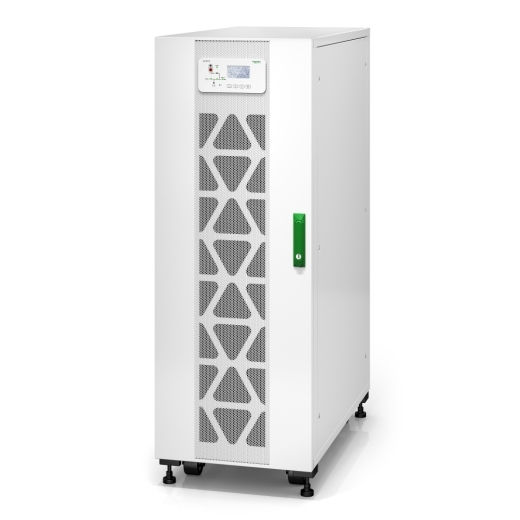

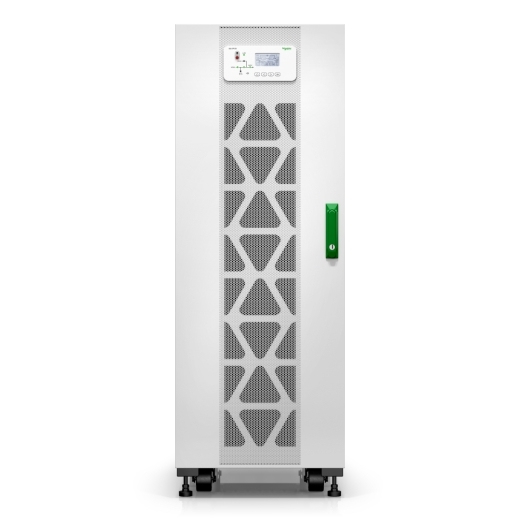

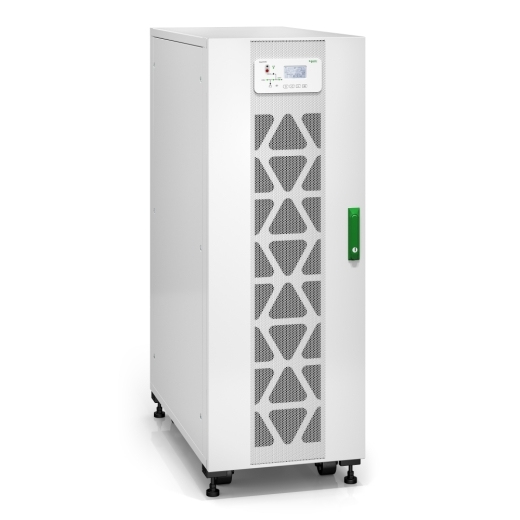

APC Easy UPS 3S 30 kVA
APC

Easy UPS 3S 30 kVA

400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 4

Model E3SUPS30K3IB1EAN 731304428251

40 specifications
  • Noise63 dB
  • TypeTower
  • Weight212 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Noise
63 dB
Type
Tower
Weight
212 kg
Colour
White
UPS topology
Double-conversion (Online)
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
E3SUPS30K3IB1
Part number
E3SUPS30K3IB1
EAN / UPC
731304428251, 3606489698034
Also known as
APC Easy UPS 3S 30 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 4

Specifications

40 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Output power30000 W
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current55 A
Input power factor0.99
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)5.5%
Input current Total Harmonic Distortion (THD)5%
Noise level63 dB
Power protection featuresOverload

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V
Number of batteries supported2
Battery weight213 kg

Design

Form factorTower
Product colourWhite
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 984.3 m
Non-operating altitude0 - 15000 m

Packaging content

Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationREACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Weight & dimensions

Width500 mm
Depth996 mm
Height1400 mm
Weight212 kg
Battery width68.3 cm
Battery depth111.4 cm
Battery height164 cm

Logistics data

Harmonized System (HS) code85078000
