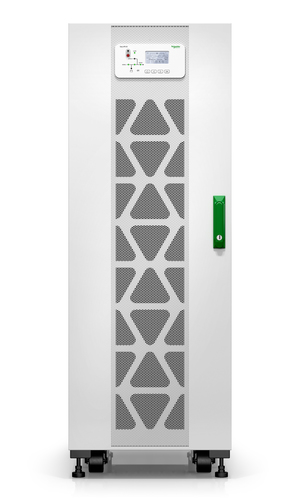

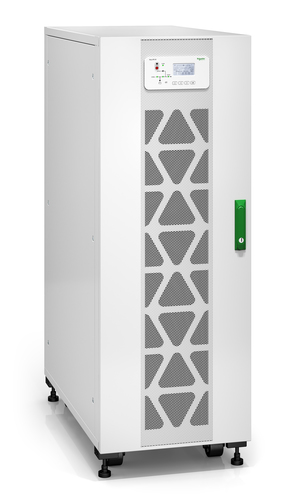

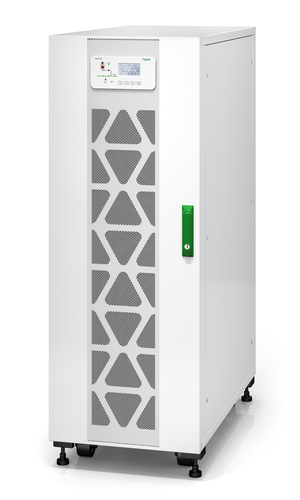

APC Easy UPS 3S 30 kVA
APC

Easy UPS 3S 30 kVA

400 V 3:1 UPS for internal batteries

Model E3SUPS30K3IBEAN 731304340805

38 specifications
  • Noise63 dB
  • TypeTower
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesHardwire
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Noise
63 dB
Type
Tower
Colour
White
UPS topology
Double-conversion (Online)
AC outlet types
Hardwire
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
E3SUPS30K3IB
Part number
E3SUPS30K3IB
EAN / UPC
731304340805
Also known as
APC Easy UPS 3S 30 kVA 400 V 3:1 UPS for internal batteries

Specifications

38 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity30 kVA
Output power30000 W
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current55 A
Input power factor0.99
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)1.5%
Input current Total Harmonic Distortion (THD)5%
Noise level63 dB

Ports & interfaces

AC outlet typesHardwire

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V
Number of batteries supported4

Design

Form factorTower
Product colourWhite
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 984.3 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationREACH, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Weight & dimensions

Width500 mm
Depth996 mm
Height1400 mm

Packaging data

Package width683 mm
Package depth1114 mm
Package height1640 mm
Package weight185 kg

Logistics data

Harmonized System (HS) code85078000
