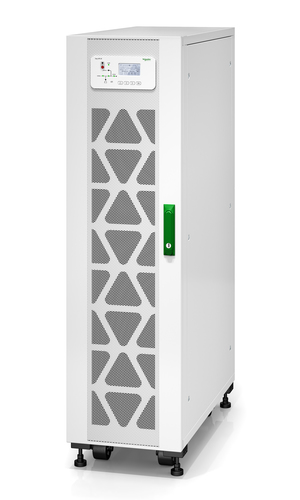

APC Easy UPS 3S 20 kVA
APC

Easy UPS 3S 20 kVA

400V 3:1 UPS, 3 internal 7Ah modular battery strings

Model E3SUPS20K3IB2EAN 731304428220

41 specifications
  • Noise60 dB
  • TypeTower
  • Weight231 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Noise
60 dB
Type
Tower
Weight
231 kg
Colour
White
UPS topology
Double-conversion (Online)
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
E3SUPS20K3IB2
Part number
E3SUPS20K3IB2
EAN / UPC
731304428220, 5054444236735
Also known as
APC Easy UPS 3S 20 kVA 400V 3:1 UPS, 3 internal 7Ah modular battery strings

Specifications

41 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
WaveformSine
Input operation voltage (min)304 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation5.5%
Maximum current37 A
Number of input phases3
Number of output phases1
Efficiency95%
Input power factor0.99
Crest factor3:1
ECO modeYes
Noise level60 dB

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V

Design

Form factorTower
Product colourWhite
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 984.3 m
Non-operating altitude0 - 15000 m

Certificates

CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH

Weight & dimensions

Width380 mm
Depth907 mm
Height1400 mm
Weight231 kg

Packaging data

Package width563 mm
Package depth1014 mm
Package height1640 mm
Package weight242 kg

Logistics data

Harmonized System (HS) code85078000
