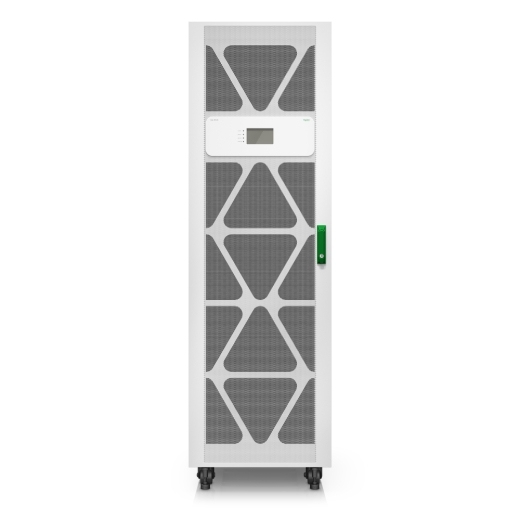

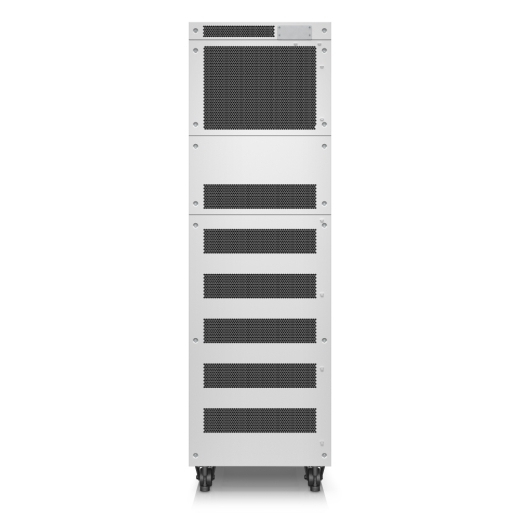

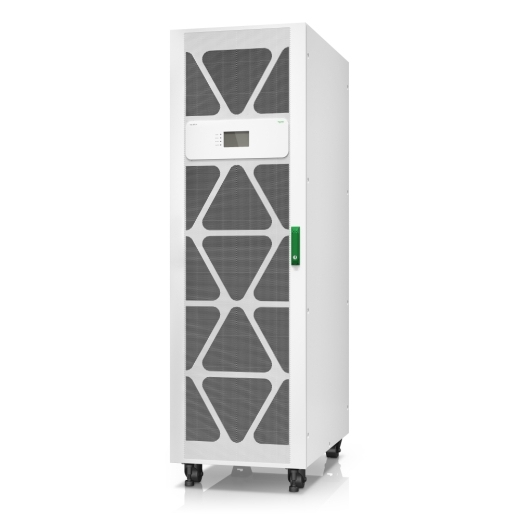

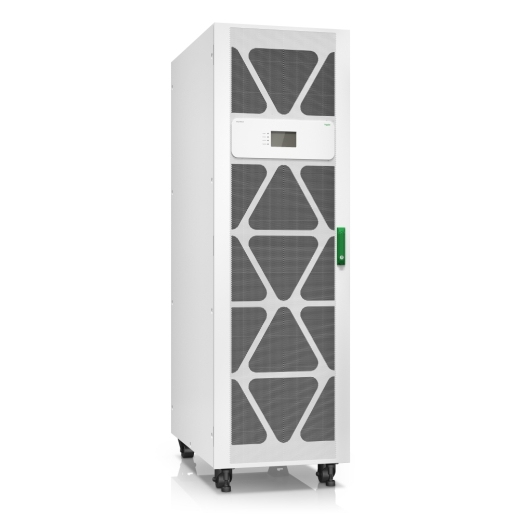

APC E3MUPS80KHBS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA
APC

E3MUPS80KHBS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA

80000 W

Model E3MUPS80KHBSEAN 731304363293

40 specifications
  • TypeTower
  • Weight339 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • Battery technologySealed Lead Acid (VRLA)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Tower
Weight
339 kg
Colour
White
UPS topology
Double-conversion (Online)
Battery technology
Sealed Lead Acid (VRLA)
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
E3MUPS80KHBS
Part number
E3MUPS80KHBS
EAN / UPC
731304363293
Also known as
APC E3MUPS80KHBS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W

Specifications

40 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity80 kVA
Output power80000 W
WaveformSine
Input operation voltage (min)342 V
Input operation voltage (max)477 V
Input frequency40 - 70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current146 A
Number of input phases3
Number of output phases3
Power factor0.99
Surge protectionYes
Audible alarm(s)Yes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage240 V

Design

Form factorTower
Product colourWhite
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 450 m
Non-operating altitude0 - 4500 m

Packaging content

Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH

Weight & dimensions

Width600 mm
Depth1000 mm
Height1970 mm
Weight339 kg

Packaging data

Package width750 mm
Package depth1125 mm
Package height2102 mm
Package weight387 kg

Logistics data

Harmonized System (HS) code85078000
