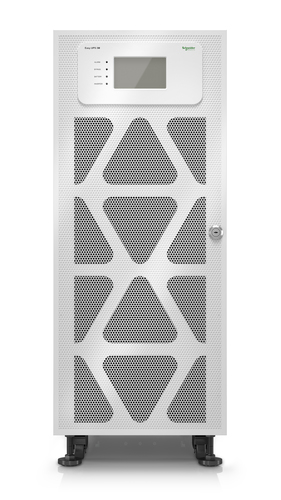

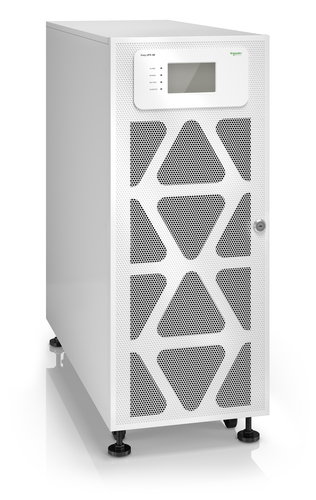

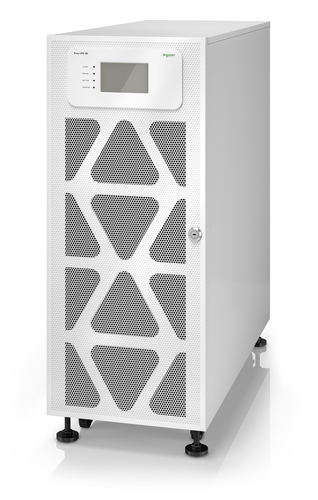

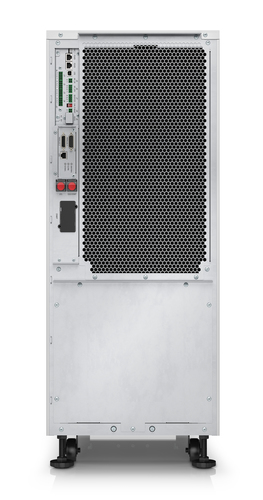

APC Easy UPS 3M 100kVA
APC

Easy UPS 3M 100kVA

400V 3:3 UPS for external batteries, Start-up 5x8

Model E3MUPS100KHSEAN 731304346708

41 specifications
  • Noise65 dB
  • TypeTower
  • Weight145 kg
  • ColourWhite
  • UPS topologyDouble-conversion (Online)
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Noise
65 dB
Type
Tower
Weight
145 kg
Colour
White
UPS topology
Double-conversion (Online)
Operating temperature (T-T)
0 - 40 °C
Brand
APC
Model
E3MUPS100KHS
Part number
E3MUPS100KHS
EAN / UPC
731304346708, 731304363194
Also known as
APC Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5x8

Specifications

41 specifications in 7 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity100 kVA
Output power100000 W
WaveformSine
Input operation voltage (min)342 V
Input operation voltage (max)477 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current177 A
Number of input phases3
Number of output phases3
Efficiency94.8%
Input power factor0.99
Crest factor3:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)3%
Noise level65 dB
Audible alarm(s)Yes

Design

Form factorTower
Product colourWhite
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1476.3 m
Non-operating altitude0 - 15000 m

Certificates

CertificationEN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4

Weight & dimensions

Width360 mm
Depth850 mm
Height915 mm
Weight145 kg

Packaging data

Package width475 mm
Package depth965 mm
Package height1140 mm
Package weight169 kg

Logistics data

Harmonized System (HS) code85078000
