APC Back-UPS, 2200VA, Tower
APC

Back-UPS, 2200VA, Tower

230V, 4x CEE 7/7 Schuko outlets, AVR

Model BX2200MI-GREAN 731304410881

56 specifications
  • Noise40 dB
  • TypeCompact
  • Weight12.3 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesType F
See all specifications

Overview

Noise
40 dB
Type
Compact
Weight
12.3 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
Type F
Brand
APC
Model
BX2200MI-GR
Part number
BX2200MI-GR
EAN / UPC
731304410881
Also known as
APC Back-UPS, 2200VA, Tower, 230V, 4x CEE 7/7 Schuko outlets, AVR

Specifications

56 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1200 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)230 V
Output operation voltage (max)230 V
Output frequency50/60 Hz
Output frequency regulation0.5 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Surge energy rating273 J
Response time6 ms
Input power factor0.54
Noise level40 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesLow battery alarm

Ports & interfaces

AC outlet typesType F
Power plugType F
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
SmartSlotNo
SmartConnect portNo

Battery

Battery technologySealed Lead Acid (VRLA)

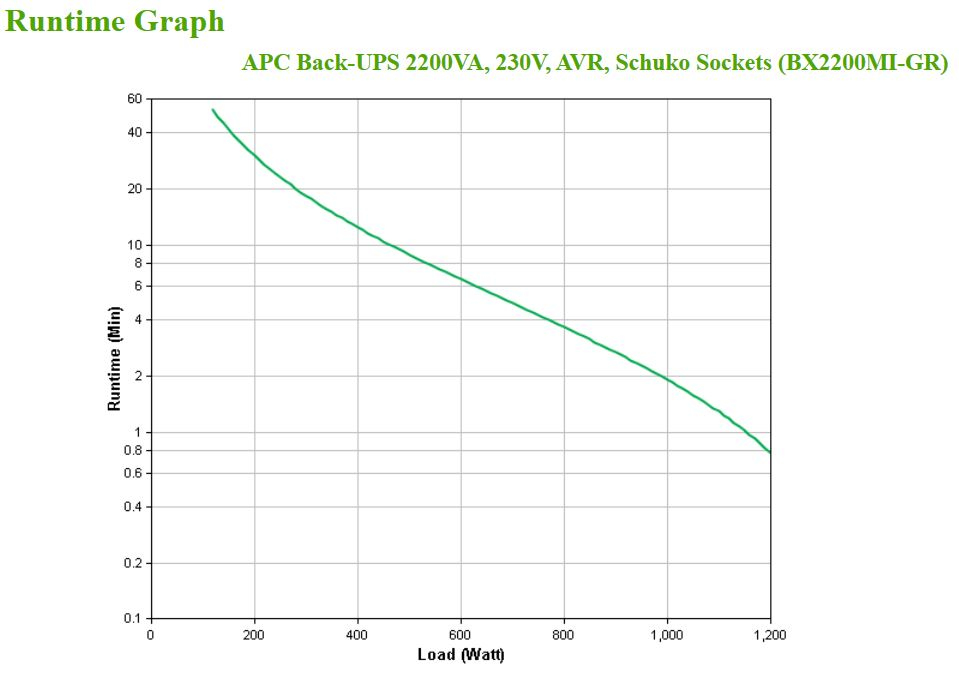

Typical backup time at full load1 min
Typical backup time at half load8.5 min
Battery life (max)2 year(s)
Battery recharge time8 h

Design

Form factorCompact
Product colourBlack
Cable length1.2 m
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Packaging content

Cables includedInput power cable
Management card includedNo
ManualYes

Certificates

Compliance certificatesRoHS
CertificationCB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2

Weight & dimensions

Width140 mm
Depth390 mm
Height190 mm
Weight12.3 kg

Packaging data

Package width235 mm
Package depth495 mm
Package height297 mm
Package weight13.3 kg

Logistics data

Harmonized System (HS) code85078000
