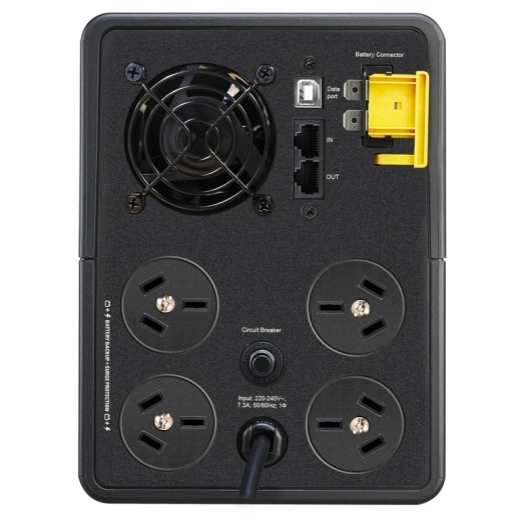

APC BX1600MI-AZ uninterruptible power supply (UPS) Line-Interactive 1.6 kVA
APC

BX1600MI-AZ uninterruptible power supply (UPS) Line-Interactive 1.6 kVA

900 W 4 AC outlet(s)

Model BX1600MI-AZEAN 731304410775

42 specifications
  • Battery168 Ah
  • Noise40 dB
  • TypeCompact
  • Weight10.3 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
168 Ah
Noise
40 dB
Type
Compact
Weight
10.3 kg
Colour
Black
UPS topology
Line-Interactive
Brand
APC
Model
BX1600MI-AZ
Part number
BX1600MI-AZ
EAN / UPC
731304410775, 10731304410772
Also known as
APC BX1600MI-AZ uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 900 W 4 AC outlet(s)

Specifications

42 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity1.6 kVA
Output power900 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)230 V
Output frequency50/60 Hz
Surge energy rating273 J
Response time6 ms
Input power factor0.56
Noise level40 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery

Ports & interfaces

AC outlet typesC14 coupler
AC outlets quantity4 AC outlet(s)
Ethernet LAN (RJ-45) ports2

Battery

Battery capacity168 Ah
Battery life (max)5 year(s)
Battery recharge time8 h

Design

Form factorCompact
Product colourBlack
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m

Packaging content

ManualYes

Certificates

CertificationCB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM

Weight & dimensions

Width140 mm
Depth390 mm
Height190 mm
Weight10.3 kg

Packaging data

Package width235 mm
Package depth495 mm
Package height297 mm
Package weight11.3 kg
