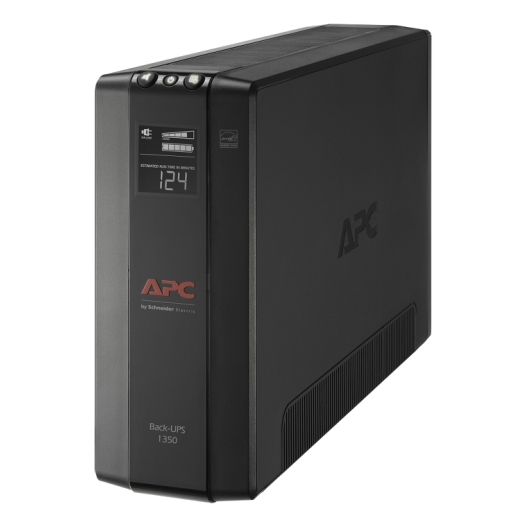

APC BX1350M-LM60 uninterruptible power supply (UPS) Line-Interactive 1.35 kVA
APC

BX1350M-LM60 uninterruptible power supply (UPS) Line-Interactive 1.35 kVA

810 W 10 AC outlet(s)

Model BX1350M-LM60EAN 731304337287

54 specifications
  • Noise45 dB
  • TypeTower
  • Weight10.2 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5-15R
See all specifications

Overview

Noise
45 dB
Type
Tower
Weight
10.2 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
NEMA 5-15R
Brand
APC
Model
BX1350M-LM60
Part number
BX1350M-LM60
EAN / UPC
731304337287
Also known as
APC BX1350M-LM60 uninterruptible power supply (UPS) Line-Interactive 1.35 kVA 810 W 10 AC outlet(s)

Specifications

54 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity1.35 kVA
Output power810 W
WaveformStepwise
Input operation voltage (min)88 V
Input operation voltage (max)139 V
Input frequency60 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency60 Hz
Automatic Voltage Regulation (AVR)Yes
Maximum current12 A
Surge energy rating789 J
Response time8 ms
Noise level45 dB
Surge protectionYes
Surge protection featuresA/V, Network
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Battery replacement, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet typesNEMA 5-15R
AC outlets quantity10 AC outlet(s)
Ethernet LAN (RJ-45) ports2
Cabling technology10/100/1000Base-T(X)

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load2.5 min
Battery recharge time16 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Replacement battery cartridgeAPCRBC123

Design

Form factorTower
Product colourBlack
Cable length1.8 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 15240 m

Packaging content

Cables includedUSB cable
ManualYes

Certificates

Compliance certificatesREACH, RoHS
CertificationFCC 15 / B, NOM, TÜV

Sustainability

Doesn't containMercury
Sustainability complianceYes

Weight & dimensions

Width100 mm
Depth382 mm
Height250 mm
Weight10.2 kg

Packaging data

Package width227 mm
Package depth491 mm
Package height348 mm
Package weight11.9 kg
