PRO X670-P WIFI
Model PRO X670-P WIFIPart no. 911-7D67-001EAN 4711377004695
41 specifications
- SpeedWi-Fi 6E (802.11ax)
- Processor manufacturerAMD
- Supported memory typesDDR5-SDRAM
- Supported storage drive interfacesM.2, SATA
- USB 2.0 connectors4
- Ethernet LANYes
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Processor manufacturer
- AMD
- Supported memory types
- DDR5-SDRAM
- Supported storage drive interfaces
- M.2, SATA
- USB 2.0 connectors
- 4
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- PRO X670-P WIFI
- Part numbers
- 911-7D67-001, PRO X670-P WIFI, 7D67-001R
- EAN / UPC
- 4711377004695
- Also known as
- MSI PRO X670-P WIFI AMD X670 Socket AM5 ATX
Specifications
41 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA connectors | 6 |

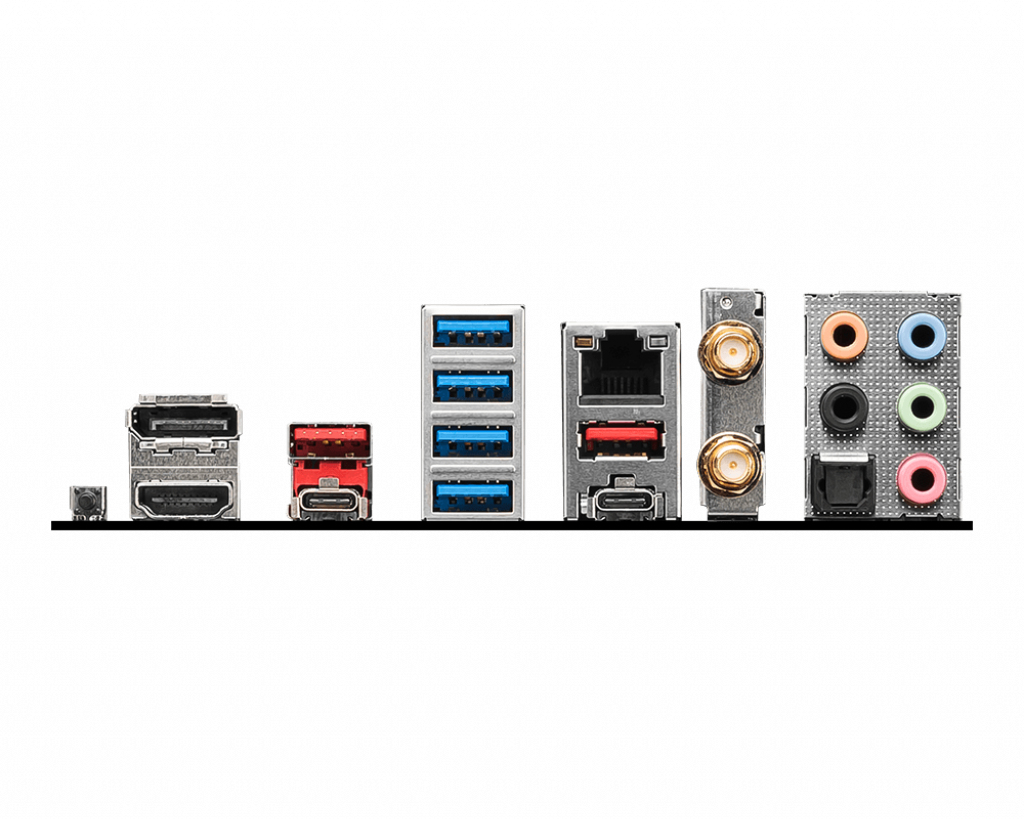

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X670 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 4 |
