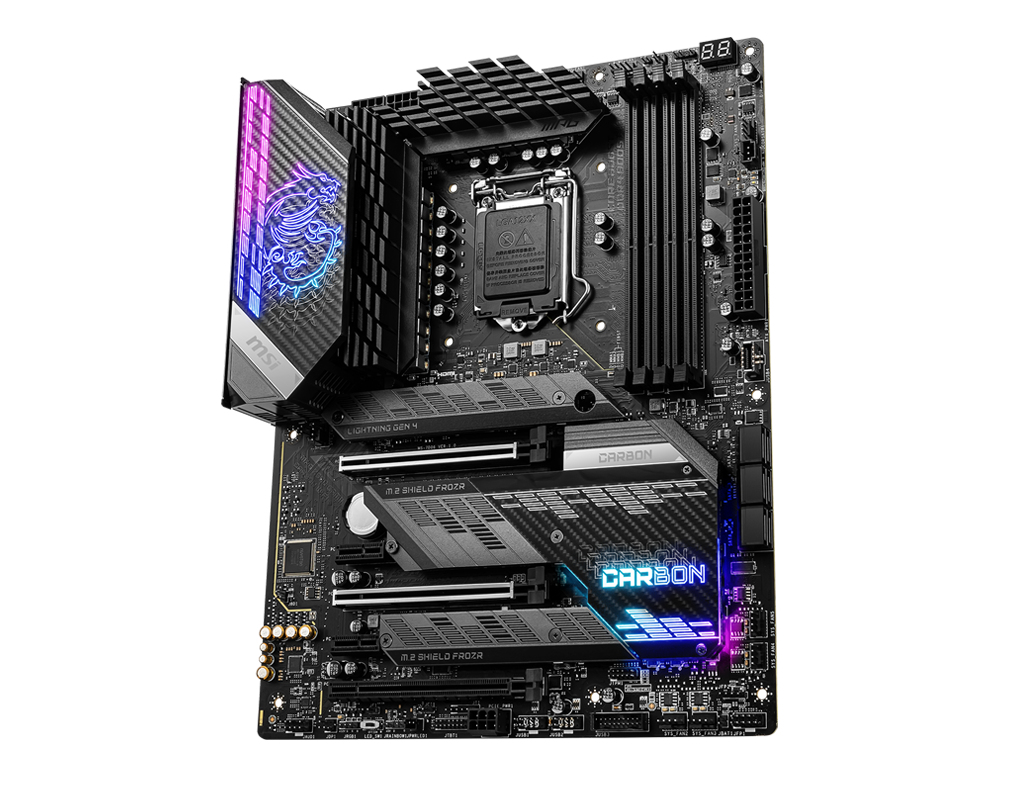

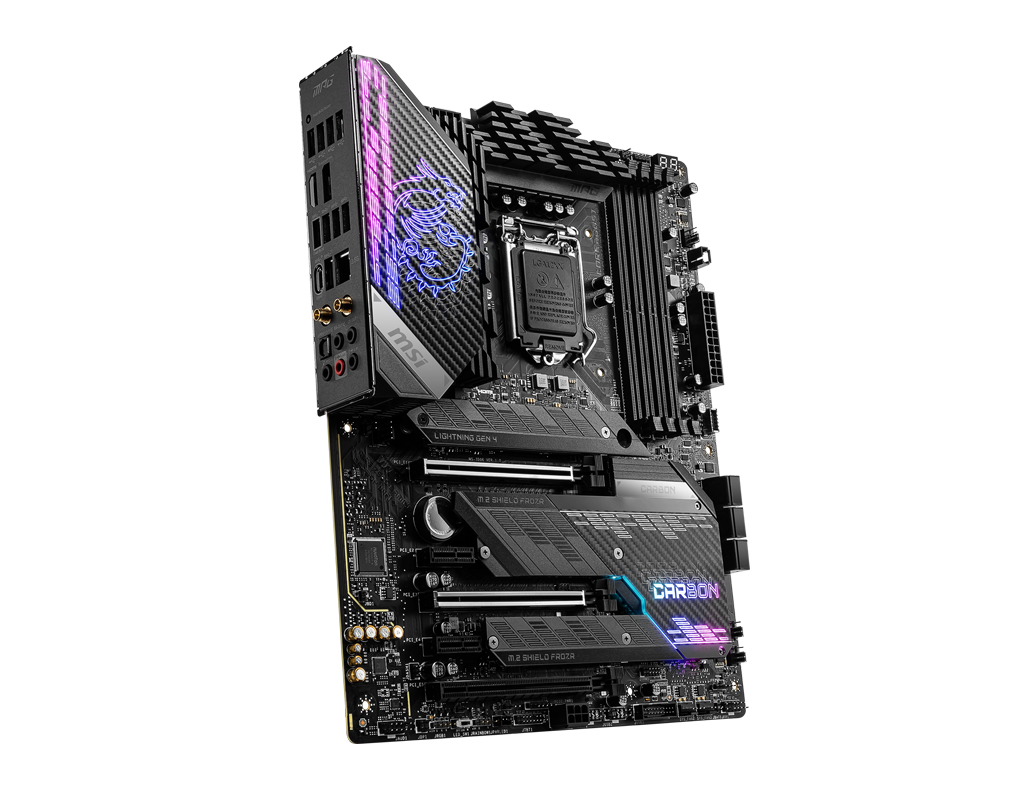

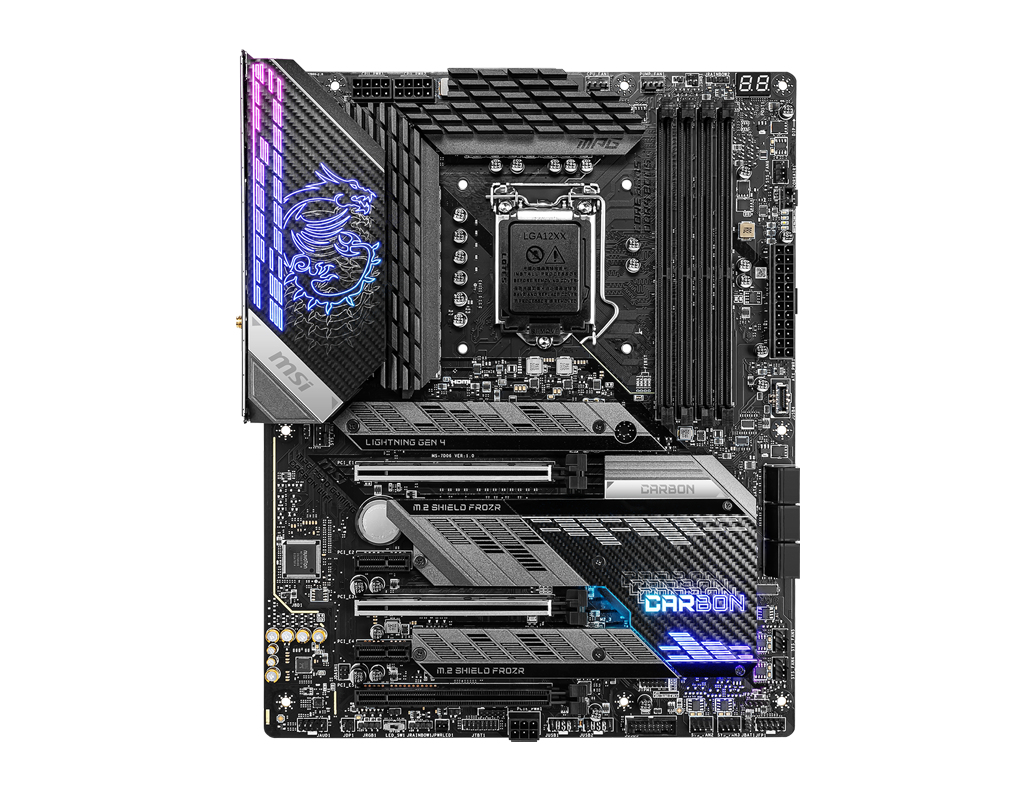

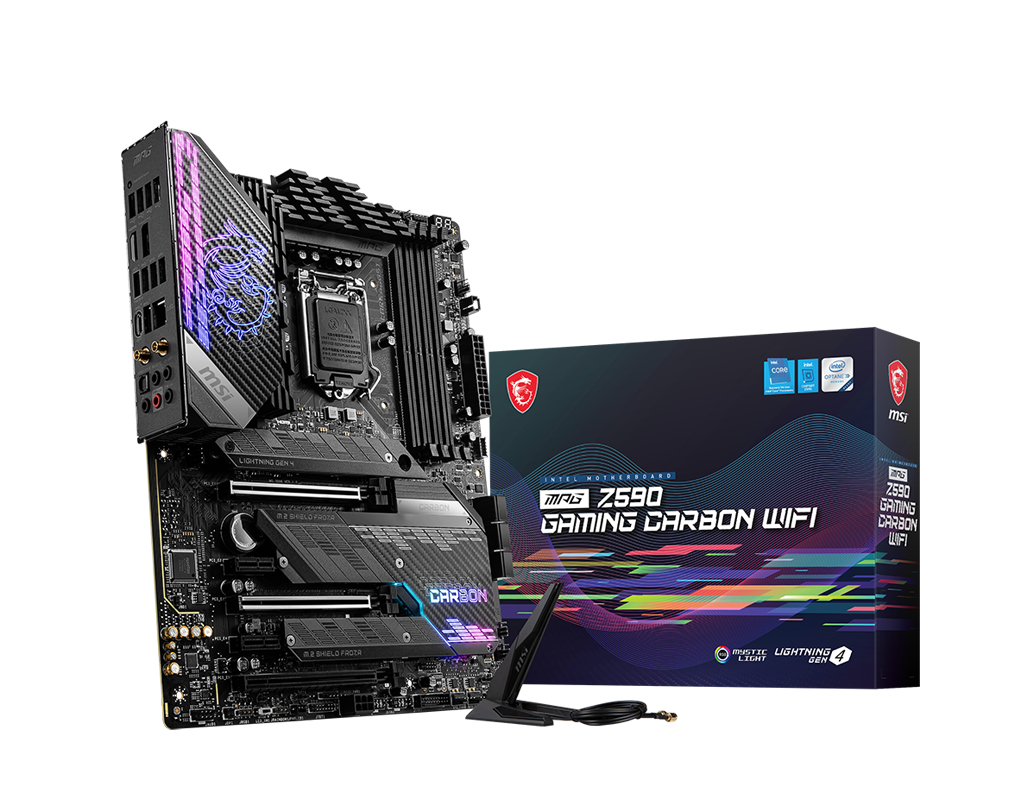

MPG Z590 GAMING CARBON WIFI

Model MPG Z590 GAMING CARBON WIFIEAN 824142242155

77 specifications

Overview

Brand: MSI
Category: Motherboard
Model: MPG Z590 GAMING CARBON WIFI
Part number: MPG Z590 GAMING CARBON WIFI
EAN / UPC: 824142242155, 4719072800505
Also known as: MSI MPG Z590 GAMING CARBON WIFI motherboard Intel Z590 LGA 1200 (Socket H5) ATX

77 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400,4533,4600,4800,5000,5200,5333 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	3-Way CrossFireX
Maximum resolution	4096 x 2160 pixels
DirectX version	12.0

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	6
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.0b
DVI-D ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	2

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64
