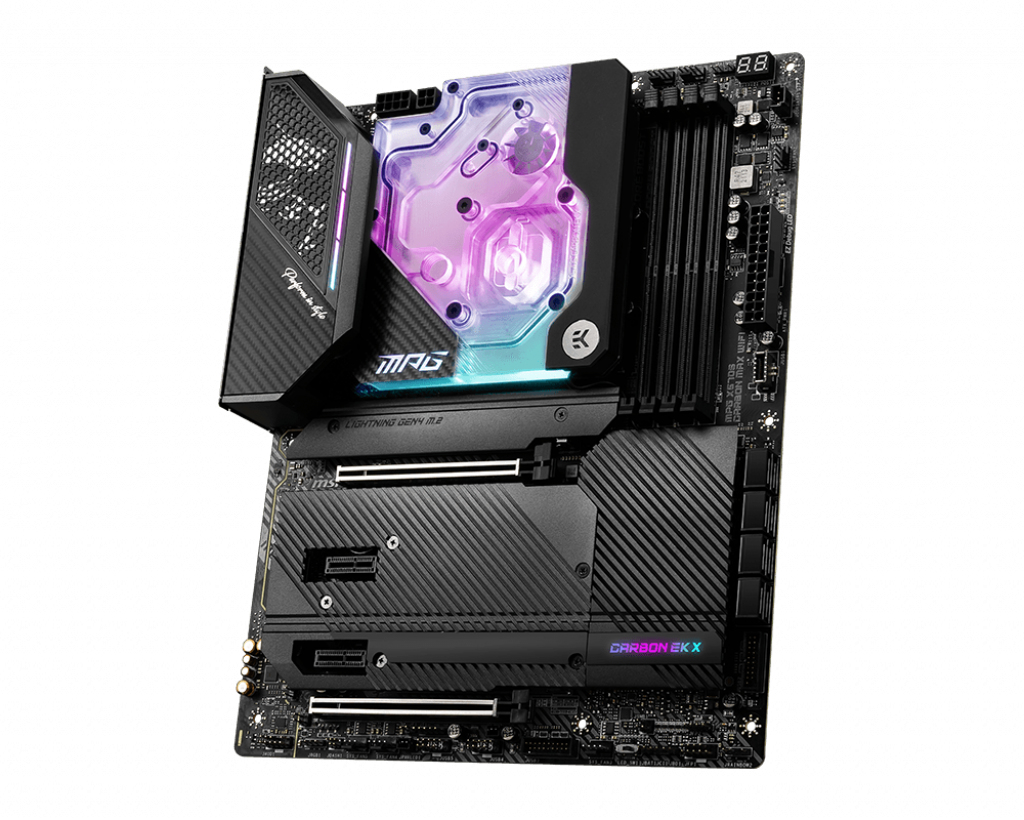

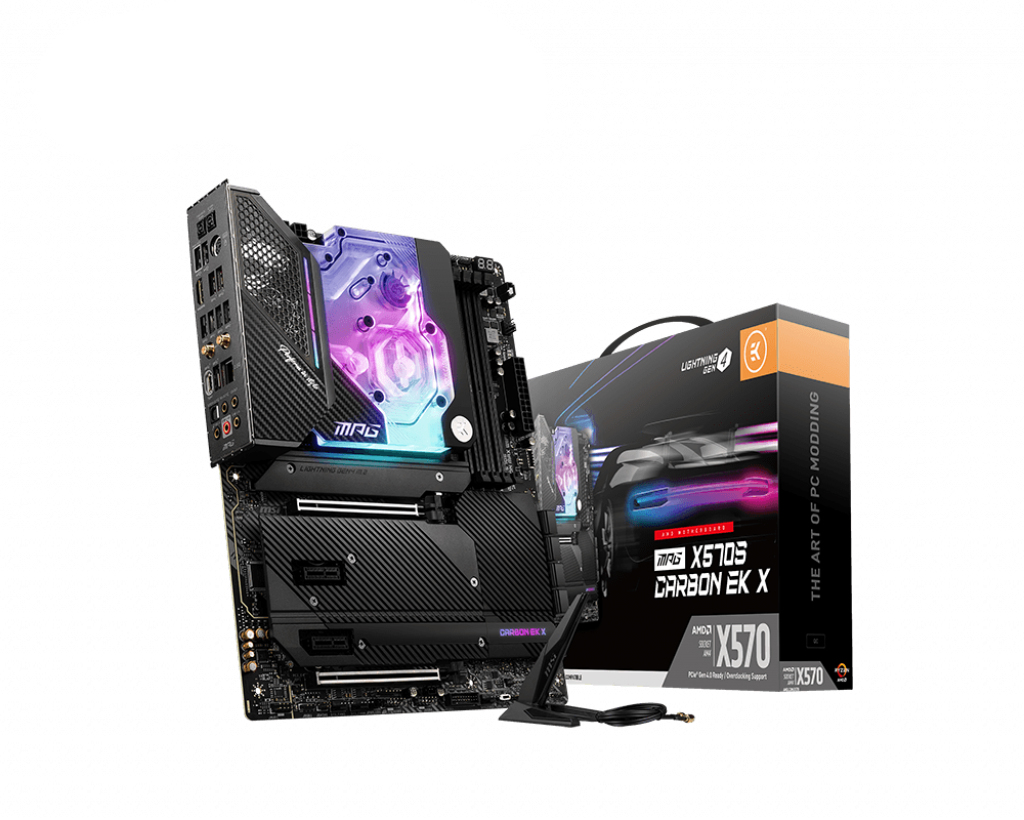

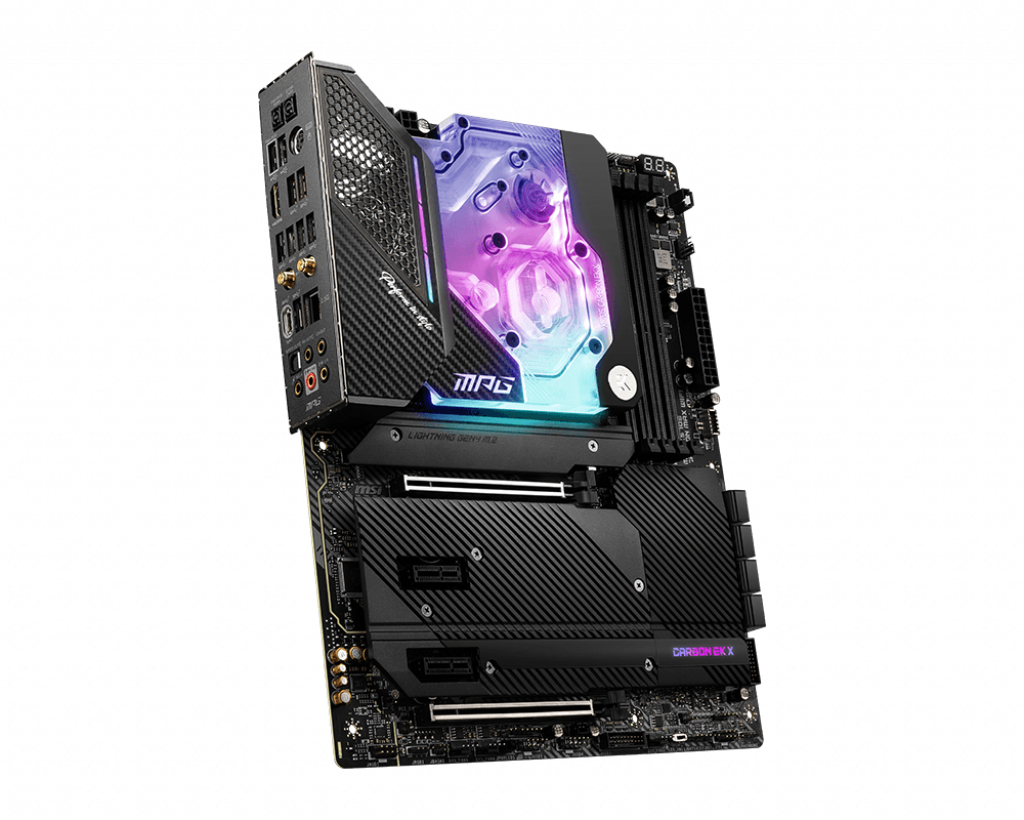

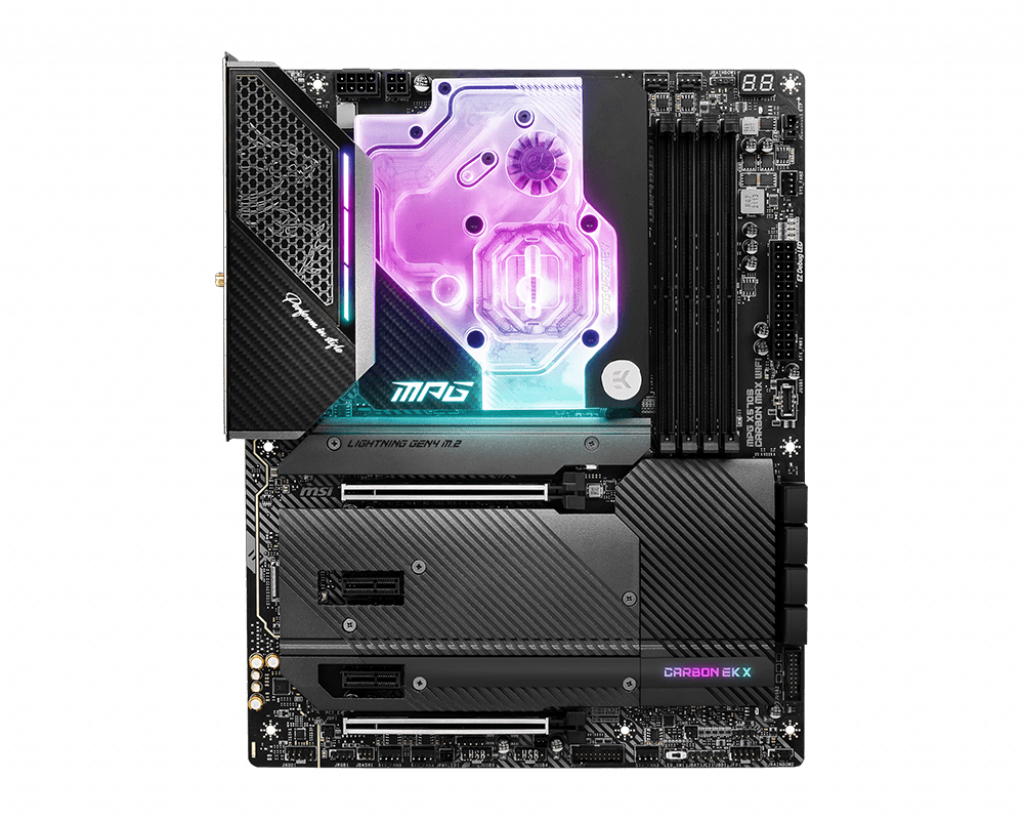

MSI MPG X570S CARBON EK X

MSI MPG X570S CARBON EK X

Model MPG X570S CARBON EK XEAN 4719072879136

70 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Weight1 kg
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportCrossfire
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Weight
1 kg
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Crossfire
Brand
MSI
Category
Motherboard
Model
MPG X570S CARBON EK X
Part number
MPG X570S CARBON EK X
EAN / UPC
4719072879136
Also known as
MSI MPG X570S CARBON EK X motherboard AMD X570 Socket AM4 ATX

Specifications

70 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3600,4000,4266,4400,5100,5300 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 10

Graphics

Parallel processing technology supportCrossfire

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX210
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X570
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Number of mounting holes9
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 slots2
Number of M.2 (M) slots4

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes
Clear CMOS buttonYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm
Height295 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Weight1 kg
