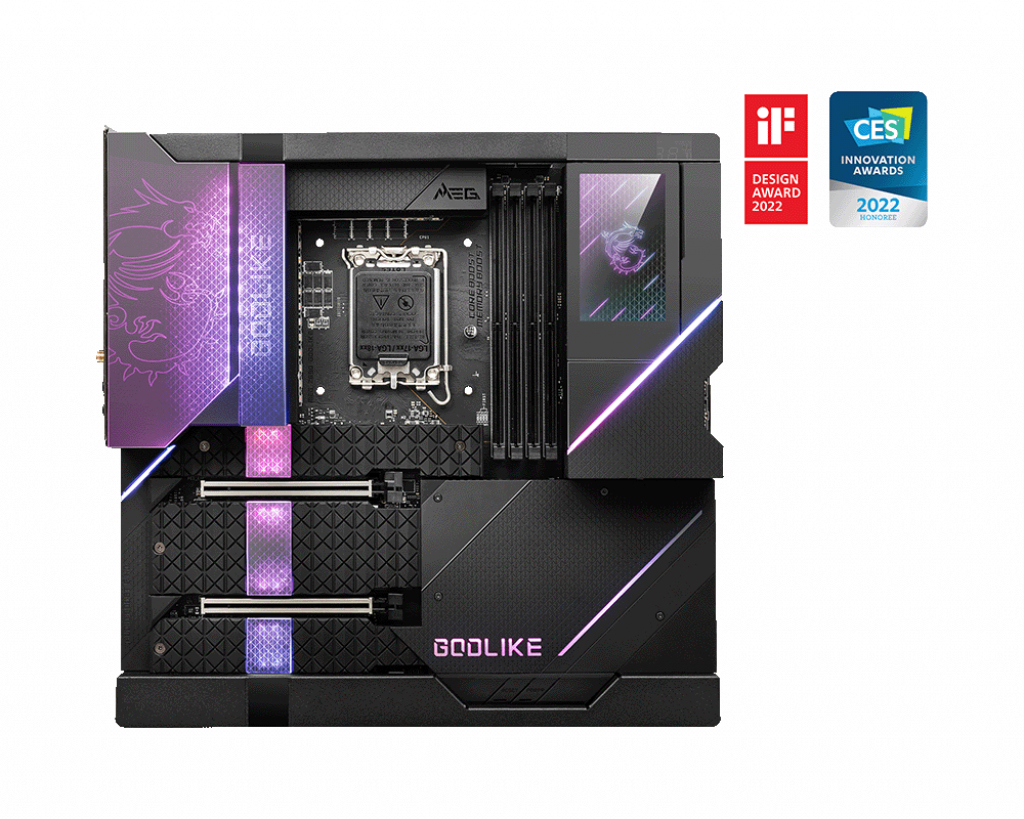

MEG Z690 GODLIKE
Model MEG Z690 GODLIKEPart no. 7D26-001REAN 4719072886486
41 specifications
- SpeedWi-Fi 6E (802.11ax)
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Parallel processing technology supportCrossfire, SLI
- USB 2.0 connectors4
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Parallel processing technology support
- Crossfire, SLI
- USB 2.0 connectors
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- MEG Z690 GODLIKE
- Part numbers
- 7D26-001R, MEG Z690 GODLIKE, BZ04-001R
- EAN / UPC
- 4719072886486
- Also known as
- MSI MEG Z690 GODLIKE Intel Z690 LGA 1700 Extended ATX
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i9 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 6666 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Crossfire, SLI |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 6 |
| Thunderbolt headers | 2 |

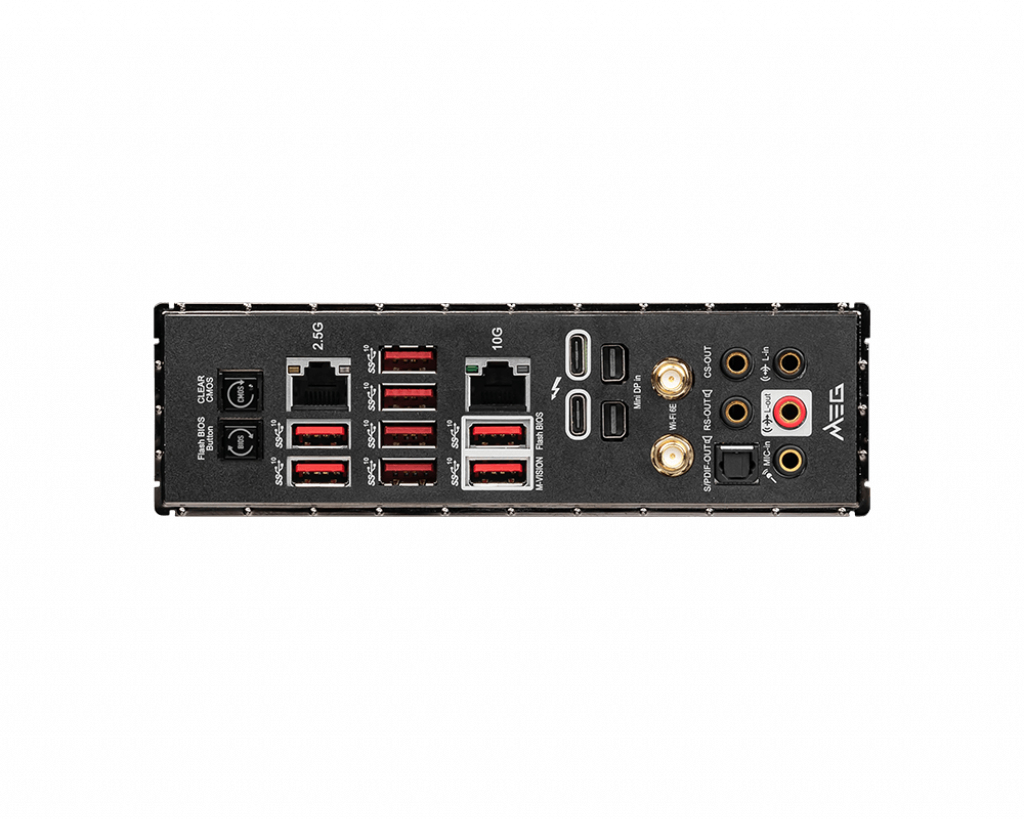

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller | Intel I225-V, Marvell AQtion AQC113CS |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z690 |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 6 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 310 mm |
