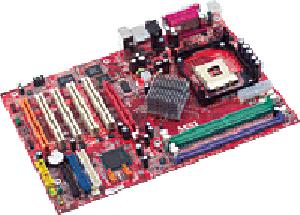

MB MSI INTEL S478 865PE NEO2-V ATX
Model MB MSI INTEL S478 865PE NEO2-V ATXPart no. 865PE-NEO2-V
10 specifications
- Processor manufacturerIntel
- Maximum internal memory4 GB
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 4 GB
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI INTEL S478 865PE NEO2-V ATX
- Part number
- 865PE-NEO2-V
- Also known as
- MSI MB INTEL S478 865PE NEO2-V ATX Socket 478
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8100C.Integrated Fast Ethernet MAC and PHY in one chip.Supports 10Mb/s, 100Mb/s auto-negotiation operation. |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V not supported).Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 295 x 210 |
| Audio output | AC'97 link controller integrated in ICH5 6 channels software audio codec ALC655. |
| I/O ports | - 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port COM1 - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear * 4/ Front * 4) - 1 Line-In/Line-Out/Mic-In port - 1 RJ45 LAN jack - 1 RCA SPDIF Out |
