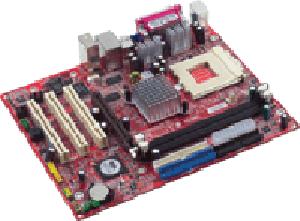

MB MSI AMD SA KM3M-V M-ATX
Model MB MSI AMD SA KM3M-V M-ATXPart no. KM3M-V
12 specifications
- Processor manufacturerAMD
- Maximum internal memory2 GB
- Maximum graphics card memory32 MB
- Motherboard form factormicro ATX
- Expansion slots1 AGP 4X; 3 PCI; 8 USB
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 2 GB
- Maximum graphics card memory
- 32 MB
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 AGP 4X; 3 PCI; 8 USB
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI AMD SA KM3M-V M-ATX
- Part number
- KM3M-V
- Also known as
- MSI MB AMD SA KM3M-V M-ATX Socket A (462) micro ATX
Specifications
12 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Networking features | VIA VT8237 integrated MAC + VIA 6103 PHY. |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 AGP 4X; 3 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 245 x 192 |
| Audio output | VIA 1617A Codec 5.1 Channel AC'97 software audio |
| Graphics controller | Integrated ProSavage8(tm) 2D/3D Graphic Controller |
| I/O ports | - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 2 serial port (COM1 + Pin-out) and 1 VGA port - 1 parallel port supports SPP/EPP/ECP mode - 8 USB ports (Rear x 4 / Front x 4) - 1 Line-In/Line-Out/Mic-In port - 1 LAN RJ45 connector - 1 IrDA connector for SIR/CIR/ASKIR/HPS |
