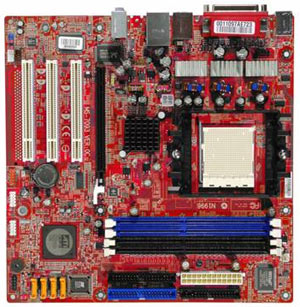

MB MSI AMD S939 RS480M2-IL Bulk m-ATX
Model MB MSI AMD S939 RS480M2-IL Bulk m-ATXPart no. RS480M2-IL
10 specifications
- Processor manufacturerAMD
- Maximum internal memory4 GB
- Motherboard form factormicro ATX
- Expansion slots1 PCI-E 16X; 3 PCI; 8 USB
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 4 GB
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 PCI-E 16X; 3 PCI; 8 USB
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI AMD S939 RS480M2-IL Bulk m-ATX
- Part number
- RS480M2-IL
- Also known as
- MSI MB AMD S939 RS480M2-IL Bulk m-ATX Socket 939 micro ATX
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8100C Supports 10/100 Mb/s auto-negotiation operation |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI-E 16X; 3 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 250 |
| Audio output | 6 Channel software audio codec Realtek ALC658C |
| I/O ports | - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial ports COM1 - 1 VGA port - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 3 audio ports in vertical (Line-out, Line-in, MIC) - 1 IEEE 1394 6pin out - 1 RJ-45 jack |
