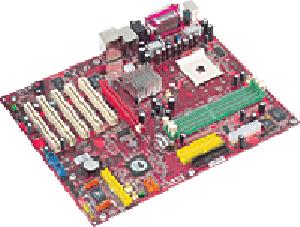

MB MSI AMD S754 K8T NEO FSR ATX
Model MB MSI AMD S754 K8T NEO FSR ATXPart no. K8T NEO-FSR
9 specifications
- Processor manufacturerAMD
- Maximum internal memory3 GB
- Motherboard form factorATX
- Expansion slotsAGP 8X; 5 PCI; 8 USB
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 3 GB
- Motherboard form factor
- ATX
- Expansion slots
- AGP 8X; 5 PCI; 8 USB
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI AMD S754 K8T NEO FSR ATX
- Part number
- K8T NEO-FSR
- Also known as
- MSI MB AMD S754 K8T NEO FSR ATX Socket 754
Specifications
9 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8110S Dual layout Integrated Fast Ethernet MAC and PHY in one chip. |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | AGP 8X; 5 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Audio output | 6 channels software audio codec RealTek ALC655 |
| I/O ports | 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial ports COM1 - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 3 audio ports in vertical (Line-out, Line-in, MIC) - 1 SPDIF out - 1 RJ-45 jack - 1 IrDA connector for SIR/ASKIR/HPSIR |
