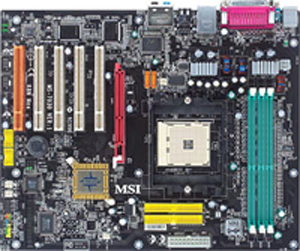

MB MSI AMD S754 K8N NEO FSR ATX
Model MB MSI AMD S754 K8N NEO FSR ATXPart no. K8N NEO-FSR
9 specifications
- Processor manufacturerAMD
- Maximum internal memory3 GB
- Motherboard form factorATX
- Expansion slots1 AGP 8X; 5 PCI; 8 USB
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 3 GB
- Motherboard form factor
- ATX
- Expansion slots
- 1 AGP 8X; 5 PCI; 8 USB
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI AMD S754 K8N NEO FSR ATX
- Part number
- K8N NEO-FSR
- Also known as
- MSI MB AMD S754 K8N NEO FSR ATX Socket 754
Specifications
9 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | nVIDIA nForce3 NV Gigabit LAN controller Integrated Fast Ethernet MAC and PHY in one chip. |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 AGP 8X; 5 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Audio output | 7.1 channel audio codec RealTek ALC850. |
| I/O ports | 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supports SPP/EPP/ECP mode - 1 audio jack (5-in-1), coaxial/fibre SPDIF out - 1 IrDA connector for SIR/ASKIR/HPSIR - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 1 RJ45 LAN jack |
