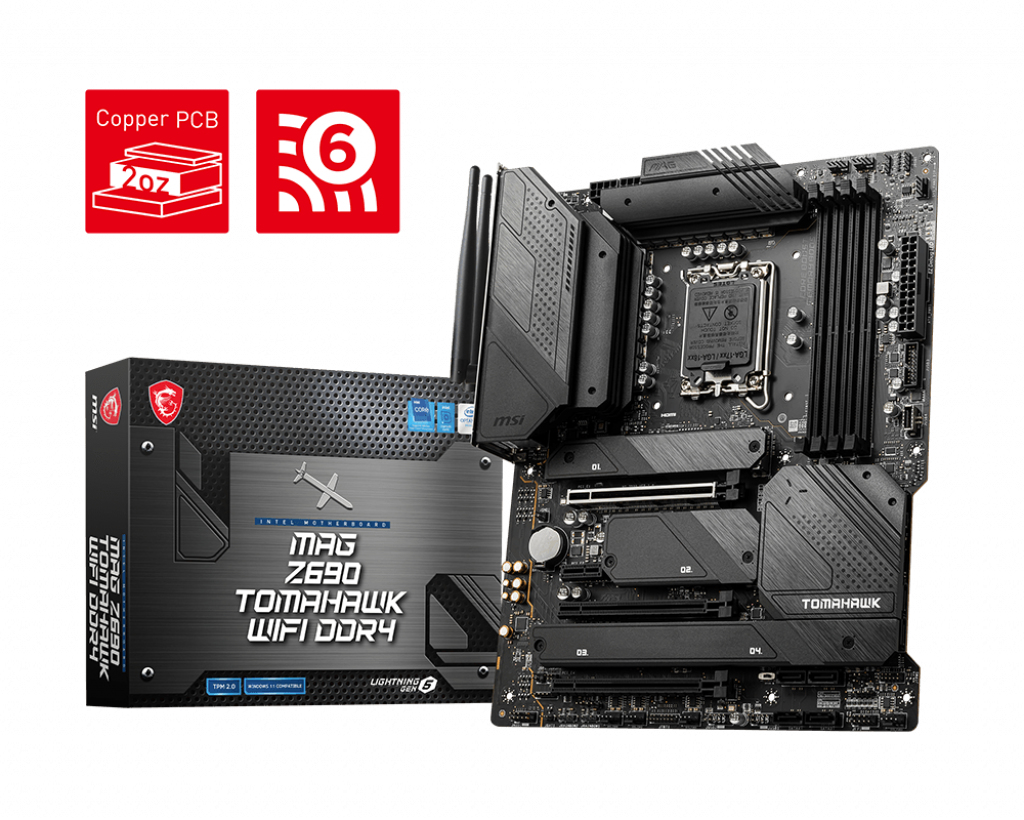

MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX

MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX

Model MAG Z690 TOMAHAWK WIFI DDR4 ATXPart no. MAG Z690 TOMAHAWK WIFI DDR4EAN 4719072886585

69 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Weight1 kg
  • ColourBlack
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Weight
1 kg
Colour
Black
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Brand
MSI
Category
Motherboard
Model
MAG Z690 TOMAHAWK WIFI DDR4 ATX
Part number
MAG Z690 TOMAHAWK WIFI DDR4
EAN / UPC
4719072886585
Also known as
MSI MAG Z690 TOMAHAWK WIFI DDR4 ATX Intel Z690 LGA 1700

Specifications

69 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Pentium® Gold

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2666,2933 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportCrossfire
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z690
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Product colourBlack

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI
BIOS memory size256 Mbit
System Management BIOS (SMBIOS) version3.4

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm
Height73 mm

Other features

mSATA ports quantity0
Weight1 kg
