MSI MAG Z590 TOMAHAWK WIFI

MSI MAG Z590 TOMAHAWK WIFI

Model MAG Z590 TOMAHAWK WIFIEAN 4719072800529

74 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Brand
MSI
Category
Motherboard
Model
MAG Z590 TOMAHAWK WIFI
Part numbers
MAG Z590 TOMAHAWK WIFI, 4719072800529, 601-7D08-050
EAN / UPC
4719072800529
Also known as
MSI MAG Z590 TOMAHAWK WIFI motherboard Intel Z590 LGA 1200 (Socket H5) ATX

Specifications

74 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1200 (Socket H5)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2666,2933,3200,4000,4400,4700,5333 MHz
Maximum internal memory128 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes

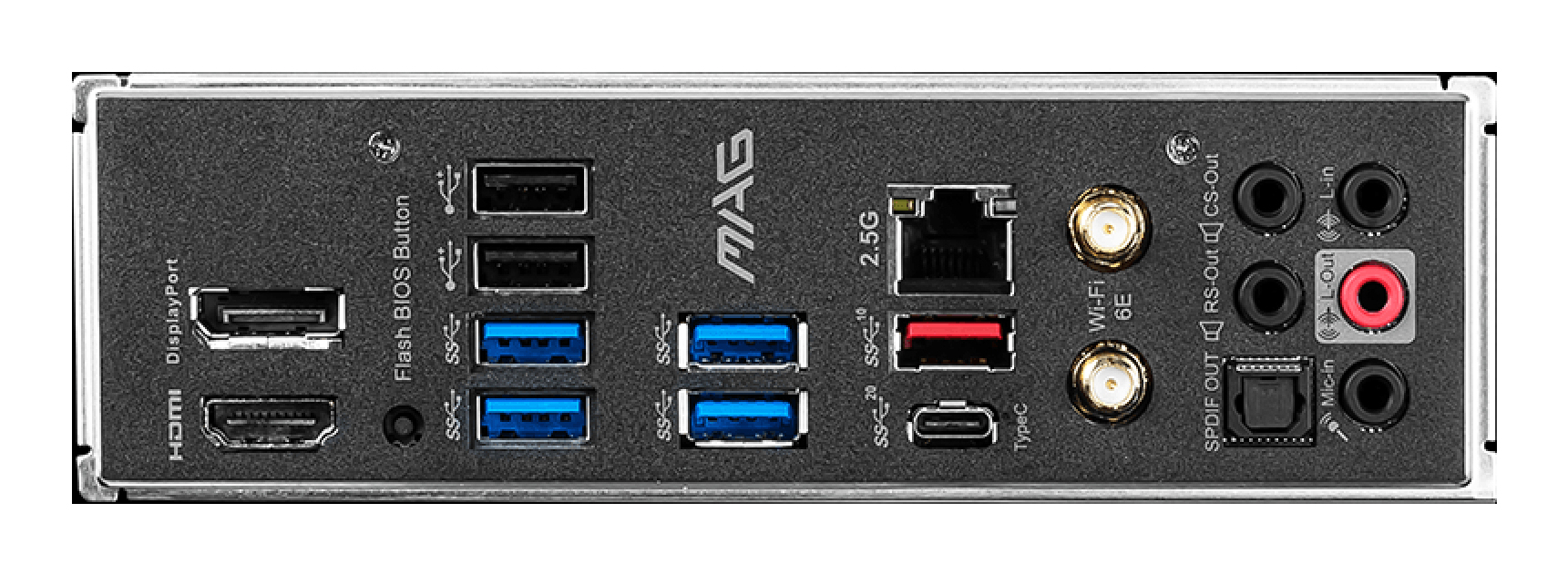

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.0b
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerIntel I225-V
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX210
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z590
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 slots2
Number of M.2 (M) slots3

BIOS

BIOS typeUEFI AMI
Clear CMOS jumperYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm
