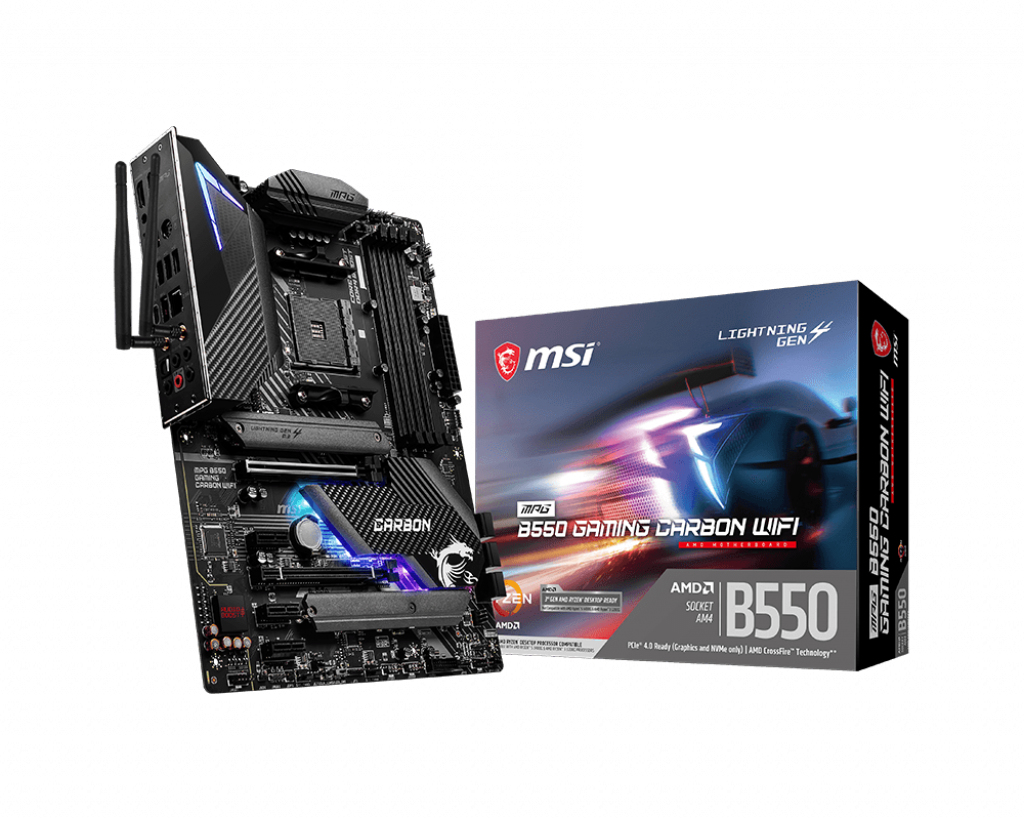

MSI AM4 B550 GAMING CARBON WIFI

MSI AM4 B550 GAMING CARBON WIFI

Model AM4 B550 GAMING CARBON WIFIPart no. 911-7C90-002

63 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID supportYes
  • Parallel processing technology supportCrossFire
  • USB 2.0 connectors4
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID support
Yes
Parallel processing technology support
CrossFire
USB 2.0 connectors
4
Brand
MSI
Category
Motherboard
Model
AM4 B550 GAMING CARBON WIFI
Part number
911-7C90-002
Also known as
MSI AM4 B550 GAMING CARBON WIFI AMD B550 Socket AM4 ATX

Specifications

63 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466,4533,4600,4866,5000,5100 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology supportCrossFire

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Audio connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelIntel Wi-Fi 6 AX200
BluetoothYes
Bluetooth version5.1

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B550
Audio chipRealtek ALC1200
Audio output channels7.1 channels
PC health monitoringFan, Temperature
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2

Weight & dimensions

Width304 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Supported DIMM module capacities128GB
