GIGABYTE Z790 S WIFI DDR4

GIGABYTE Z790 S WIFI DDR4

Model Z790 S WIFI DDR4EAN 889523042694

68 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • ColourBlack
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Colour
Black
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
GIGABYTE
Category
Motherboard
Model
Z790 S WIFI DDR4
Part number
Z790 S WIFI DDR4
EAN / UPC
889523042694
Also known as
GIGABYTE Z790 S WIFI DDR4 motherboard Intel Z790 LGA 1700 ATX

Specifications

68 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Maximum internal memory supported by processor128 GB

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,2933,3000,3200,3333,3466,3733,3866,4000,4266,4400,4533,4600,4800,5000,5066,5200,5333 MHz
Supported memory clock speed (max)5333 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors0
Front panel audio connectorYes
Front panel connectorYes
TPM connectorYes
RGB LED pin headerYes

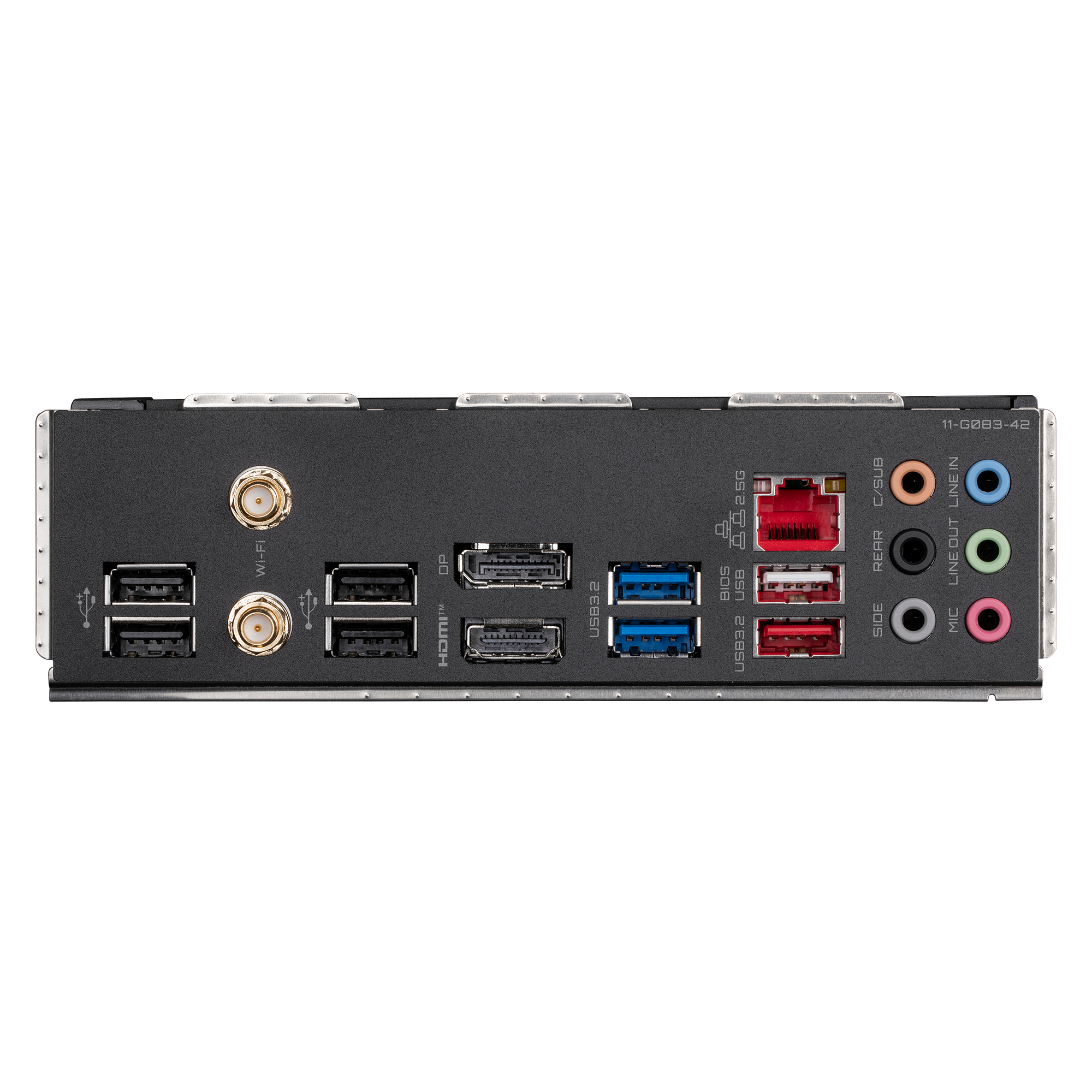

Rear panel I/O ports

USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.1

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z790
Audio output channels7.1 channels
Product colourBlack
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots1

BIOS

BIOS typeEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Desktop Management Interface (DMI) version2.0
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA

Other features

mSATA ports quantity0
