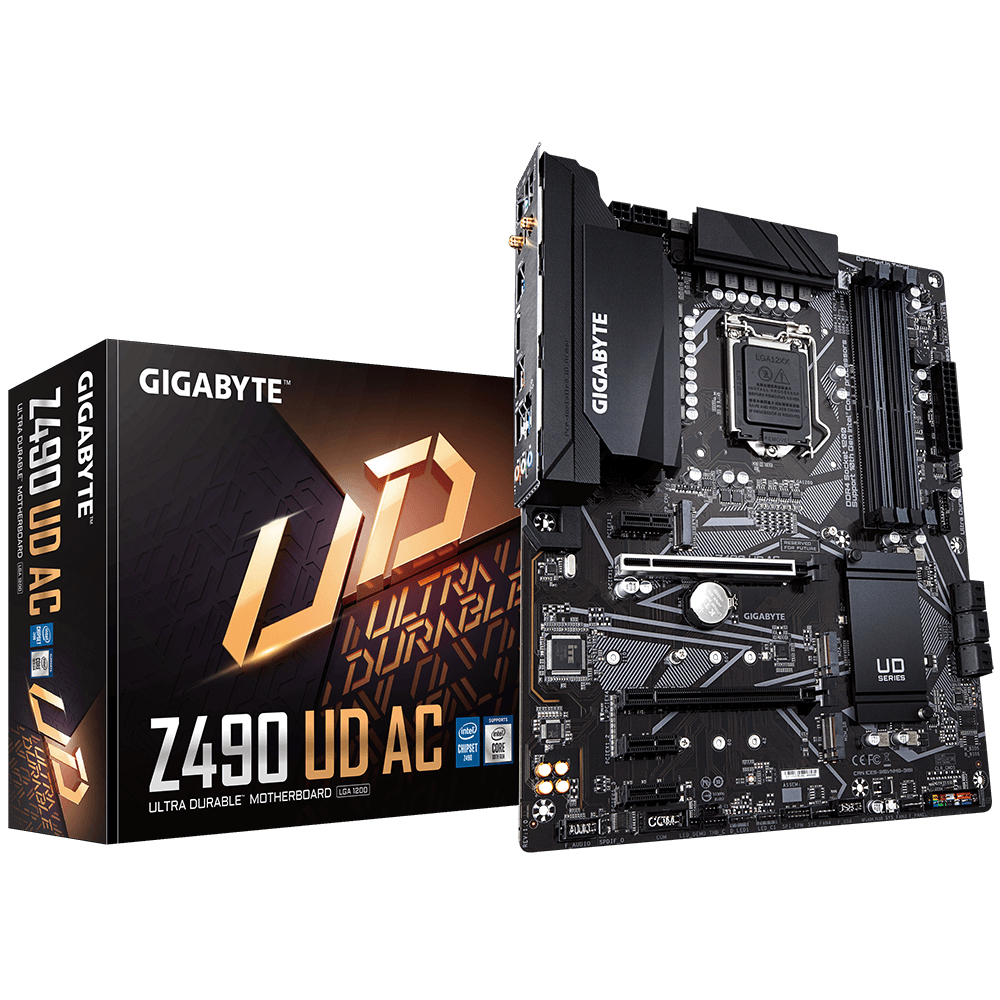

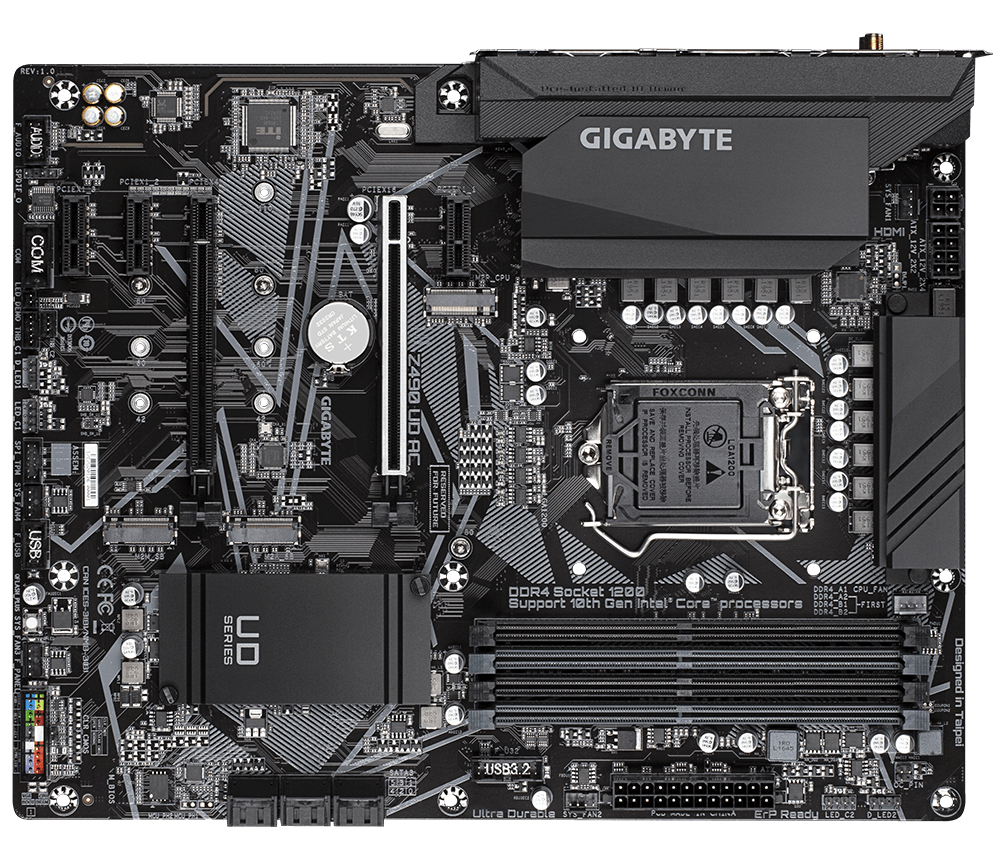

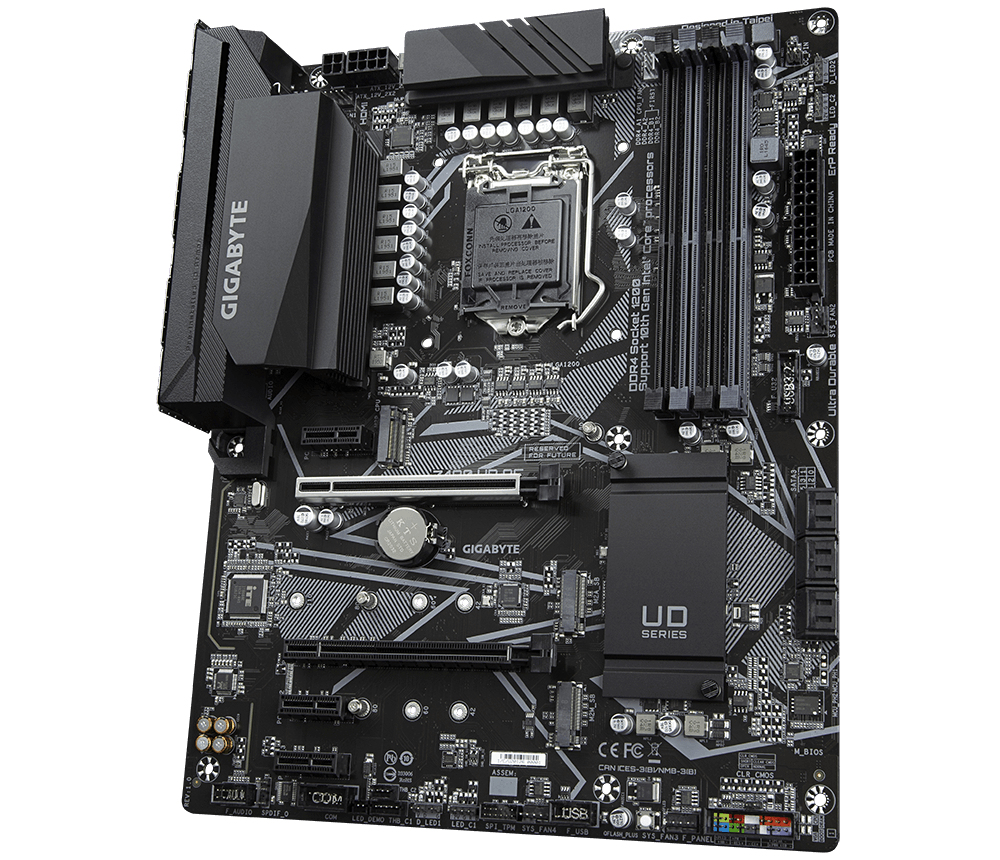

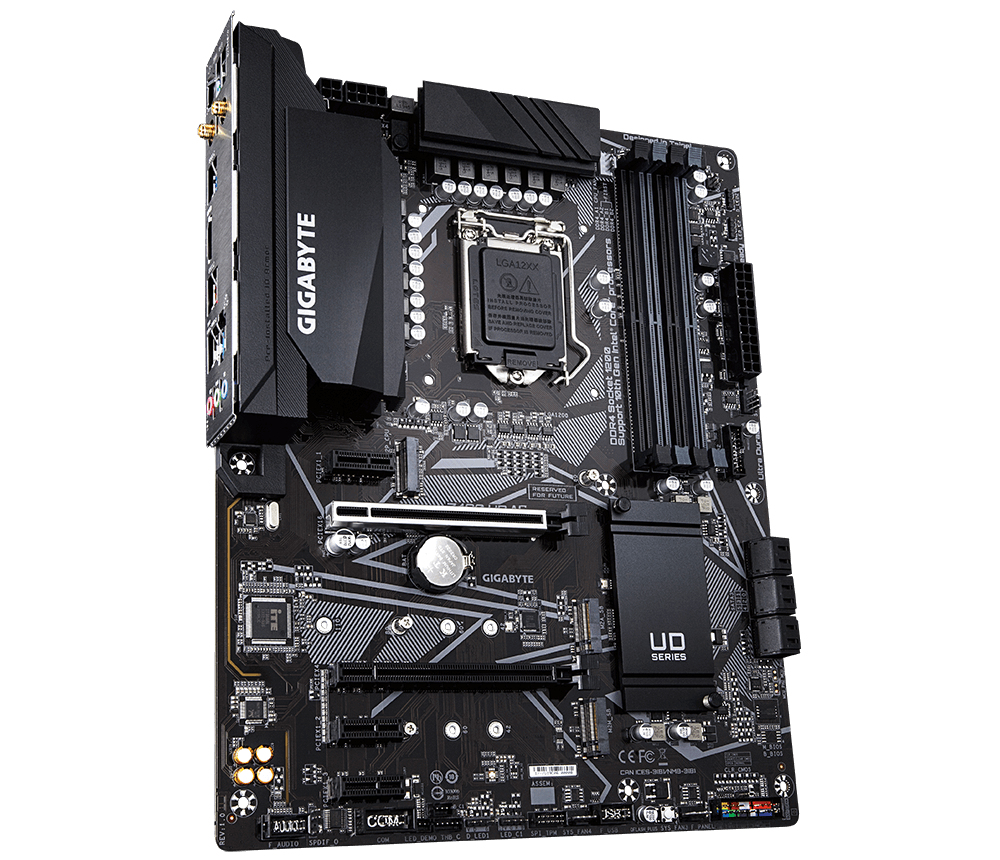

Z490 UD AC (rev. 1.0)

Model Z490 UD AC (rev. 1.0)Part no. GAZ49UDA-00-G

84 specifications

Overview

Brand: GIGABYTE
Category: Motherboard
Model: Z490 UD AC (rev. 1.0)
Part number: GAZ49UDA-00-G
Also known as: GIGABYTE Z490 UD AC (rev. 1.0) Intel Z490 LGA 1200 (Socket H5) ATX

84 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	2-Way CrossFireX, CrossFire
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Discrete graphics support	Yes

Specification	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Serial port headers	1
TPM connector	Yes
Thunderbolt headers	2
RGB LED pin header	Yes

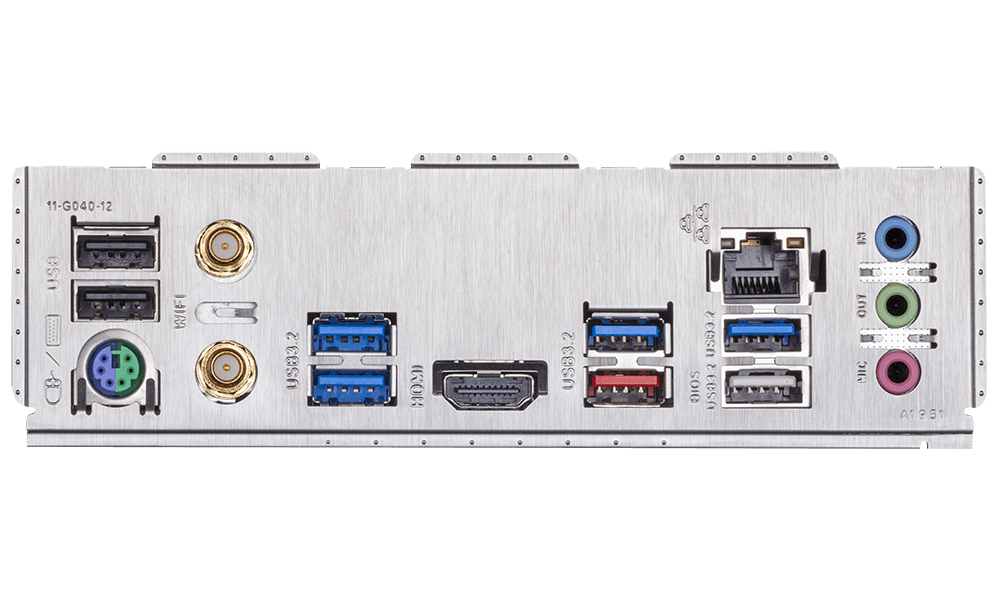

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
DVI-D ports quantity	0
Headphone outputs	1
Microphone in	Yes
WiFi-AP antenna jack	2
USB connector type	USB Type-A

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z490
Audio chip	Realtek ALC887
Audio output channels	7.1 channels
PC health monitoring	CPU, Fan, LED, Temperature, Voltage
Power source type	ATX

Specification	Value
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
