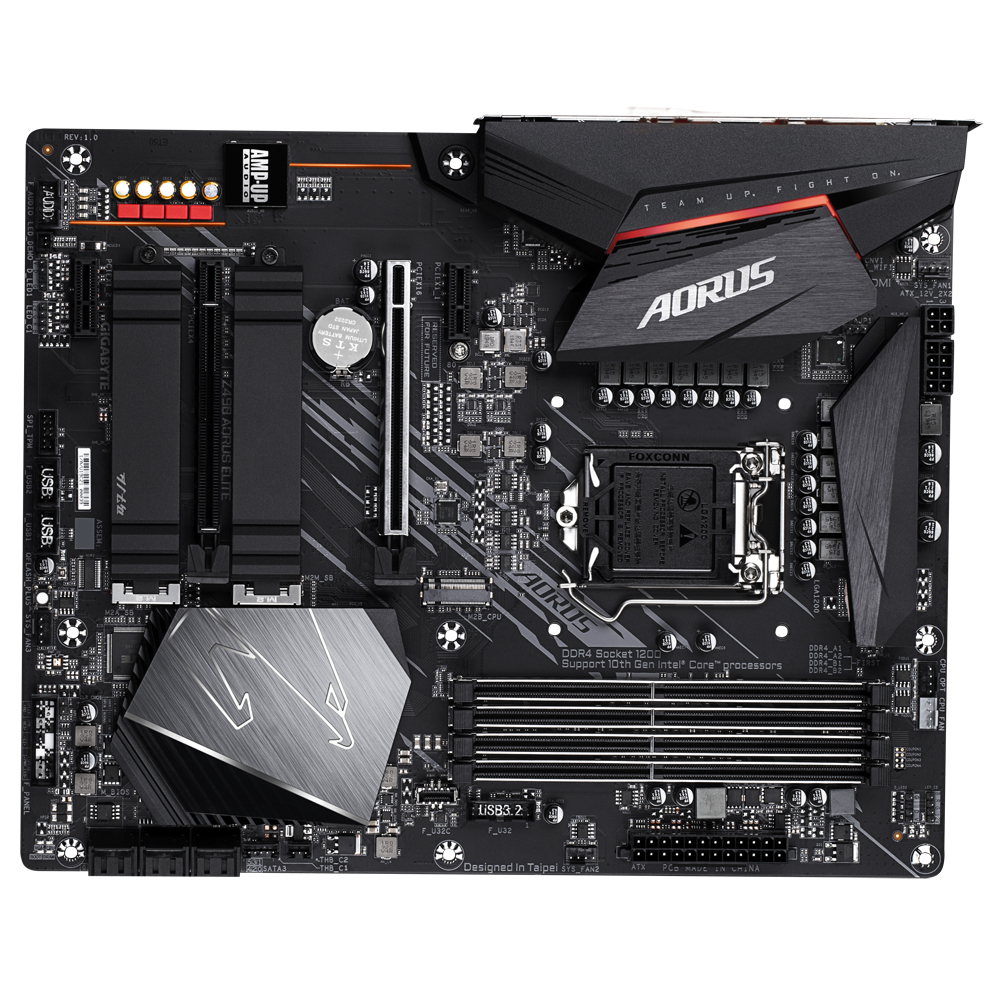

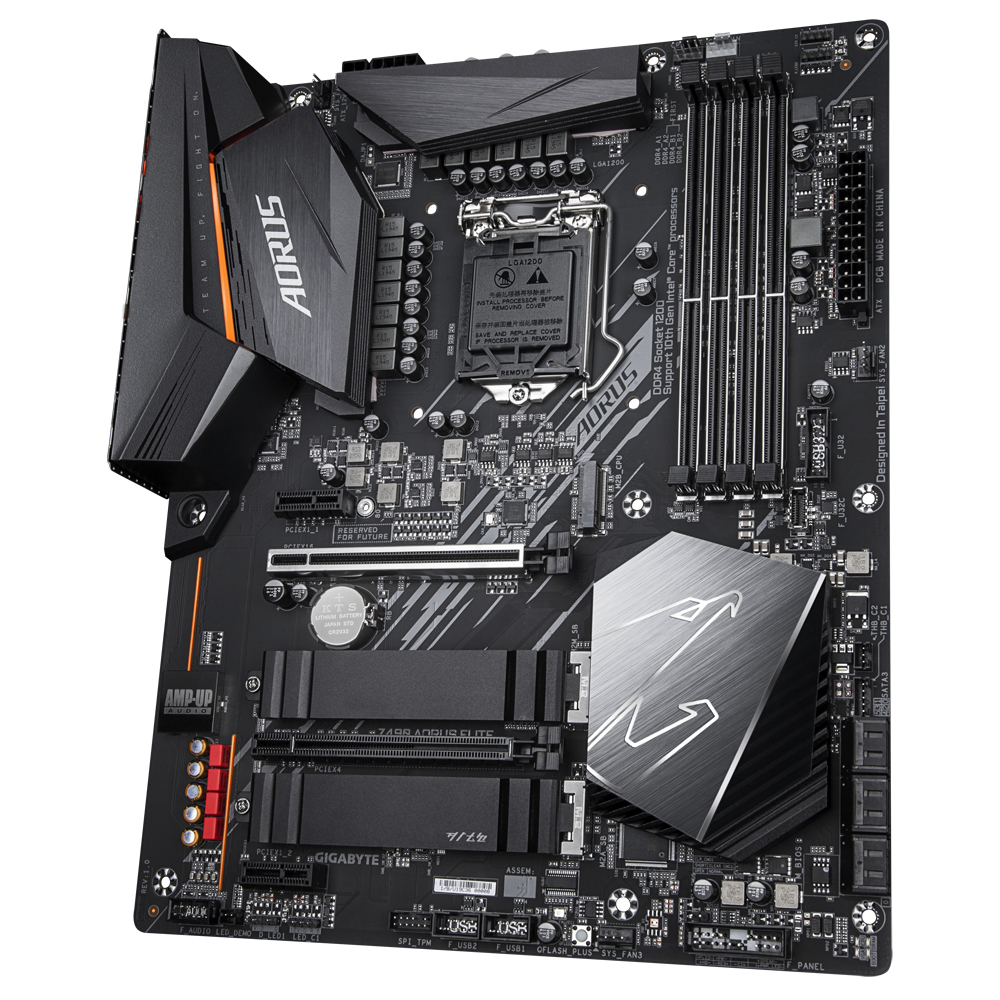

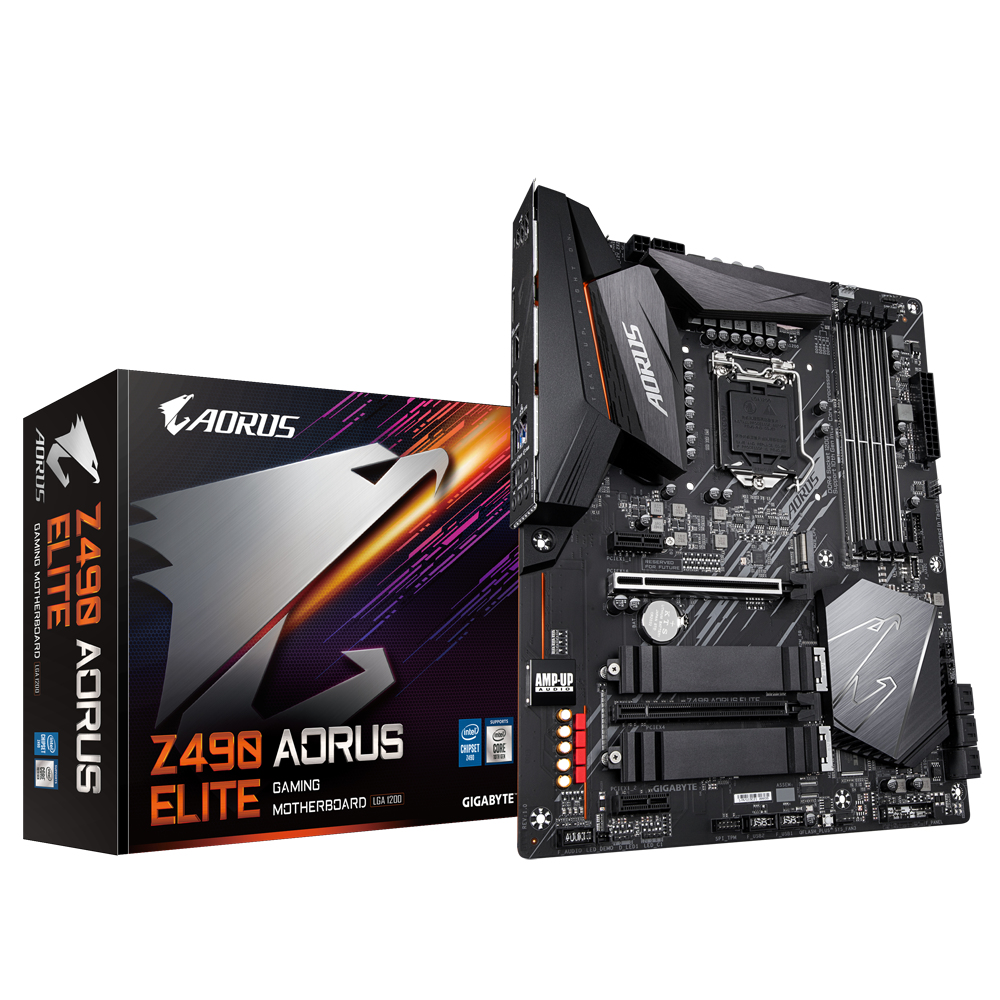

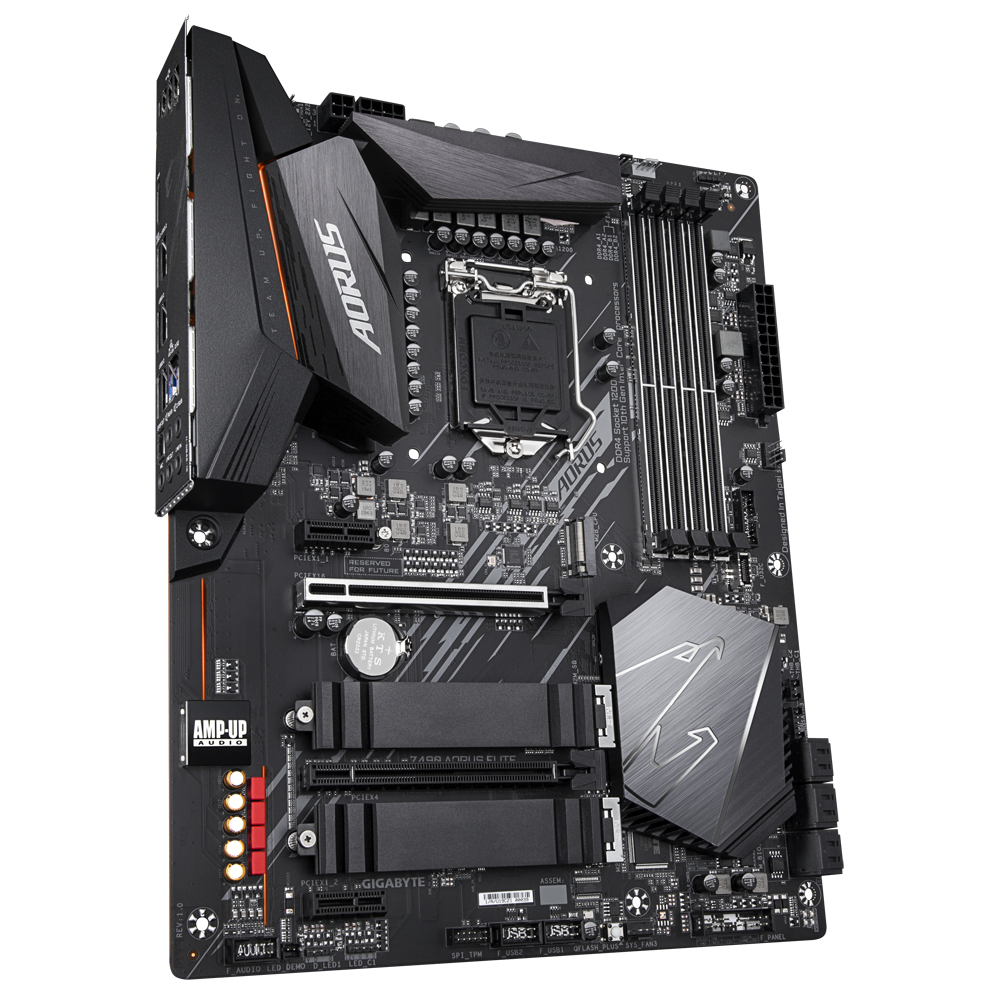

Z490 AORUS ELITE (rev. 1.0)
Model Z490 AORUS ELITE (rev. 1.0)Part no. GMZ49ELT-00-G
70 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- HDCPYes
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- HDCP
- Yes
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- Z490 AORUS ELITE (rev. 1.0)
- Part number
- GMZ49ELT-00-G
- Also known as
- GIGABYTE Z490 AORUS ELITE (rev. 1.0) Intel Z490 LGA 1200 (Socket H5) ATX
Specifications
70 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| HDCP | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 2 |
| RGB LED pin header | Yes |

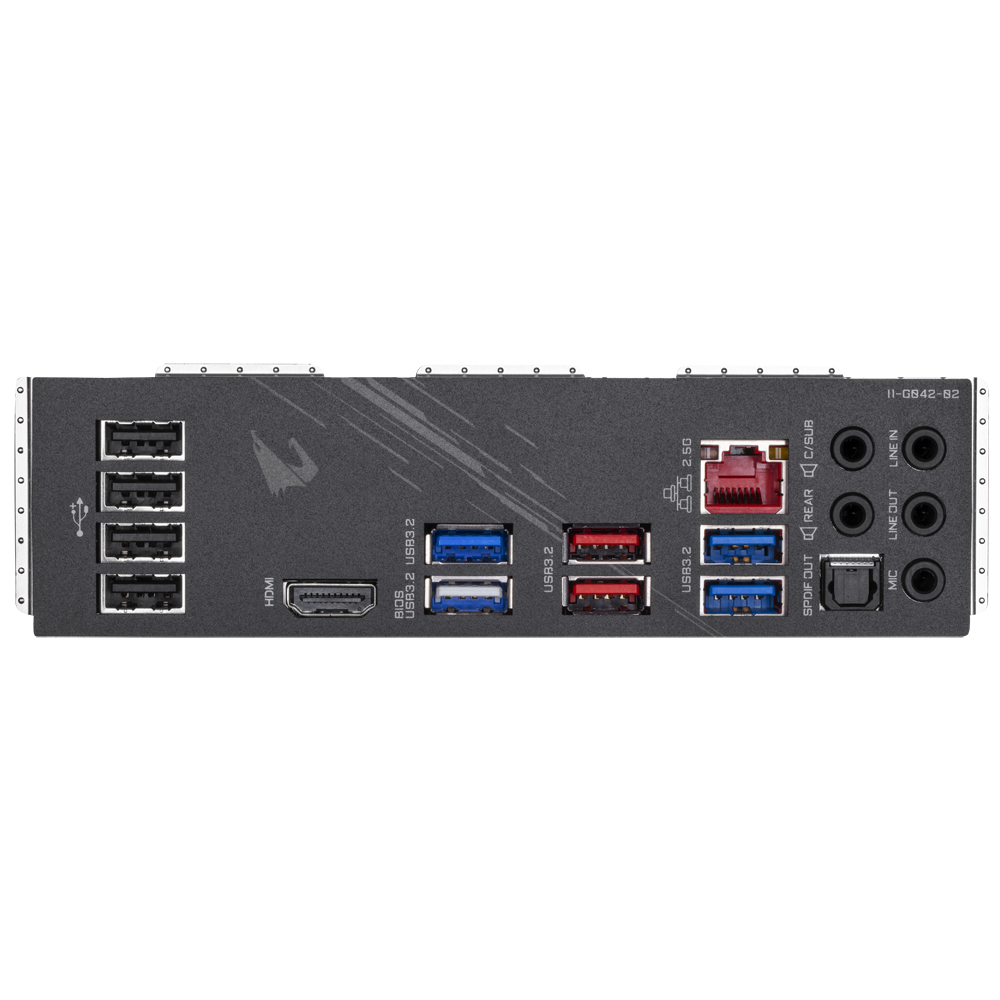

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
