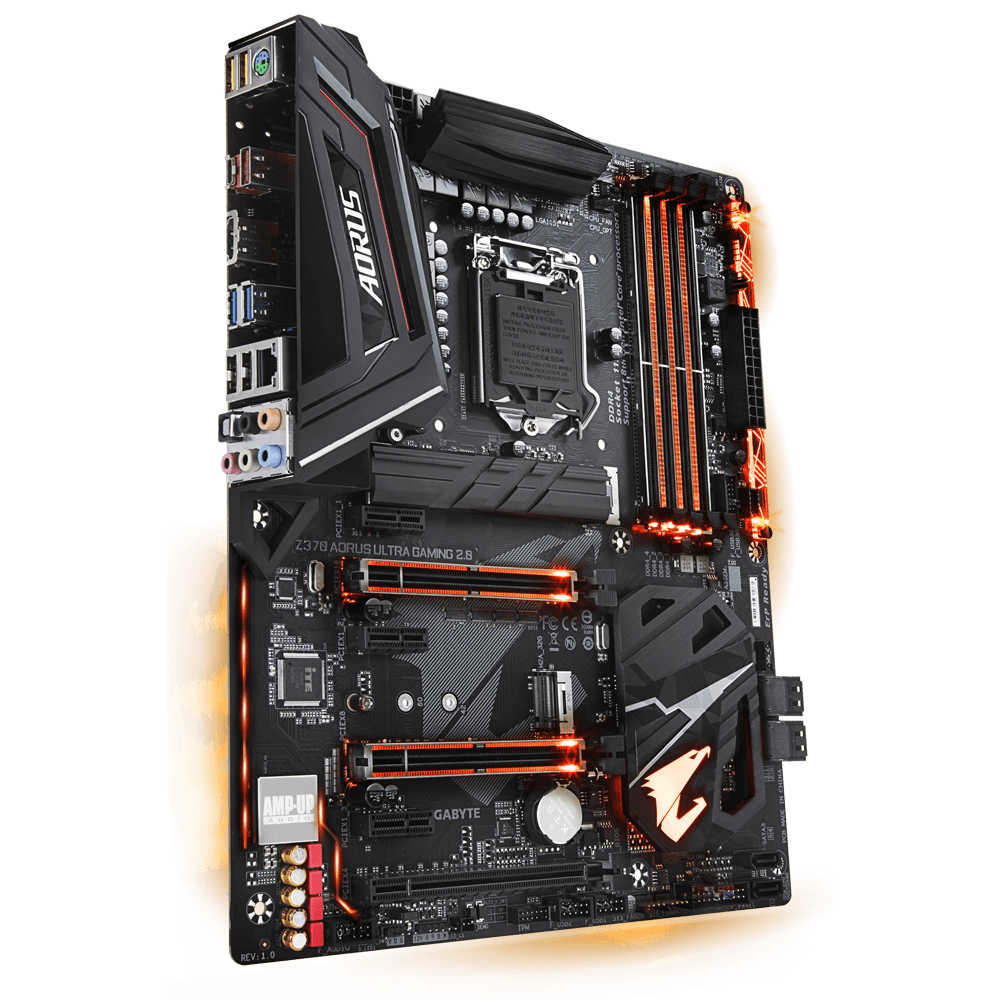

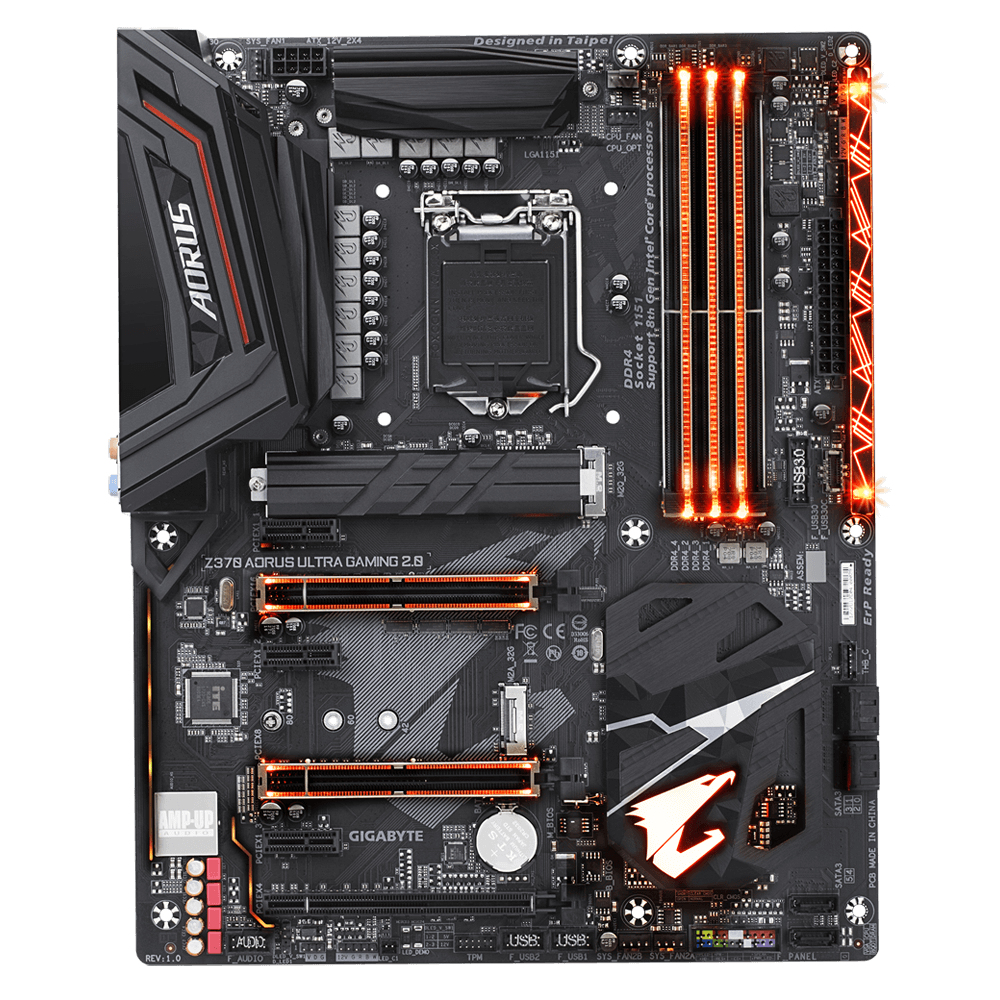

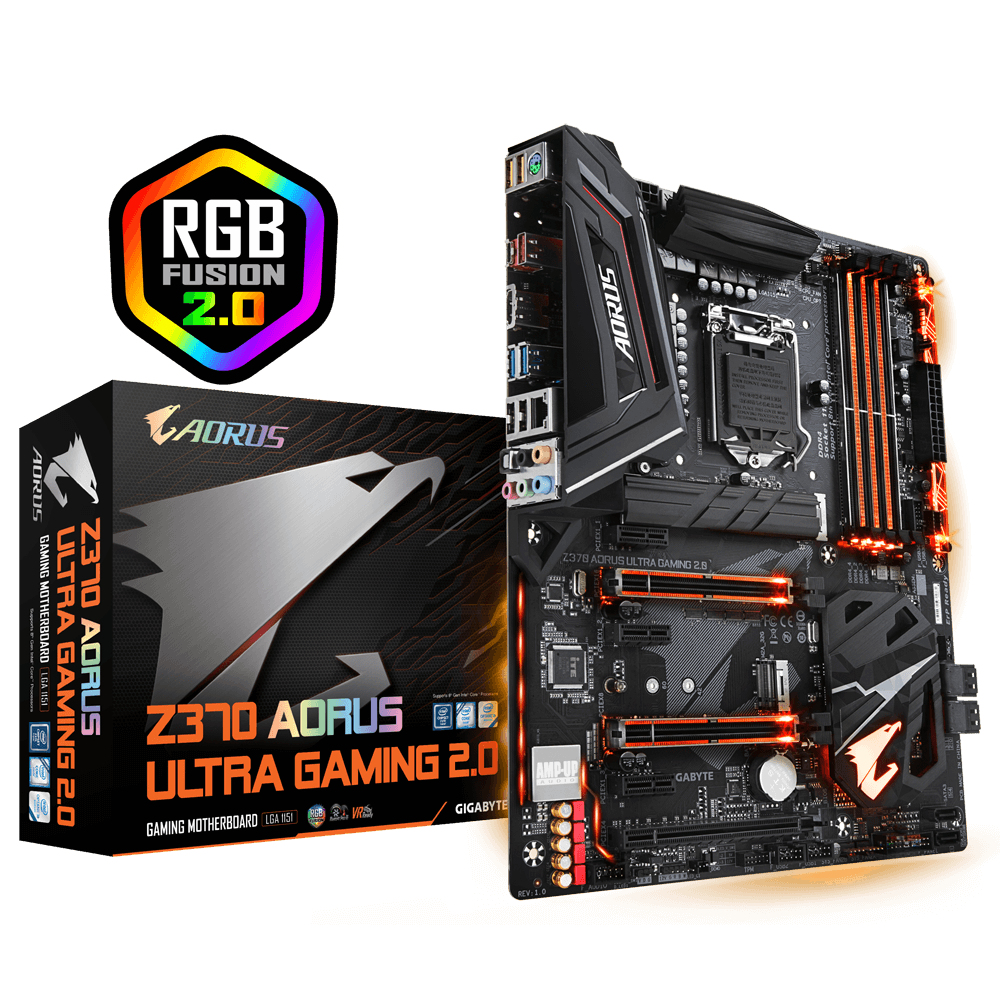

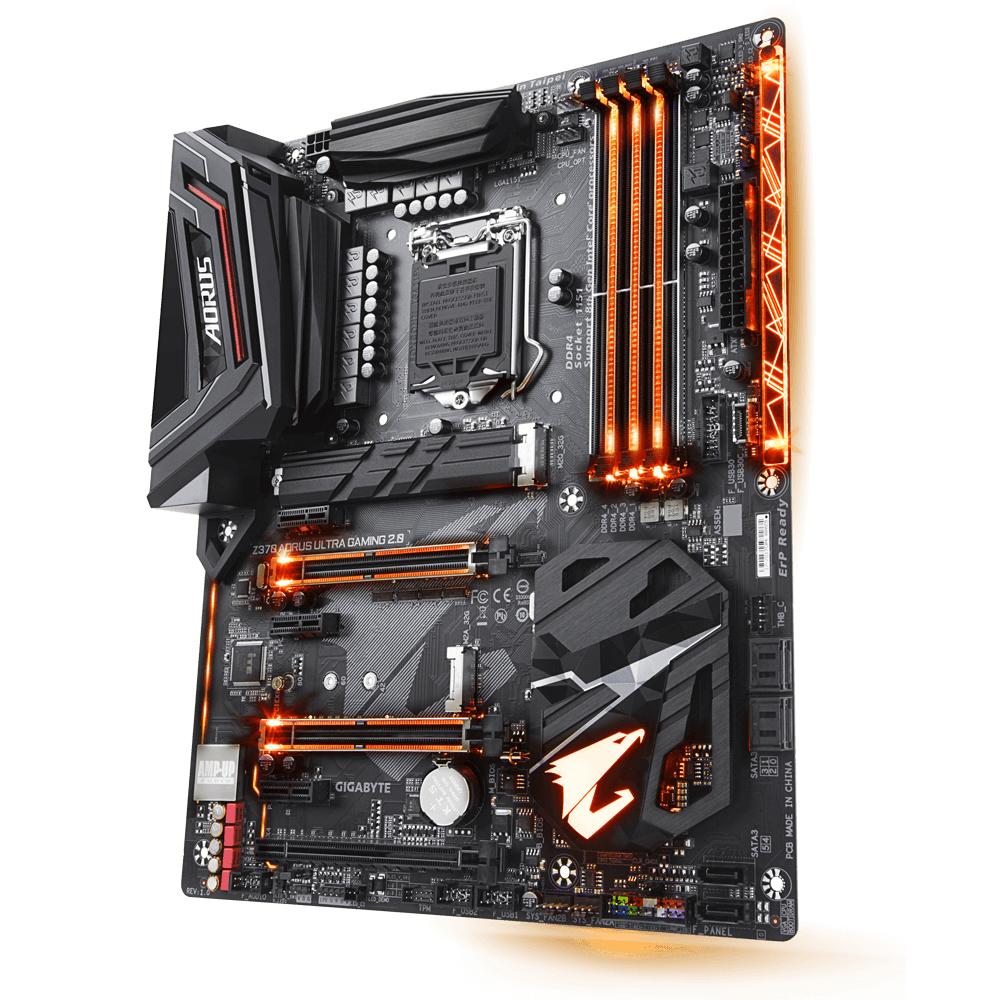

GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0)
Model Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0)Part no. Z370 AORUS ULTRA GAMING 2
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID supportYes
- USB 2.0 connectors4
- USB 2.0 ports quantity2
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID support
- Yes
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0)
- Part number
- Z370 AORUS ULTRA GAMING 2
- Also known as
- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) Intel® Z370 Express LGA 1151 (Socket H4) ATX
Specifications
62 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 4000 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | No |

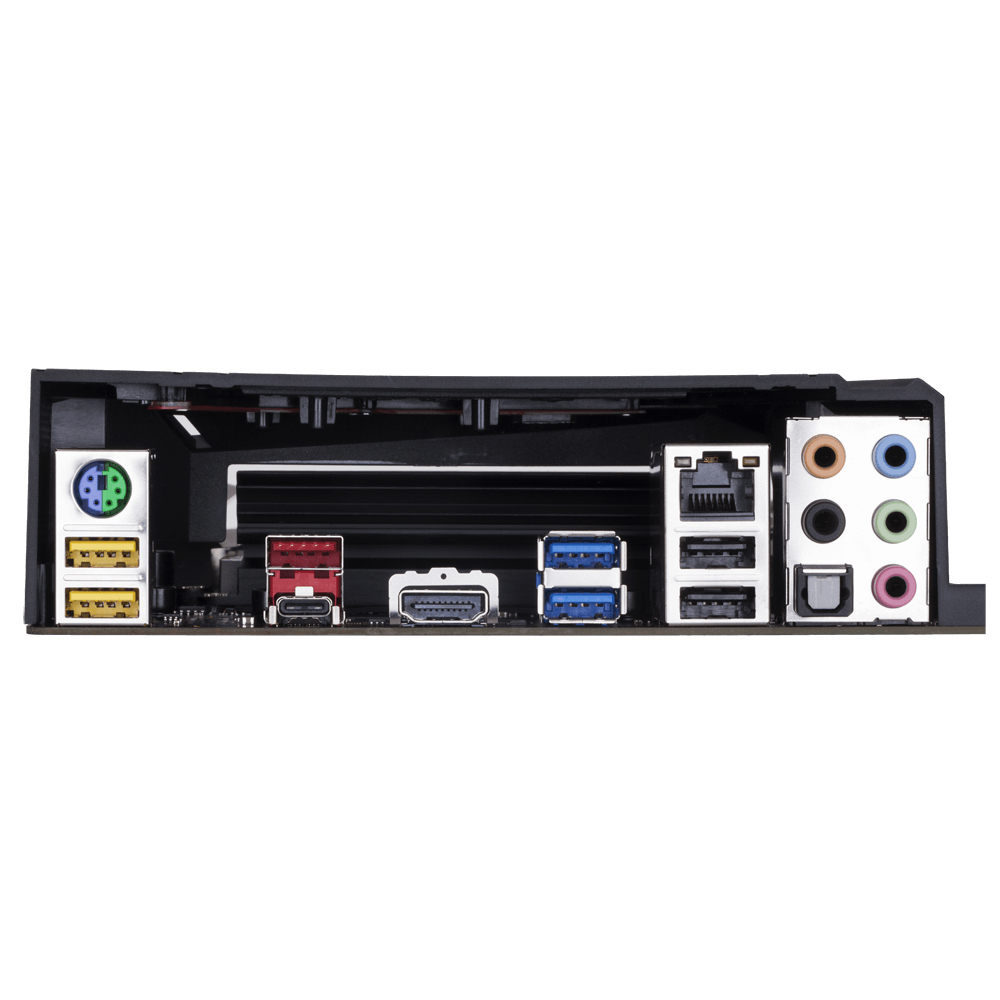

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Rear speaker out | Yes |
| Subwoofer out | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z370 Express |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30.5 mm |
| Depth | 244 mm |
Compare GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0)
Compare any products- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) vsGIGABYTE GA-B450M-DS3H V2 (AM4) (D)Compare specs

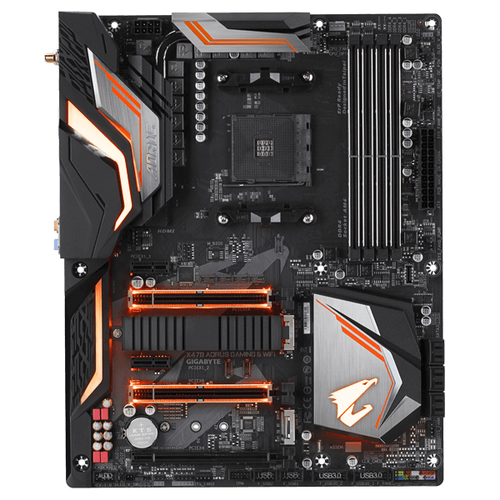

- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) vsGIGABYTE X470 AORUS GAMING 5 WIFI (rev. 1.0)Compare specs
- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) vsGIGABYTE B550 AORUS ELITE V2Compare specs
- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) vsGIGABYTE B550 AORUS ELITE AX V2Compare specs

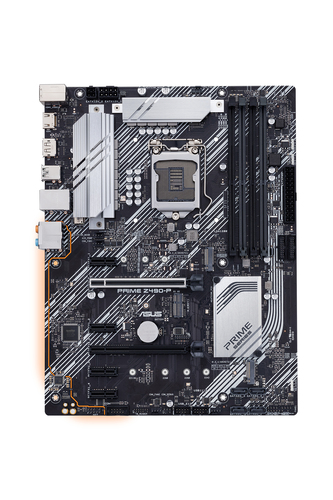

- GIGABYTE Z370 AORUS ULTRA GAMING 2.0 (rev. 1.0) vsASUS PRIME Z490-P/CSMCompare specs
